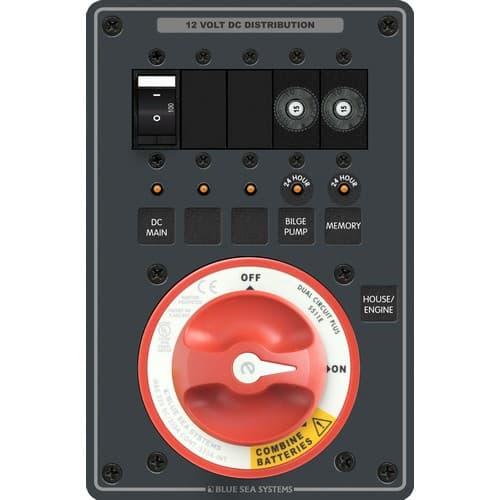

Blue Sea Systems, 8690, Dual Battery Bank Management Panel

Model: 8690
GTIN: 00632085086909
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: May 3rd - May 9th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$328.55 $252.73

Manufacturer Info

Other products

Features

Includes [1] e-Series, Dual Circuit Plus Battery Switch PN 5511e
Isolates Engine circuit from House circuit
Allows independent battery control
Allows emergency cross connect between isolated battery banks
The additionan Automatic Charging Relay (ACR) automates charging twobattery banks
Protects electronics from sags and spikes caused by engine cranking
Ignition protected - Safe for installation aboard gasoline-powered boats
Includes 4218 - Square Format Labels and 4140 - 24 Hour Round Labels
Cutout Templates
Cutout Templates

Specifications
Positions	5
Nominal Voltage	12V DC
Maximum Voltage	24V DC
Continuous Rating	350A
Intermittent Rating	525A (5 min)
Cranking Rating 10 sec	1000A
Cranking Rating 1 min	750A
Height	8.00in (203.2 mm)
Width	5.25in (133.35 mm)
Depth	3.50in (88.9 mm)
Weight	2.64lb (1.2 kg)

Included
Qty	PN	Product
1	5511e	e-Series Dual Circuit Plus Battery Switch
2	7056	Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps
1	7549	C-Series Flat Rocker Circuit Breaker - Single Pole 100A
