Blue Sea Systems, 5050, ST CLB Circuit Breaker Block - 6 Independent Circuits
The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 5050, ST CLB Circuit Breaker Block - 6 Independent Circuits

  • Model: 5050
  • GTIN: 00632085050504
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$96.95 $74.57

Manufacturer Info

(image for) Blue Sea Systems
ST CLB Circuit Breaker Block - 6 Independent Circuits

The advantage of a resettable circuit breaker over a fuse is well known however people find circuit breakers more expensive and difficult to install. The ST CLB Circuit Breaker Block solves this issue by using the compact, snap-in-place CLB resettable circuit breaker which makes breakers as easy to install as a fuse.

Features

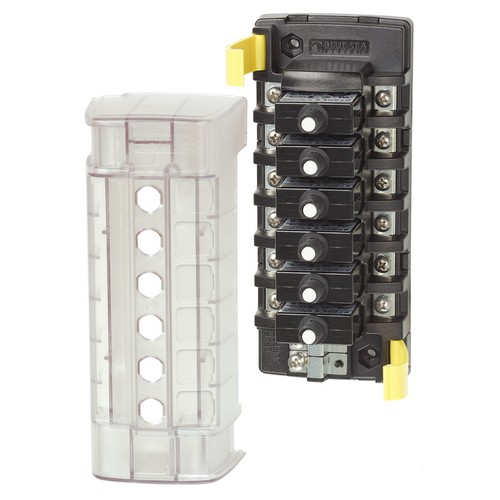

  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals

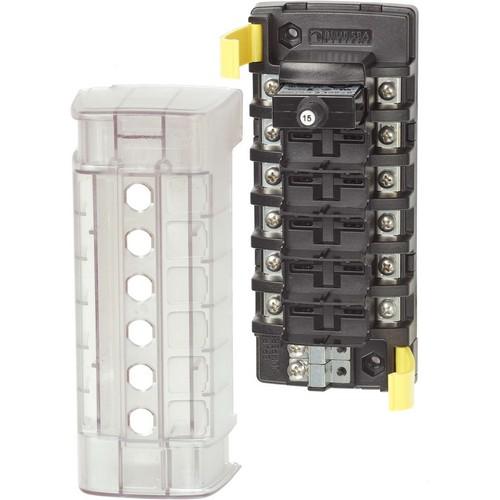

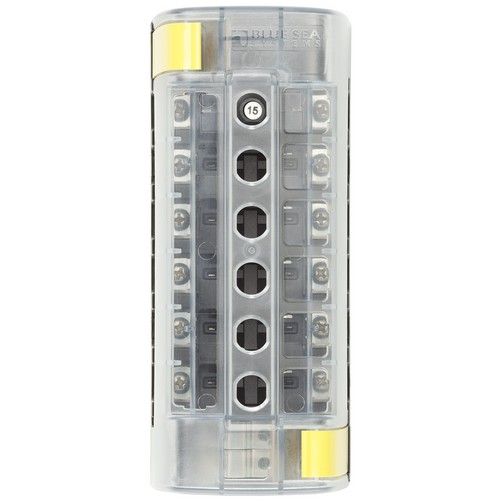

  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals

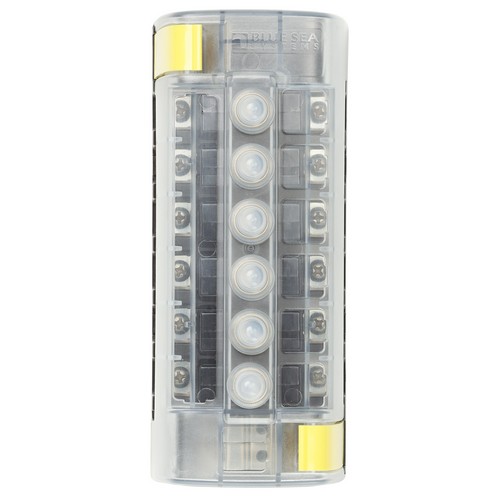

  • Optional push button waterproof boots or dress nuts can be installed over cover
  • Accepts square labels
  • Dimensioned Drawing | Download
Specifications
Circuits6
Maximum Amperage 32A (per circuit) 40A (per jumped circuit group)
Maximum Voltage32V DC
Mounting#8 Screw (M4) or #8 Nut
SourceIndependent Source
Minimum Operating Temperature-10° C
Maximum Operating Temperature60° C
Mounting Centers5.63in (143 mm)
Screw Terminal Type#8-32 Screws with Captive Star Lock Washer
Height6.69in (169.93 mm)
Weight0.75lb (0.34 kg)
Optional Accessories
4135 Push Button Reset Only Circuit Breaker Boot - Clear
4215 Waterproof DC Label Kit - 30 Black Square Labels V1
4216 Waterproof DC Label Kit - 60 Black Square Labels
4217 Waterproof DC Label Kit - 120 Black Square Labels
4218 Waterproof DC Label Kit - 30 Black Square Labels V2
5049 ST CLB Circuit Breaker Block Jumper
7050 Push Button Reset Only Quick Connect Circuit Breaker - 3 Amps
7052 Push Button Reset Only Quick Connect Circuit Breaker - 5 Amps
7053 Push Button Reset Only Quick Connect Circuit Breaker - 7 Amps
7054 Push Button Reset Only Quick Connect Circuit Breaker - 10 Amps
7056 Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps
7057 Push Button Reset Only Quick Connect Circuit Breaker - 20 Amps
7058 Push Button Reset Only Quick Connect Circuit Breaker - 25A
7059 Push Button Reset Only Quick Connect Circuit Breaker - 30 Amps
7061 Push Button Reset Only Quick Connect Circuit Breaker - 40A
