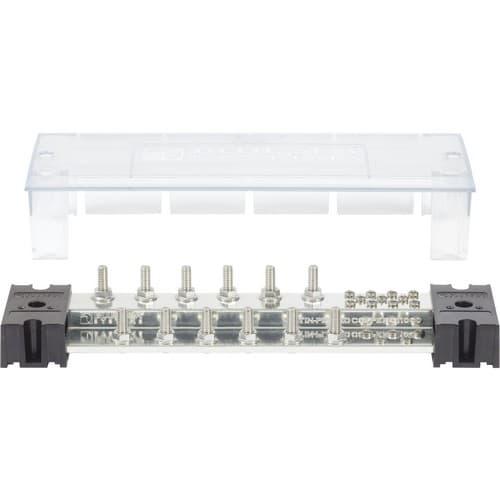

Blue Sea Systems, 1993, PowerBar 1000 - 12 5/16" Terminal Studs

Model: 1993
GTIN: 00632085019938
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: May 3rd - May 9th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$391.43 $301.10

Manufacturer Info

Other products

Complex wiring systems require a single point to consolidate large and small conductors. The PowerBar 1000 offers a 1,000 Ampbusbar with various size studs and screws to connect conductors and fuse blocks.

Features

1,000 Amp busbar for large complex wiring systems
Tin plated pure electrical copper for maximum conductivity
Stepped bus design offers two elevations for conductors which doubles the density of the wire loom compared to traditional bus bars
Busbar and fuse block elevations match common fuse blocks allowing for multiple fuse block attachment, eliminating the need for connecting cables
One-piece serrated flange nuts ensure correct and secure connections
Stainless steel 8-32 screws with captive lock washers for securingsmaller gauge wires
Busbar may be cut to a shorter length to accommodate constricted spaces
Bi-directional busbar end caps allow the ganging of additional busbars
Snap on insulating cover meets ABYC and USCG requirements andincludes label recess
Cutout Templates

Specifications
Maximum Voltage	150V
Number of Terminal Studs	12
Continuous Rating	1000A
Bus Material	Tin-Plated Copper C11000
Mounting Holes	Accepts #10 (M5) Screws
Terminal Stud Size	5/16" - 18
