500 Amp magnetic latching switch provides high amperageswitching under load, manually or from remote locations Features - Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 3 /8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7 /8" (22 mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
- Cutout Templates

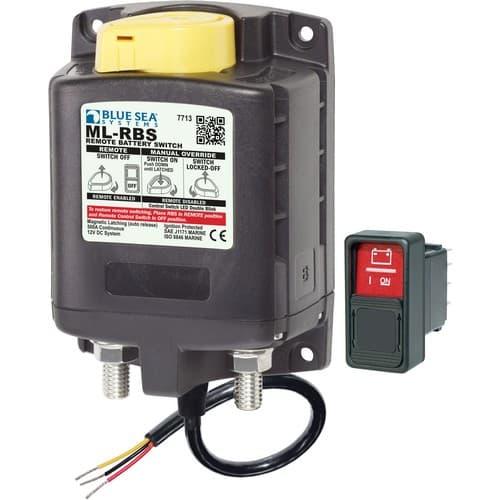

Auto Releasing ML-Series Remote Battery Switch with SPST SwitchingProvides 500A switching and features of current ML Remote Battery Switches,but can be controlled with SPST or SPDT switch for applications where a normallyopen relay is desired
| Specifications | | Control Circuit Connection | Tinned Wire |
| Nominal Voltage | 12V DC |
| Coil Function | Auto-Releasing |
| Mounting | #10 |
| Amperage Operating Current | 8mA when OFF13mA when ON |
| Amperage Operating Current when changing state | <7A (40 ms) |
| Terminal Stud Torque | 140 in-lb (15.82 Nm) |
| Control Circuit Voltage | 10.1 to 16.5V DC |
| Continuous Rating | 500A |
| Intermittent Rating | 700A (5 min) |
| Cranking Rating 30 sec | 1450A DC |
| Minimum Operating Temperature | -10 C |
| Maximum Operating Temperature | 50 C |
| Cable Size to Meet Ratings | 2x (4/0) |
| Live Current Switching | 300A @ 12V DC |
| Master Control Switch Capability | Yes |
| Mechanical Endurance | 100,000 Cycles |
| Terminal Ring Diameter Clearance | 1.18in (29.97 mm) |
| Terminal Stud Length | 0.875in (22.23 mm) |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Weight | 1.75lb (0.79 kg) |
| Included | | Qty | PN | Product |
| 1 | 2155 | SPDT Remote Control Contura Switch - ON-ON |
| Optional Accessories | | 1147 | Remote Control Panel |
| 1148 | Remote Control Panel |
| 9160 | ML Series Link Bus |
