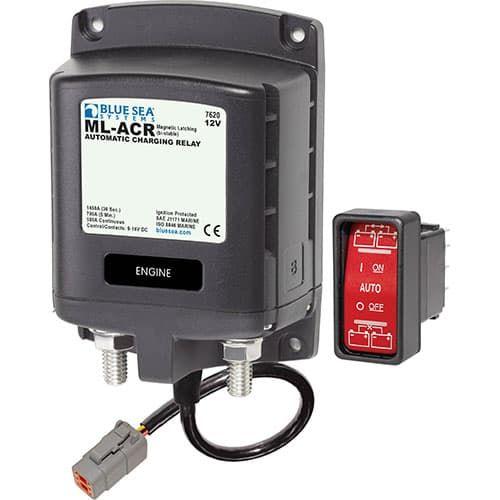

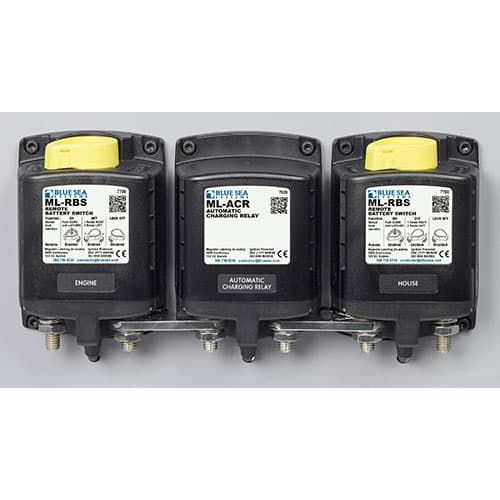

Blue Sea Systems, 7620100, ML-ACR Heavy Duty Automatic Charging Relay 12V

The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 7620100, ML-ACR Heavy Duty Automatic Charging Relay 12V

Model: 7620100
Manufactured by: Blue Sea Systems
Condition: New
Estimated Delivery: May 3rd - May 9th
Estimated Delivery: 1 to 2 Weeks
In Stock
Out of Stock
Lead Time To Ship May Vary

Price:

$342.54 $263.49

Manufacturer Info

Other products

500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine

Automatically manages the charging of two large battery banks
Allows paralleling of battery banks for emergency starting
500 Ampere continuous rating to support high-output alternators
Magnetic Latch (ML) - ACR draws very low current (<40mA to monitor terminal voltage) in the "ON" or "OFF" states, and draws moderate current for very short time when changing state
Dual sensing - senses charge on both battery banks
Start Isolation (SI) - can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
Engine Isolation (EI) - can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
Senses charging on two battery banks
LED output to remotely indicate when batteries are combined, isolated, in voltage lockout, or in Start or Engine isolation
3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
7/8" (22mm) stud length accepts multiple cable terminals
Silver alloy contacts provide high reliability for switching live loads
Label recesses for circuit identification
Wiring Diagram | Download
Dimension Drawing | Download
ML-ACR Troubleshooting Guide | Download
Instructions | Download

Specifications
Control Circuit Connection	Deutsch DTM
Nominal Voltage	12V DC
Manual Control	No
Engine Isolation	Yes
Mounting	#10
Start Assist	Yes
Start Isolation	Yes
Amperage Operating Current	13mA
Amperage Operating Current when changing state	<7.0A
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	500A
Intermittent Rating	700A (5 min)
Cranking Rating 30 sec	1450A DC
Cable Size to Meet Ratings	4/0 AWG x 2
Live Current Switching	300A @ 12V DC
Switching Cycles	100000
Terminal Ring Diameter Clearance	1.18in (29.97 mm)
Terminal Stud Length	1.50in (38.1 mm)
Terminal Stud Size	3/8" - 16 (M10)
