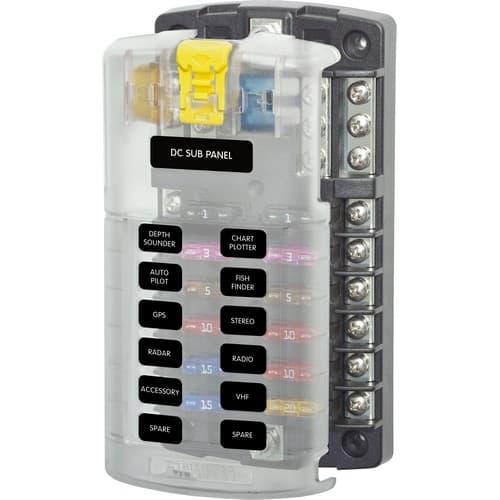

Blue Sea Systems, 5026, ST Blade Fuse Block - 12 Circuits with Negative Bus and Cover
The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 5026, ST Blade Fuse Block - 12 Circuits with Negative Bus and Cover

  • Model: 5026
  • GTIN: 00632085050269
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$97.19 $74.76

Manufacturer Info

(image for) Blue Sea Systems
Consolidates branch circuits and in-line fuses
  • Positive distribution bus with #10-32 stud
  • Can be used for 24-hour circuits
  • Models available with or without a cover

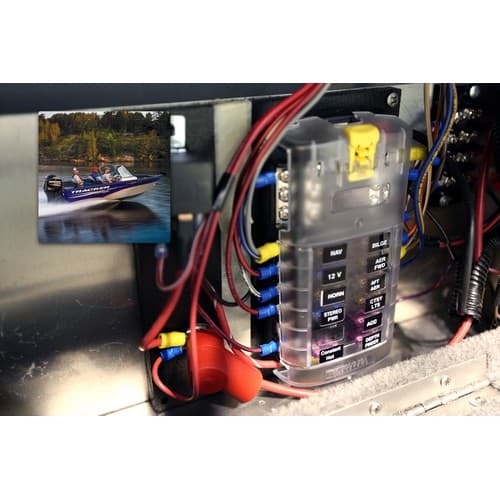

  • Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems" Small Format Labels for circuit identification
  • Fuse blocks with covers include 20 write-on circuit labels
  • Tin-plated copper buses and fuse clips
  • Accepts ring or snap fork type terminals
  • Accepts ATO and ATC fast acting blade fuses
  • Fuses sold separately
  • Wiring Schematic | Download

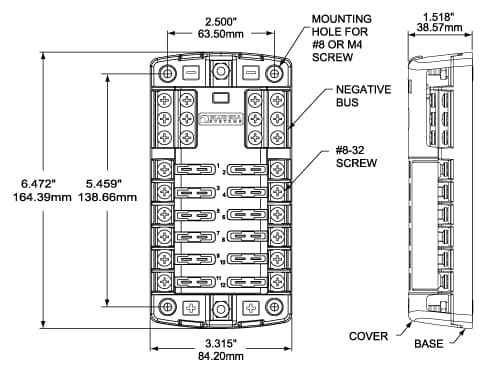

  • Dimensioned Drawing | Download
Specifications
Circuits12
Maximum Amperage 100A per block 30A per circuit
Maximum Voltage32V DC
Mounting#8 Screw (M4)
Negative Bus#10-32 Stud
Positive Bus#10-32 Stud
Recommended Torque24 in-lb (2.71 N·m)
Screw Terminal Torque18 in-lb (2.03 Nm)
Screw Terminal Type#8-32 Screws with captive star lock washer
Weight0.75lb (0.34 kg)
Optional Accessories
Any ATO-ATC Fuses
Any easyID Fuses
Any Small Labels
5287 ATC Fuse Kit - 6-Piece
5290 easyID Fuse Kit
Works With
4303WeatherDeck® 12V DC Waterproof Switch Panel - 2 Position
4305WeatherDeck® 12V DC Waterproof Switch Panel - 4 Position
4307WeatherDeck® 12V DC Waterproof Switch Panel - 6 Position
4309WeatherDeck® 12V DC Waterproof Switch Panel - 8 Position
Switching and Circuit Protection SubSystem

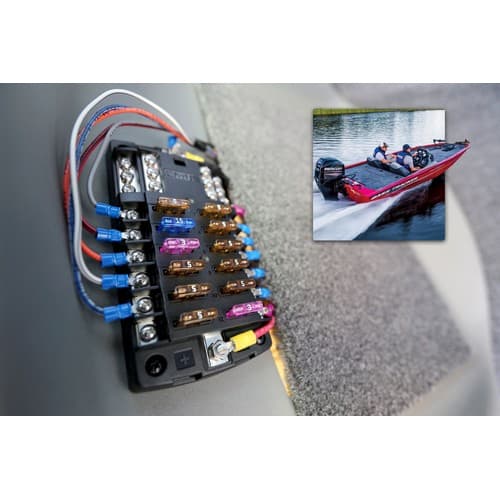

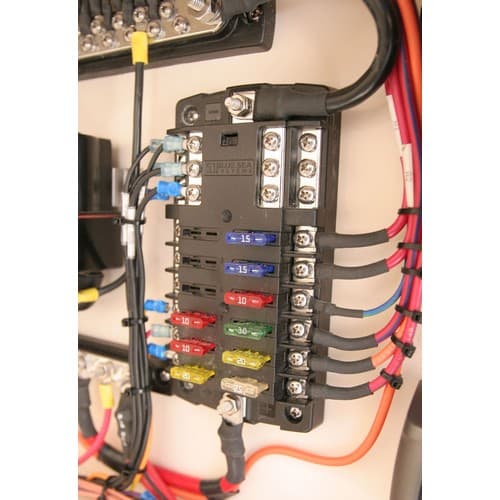

The ST Blade Fuse Block can offer a space saving and cost effective solution to adding circuit protection when there are limited available circuit breakers on the distribution panel. A single circuit breaker on a distribution panel can provide the circuit protection for the feed wire to the ST Blade Fuse Block. This is frequently done for electronics that each have their own ON-OFF switch and don’t require the switching offered by a circuit breaker. The 6 or 12 position ST Blade Fuse Block then provides a consolidated location for fuses for each of the electronics.
