Blue Sea Systems, 7725, SafetyHub 100 Fuse Block Blue Sea Systems, 7725, SafetyHub 100 Fuse Block Blue Sea Systems, 7725, SafetyHub 100 Fuse Block

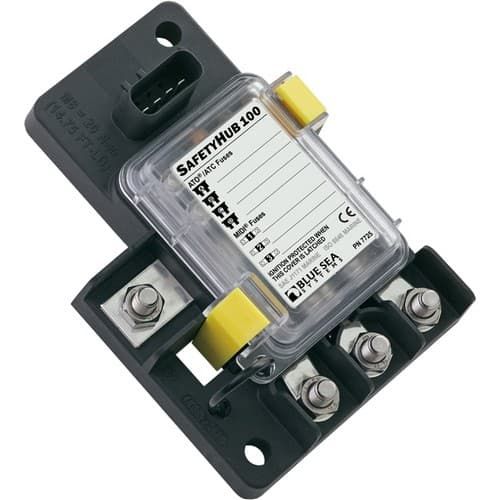

Blue Sea Systems, 7725, SafetyHub 100 Fuse Block
The images shown are for illustration purposes only and may not be an exact representation of the product

Blue Sea Systems, 7725, SafetyHub 100 Fuse Block

  • Model: 7725
  • GTIN: 00632085077259
  • Manufactured by: Blue Sea Systems
  • Condition: New
  • Estimated Delivery: 1 to 2 Weeks
  • Lead Time To Ship May Vary
Price:

$124.52 $95.79

Manufacturer Info

(image for) Blue Sea Systems
The SafetyHub 100 combines an ignition protected fuse block and an integrated connecting plug. It is safe for use on gasoline powered boats, reduces wiring connections, and consolidates up to seven fused circuits.
  • Three 30A - 200A MIDI/AMI fuses sold separately ideal for high-amp circuits including panel feeds, windlasses, and stereo amplifiers
  • Four 1A - 20A ATO/ATC fuses sold separately ideal for circuits including bilge pumps, alarms, and clock memory

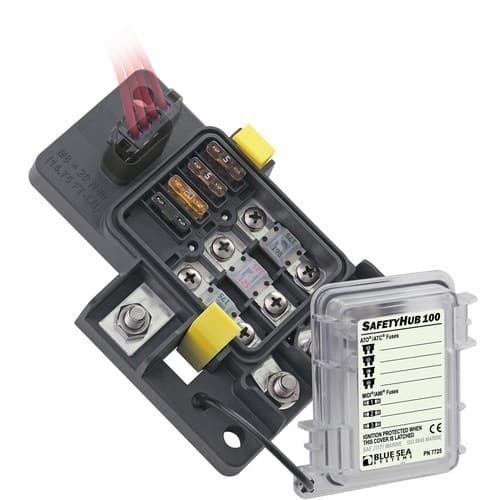

  • Sealed cover protects fuses from the harsh marine environment: IP66 rating - protected against powerful water jets
  • Integrated connector plugs eliminate loose wires and provide a secure, waterproof connection
  • Ignition protected fusing meets Coast Guard and ABYC requirements for installation on gasoline or diesel powered boats
  • Instructions

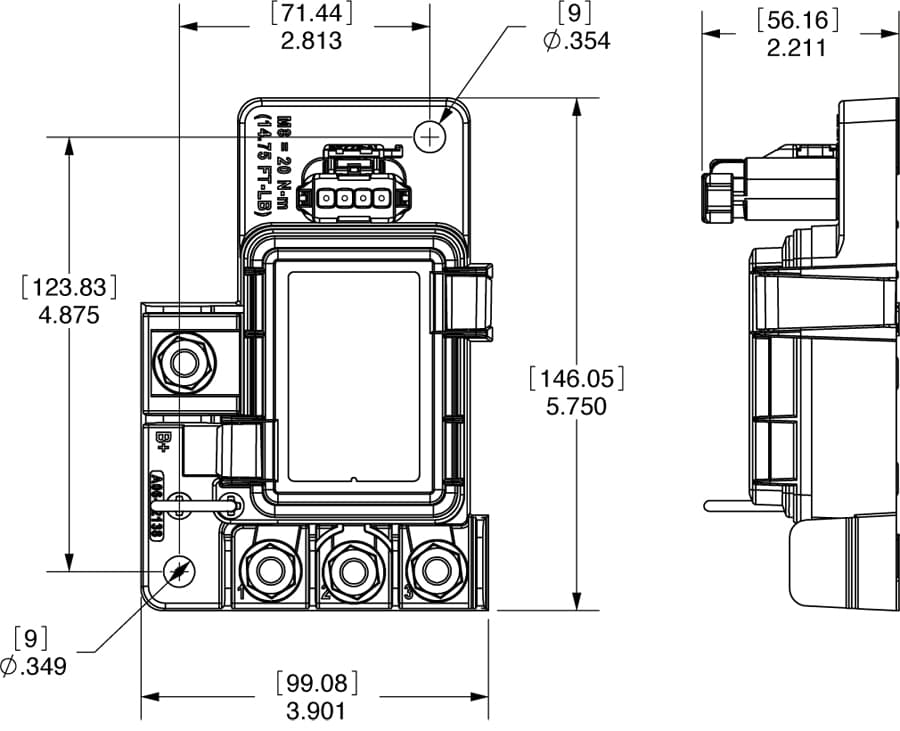

  • Dimensioned Drawing
Specifications
Circuits7
Stud SizeM8 x 1.25
Operating Voltage12V24V32V
Amperage Maximum Operating - combined280A
Recommended Ring TerminalM8 (5/16")
Screw Torque, 8-3218in-lb (2.03 Nm)
Screw Torque, M527in-lb (3.05 Nm)
Stud Torque180 in-lb (20.34 Nm)
Weight3.20lb (1.45 kg)
