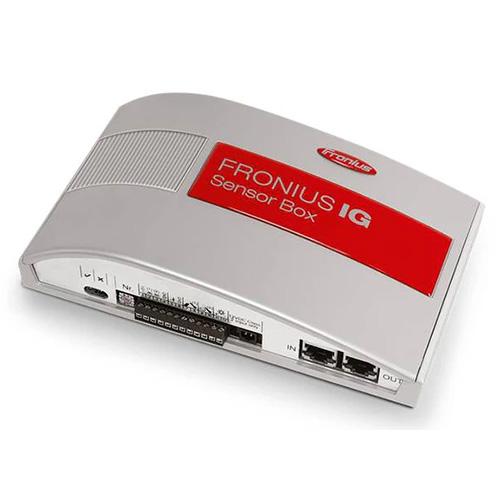

Fronius Sensor Card / Box With the Fronius Sensor Card / Box, up to six sensors for measuring insolation, ambient temperature, module temperature, wind speed, etc. can be integrated into the Fronius DATCOM system. Using the insolation and module temperature data, you are able to check your PV system and quickly identify anomalies in the system output to keep performance at a consistently high level. You can choose between a box and a card
The Fronius Sensor Card / Box offers inputs for up to six measuring signals. - Two analogue inputs for two temperature sensors
- One analogue input for evaluating a voltage signal (e.g. an insolation sensor)
- Two digital inputs, e.g. for an energy meter and a wind speed sensor.
- One analogue input for evaluating a current signal (0 to 20 mA, 4 to 20 mA)
- Product Specifications | Download
In addition to the Fronius Sensor Card / Box, a Fronius Datamanager is required for evaluating the data. This is either fitted as standard in the inverter or can be easily retrofitted.
Fronius Sensors Fronius provides ready-made sensors for measuring insolation, ambient temperature, module temperature and wind speed. These, combined with the Fronius Sensor Card / Box and Fronius Solar.web, allow for a target/actual comparison of the system output. Up to six sensors can be connected to each Fronius Sensor Card / Box and integrated into the Fronius DATCOM system.
Fronius insolation Sensor - For measuring the radiated energy.
Fronius Ambient Temperature Sensor - For measuring the ambient temperature.
Fronius Module Temperature Sensor - For measuring the module temperature.
Fronius Wind Speed Sensor - For measuring the wind speed.
