Features - DSP Controlled
- Built-in AC Bypass
- Overload Protected
- Short Circuit Protected
- Programmable Frequency
- Over Temperature Protected
- Programmable Output Voltage
- Built-in GFCI (disabled by default)
- Programmable Low Voltage Shutdown
- Five year parts and labour warranty
- Download IPSi1205 Series Datasheet | Download

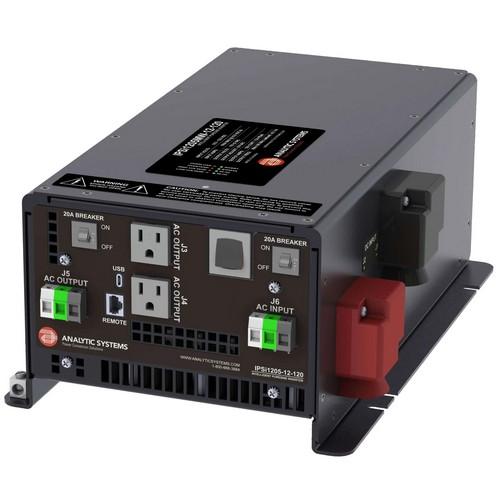

The IPSi1205 Series Puresine Inverter delivers reliable power for sensitive AC loads in harsh environments. Controlled by a sophisticated Digital Signal Processor (DSP), it ensures optimal performance and efficiency. Power MOSFET transistors and a durable toroidal transformer generate AC voltage from DC input, while advanced filtering minimizes EMI noise, safeguarding communication equipment.
Key safety features include low voltage warnings, high voltage and over-temperature shutdowns, with alarms displayed on a bright LED indicator and optionally mirrored on a remote control panel (contact Sales for details). The included Off-Line UPS option allows external AC to be routed through the inverter to the load; the inverter will take over supplying the load only if the external AC fails.
With the optional 'Inverter Wizard' software, users can fine-tune output frequency, voltage, and alarm parameters via a MicroUSB connection, as well as monitor and log operational data using a Windows laptop.
| Function | Inverter |
| Conversion | DC to AC |
| Power (Watts) | 1200 |
| Input Volts | 10.5 – 18 VDC |
| Output Volts | 120 VAC |
| Output Amps Continuous | 10 |
| Output Amps Peak | 12 |
| Input/Output Isolation | Yes |
| Technology | Digital |
| Product Series on website | IPSi1205 |
| Option Codes | OPT-G: Ground Fault Protection, OPT-U: Safety Special Inspection (CSA/SPE-1000), OPT-X: Ruggedized & Wide Temp |
| Specialization | Commercial/Industrial |
