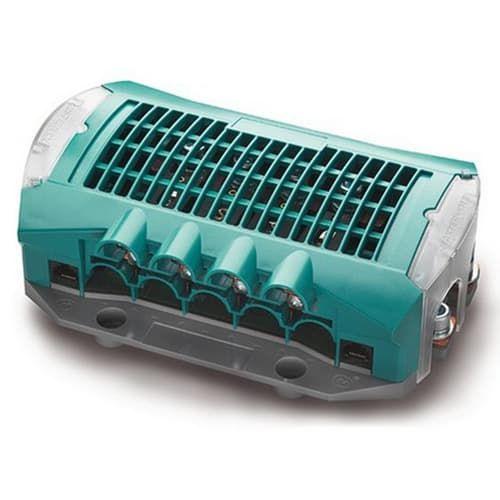

The DC Distribution 500 is the smallest distribution model available. It connects up to four DC devices to the DC groups such as a battery charger inverter alternators and solar panels. With the included plug & play cable it can be easily connected to the MasterBus network. The MasterView panel gives all fuses logical names to ensure you receive understandable error notifications (for example charger fuse defect).
| | |
| General specifications | General specifications |
| Battery voltage | 12 24 or 48 V DC |
| MasterBus powering | no |
| Dimensions hxwxd | 150 x 216 x 65 mm 5.9 x 8.5 x 2.6 inch |
| Weight | 1.2 kg 2.6 lb |
| Current | 300 A cont. / 500 A for 5 minutes |
| Standard fuses | 80 80 125 160 A - ANL-type (deviating values can be ordered separately) |
| Spare fuse | 125 A - ANL-type |
| Alarms | fuse monitoring |
| MasterBus supported languages | ENG NL DE SP IT FRA FIN SWE DEN NOR |
| Delivered with | 5 fuses hex tool MasterBus Terminator MasterBus cable cable protections |
| Technical specifications | Technical specifications |
| Protection degree | IP21 |
