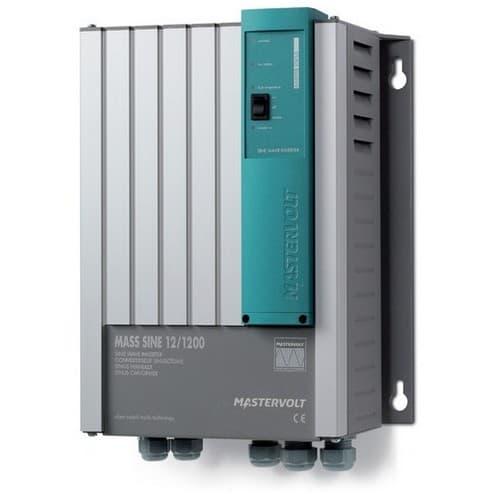

Mass battery chargers sine wave inverters and DC-DC converters are designed for the toughest conditions for professional semi-professional and recreational purposes. Even under the most extreme conditions the products from the Mass series operate faultlessly giving you round-the-clock output when necessary. The sustainability and technologies that underpin the Mass concept have long been proven in practice. With an MTBF of 280000 hours at full capacity and 24/7 use the Mass products are ideal for the toughest tasks and any situation that requires a reliable power supply. You can always rely on their proven and technically advanced components.

Making the best even better

The reliability and long lifespan of Mastervolt s battery chargers sine wave inverters and DC-DC converters have been established beyond doubt over the past decade. While the Mass products have evolved with the latest technological developments the dimensions and connections have remained the same. As a result it is exceptionally easy to replace one unit with another with only negligible downtime.

Mastervolt Green by Heart

As part of our constant search for eco-friendly and long-lasting solutions Mastervolt has developed the Green by Heart programme. Its impact on the Mass battery chargers Mass Sine inverters and Mac & Magic DC-DC converters include:

• An exceptionally effective use of the consumed input current (cos phi) > 0.98!
• Faster charging of batteries even with when the input current is limited.
• Use of top quality components with a long lifespan.
• Savings in weight and space.
• Fewer installation materials.
• Product Specifications | Download

General specifications		General specifications
Output voltage ( 5%)	230 V 50 Hz ( 0.01 Hz)
Output waveform	true sine
Nom. battery voltage	12 V
P30 power at 40 C cos phi 1	1200 W
Cont. power at 40 C cos phi 1	1000 W
Peak load	2400 W
AC connection	internal
Efficiency	92 %
Display/read-out	LED display
Min. battery capacity	> 150 Ah
Dimensions hxwxd	340 x 261 x 130 mm 13.4 x 10.3 x 5.1 inch
Weight	8 kg 17.6 lb
Approvals	CE E-mark ABYC A-31
Technical specifications		Technical specifications
Technology	HF switch mode
Low battery voltage switches off at	10 V 0.5 V
Low battery voltage switches on at	11 V 0.5 V
High battery voltage switches off at	15.5 V 0.5 V
High battery voltage switches on at	14.5 V 0.5 V
Max. ripple on DC (battery)	5% RMS
Input current (nominal load)	110 A
No-load power consumption (ON mode)	450 mA 5 W
No-load power consumption (standby mode)	43 mA 0.5 W
Min. DC fuse (slow blow)	150 A
Min. cable size	50 mm
Harmonic distortion typical	< 5%
Cos phi	all power factors allowed
Transfer system	the Masterswitch and Systemswitch can be connected to all sine wave inverters
Temperature range (ambient temp.)	-25 C to 80 C derating > 40 C -13 to 176 F
Cooling	natural/forced
Sound level	48 dBA at 1 mtr
Protection degree	IP23
Protections	over temperature over load short circuit high battery low battery
MasterBus compatible	yes using a MasterBus Inverter Interface or AC power analyser
