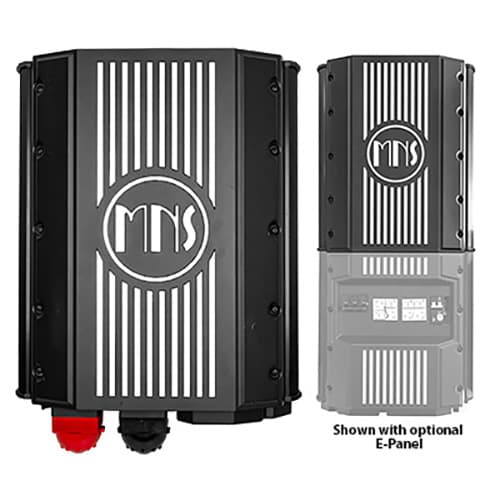

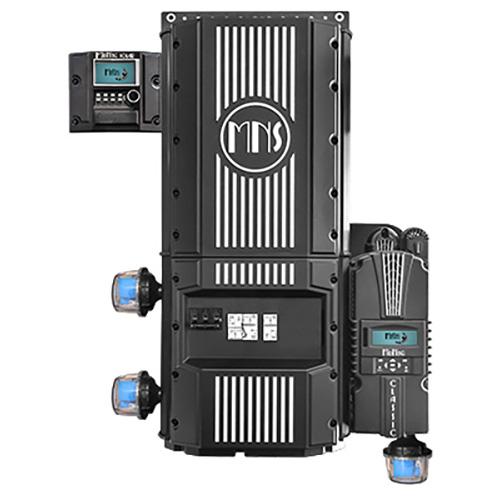

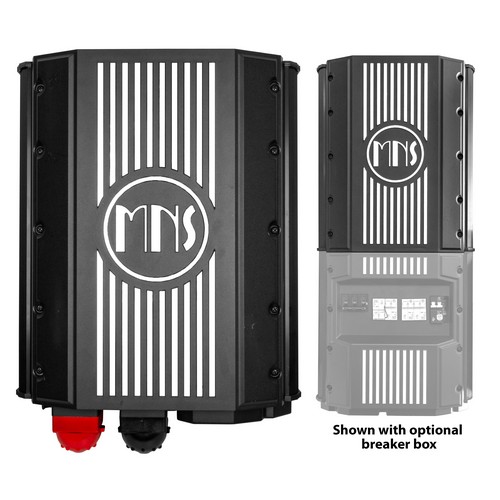

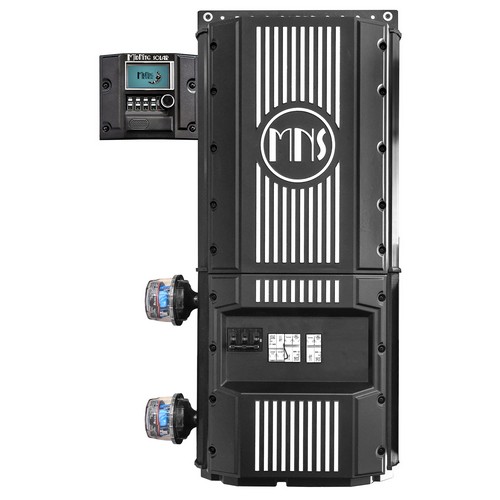

Midnite Solar, MNROSIE7048-2CL200-PW, Prewired Rosie with 2 Classic 200s. The Rosie Pre-wired Systems were designed by MidNite Solar's engineers with over 100 years of renewable energy off-grid experience. The Rosie Pre-wired Systems have a high frequency, high power design that is light weight and provides pure sine wave power!
The images shown are for illustration purposes only and may not be an exact representation of the product

Midnite Solar, MNROSIE7048-2CL200-PW, Prewired Rosie with 2 Classic 200s. The Rosie Pre-wired Systems were designed by MidNite Solar's engineers with over 100 years of renewable energy off-grid experience. The Rosie Pre-wired Systems have a high frequency, high power design that is light weight and provides pure sine wave power!

  • Model: MNROSIE7048-2CL200-PW
  • Manufactured by: Midnite Solar
  • Condition: New
  • Estimated Delivery: May 10th - May 16th
  • In Stock
Price:

$9,771.58 $7,516.60

Manufacturer Info

(image for) Midnite Solar
The Rosie Pre-wired Systems were designed by MidNite Solar's engineers with over 100 years of renewable energy off-grid experience. The Rosie Pre-wired Systems have a high frequency, high power design that is light weight and provides pure sine wave powe

Features
  • 7000 watts / 48 volt DC
  • Extremely lite weight
  • Rosie Inverter: 42 lbs.
  • Rosie E-panel: 21 lbs.
  • Rosie Backpanel: 8 lbs.
  • Includes 2 MNSPD-300-AC for Rosie and an additional MNSPD-300-DC per Classic installed
  • 2 aux input/outputs
  • 120/240 Vac output
  • True sine wave inverter with charger
  • Zero transfer time
  • Quiet forced air cooling
  • State Of Charge monitoring with MidNite Wizbang Jr. and MNGP2 display
  • Die cast aluminum enclosure
  • Auto gen start (two-wire generators)
  • Battery Temperature Sensor included
  • Remote battery voltage senser
  • Canbus communication
  • Lithium compatible
  • 60A transfer relay
  • Screened (gecko/mud dauber proof)
  • Listed UL1741 and CSA NOTE: CSA pending on breaker boxes
  • Designed and built in Arlington, WA USA
Rosie - Classic200 Pre-wired System - MNROSIE7048-CL200-PW
Output power (continuous) at 25°C 7000VA
Overload 30 min sec at 25°C 8400VA
Output power (continuous) at 40°C 6000VA
Maximum output current 60 seconds (RMS) 88A
Maximum surge 15,000VA
Output frequency / voltage 60Hz/Output voltage 120 or 120/240VAC
Total harmonic distortion at rated power <5%
Consumption 30 Watts without search and 7 watts with search
Input DC voltage range 40 to 65VDC
Maximum solar charge 86/78/55A
Maximum charge from AC source 120A (Can be combined with solar charging)
Charge control Two or Three stage charging
Warranty 7 years
