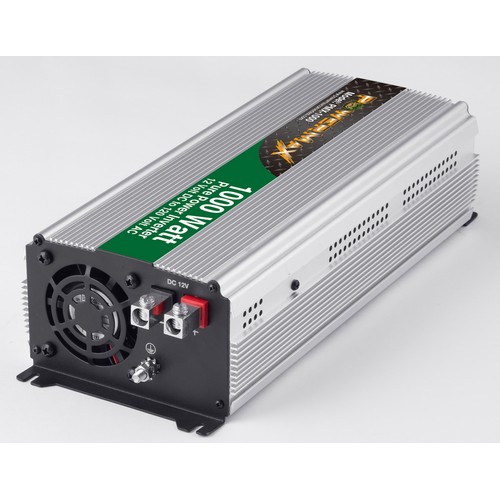

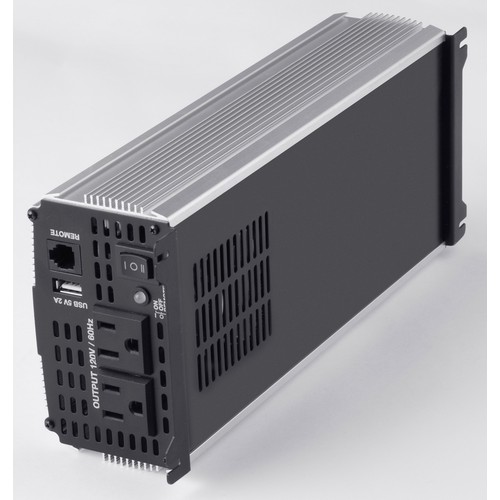

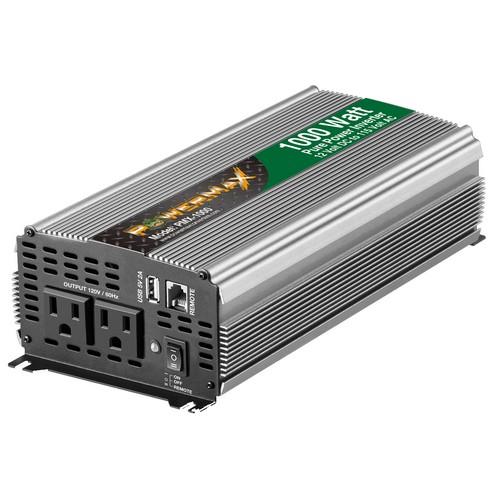

PMX 1000W-PSW InverterFeatures - Inverts 12V DC to 120V AC
- Maximum continuous Output Power 1000 Watt
- Meets 120V AC electronic appliance safety operating standard.
- It can be used to power most electronic appliances or equipment.
The PowerMax PMX series of Power Inverters are designed to provide clean 120 Volt AC Power from a 12V battery or bank for many applications. Our PowerMax Inverters provide a Pure Sine Wave output which is essential to efficiently running a wide variety of sensitive electronic devices such as Office Equipment, Computer, Power Tools, Kitchen appliances, Microwaves and Home Electronics like TV, Stereo?s and more.
These are a must-have item for any Motorhome to run the 110V equipment when camping off-grid without a 110Vac supply.
Specifications - MAX continuous Output Power: 1000 Watts
- Peak Output: 2000 Watts (0.3 sec)
- DC Input Static Current (No Load): ? 1.5 Amp
- AC Output Wave Form: Pure Sine Wave
- Low Voltage Alarm: 10.5 ? 0.5V
- Low Voltage Cut Off Level: 10.5V
- Auto-reset after shut-down: 12 V ?0.5V
- High Voltage Cut Off Level: 15V-16.5V
- Output AC Voltage: AC 115V ? 10% RMS
- Output Frequency Level: 60 ? 1Hz
- Overload Power Range: 1000 Watts +5-30%

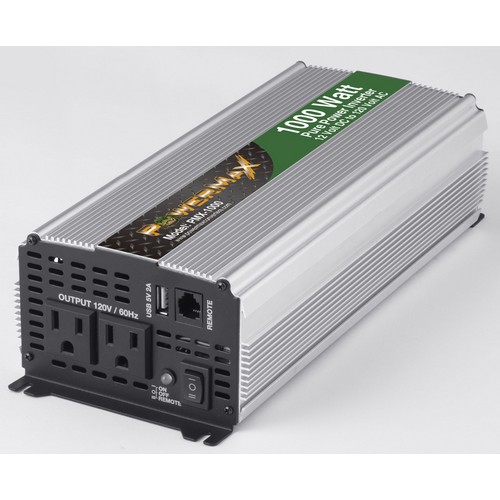

- 2 x AC Outlets (1 x GFCI)
- USB Power Port Output V/A: DC 4.7-5.3V / 2100mA
- Dimensions: W - 8.25? L - 10.5? H - 3.75?
- Full Load Optimum Efficiency: ? 85%
- AC Output Short Circuit Protection: system shut down (no damage)
- Temperature Protection: ? 65?C
- Cooling Fan: depend on inner temperature rising above ? 45?C
- LED Indicators: normal/Green, fault/Red

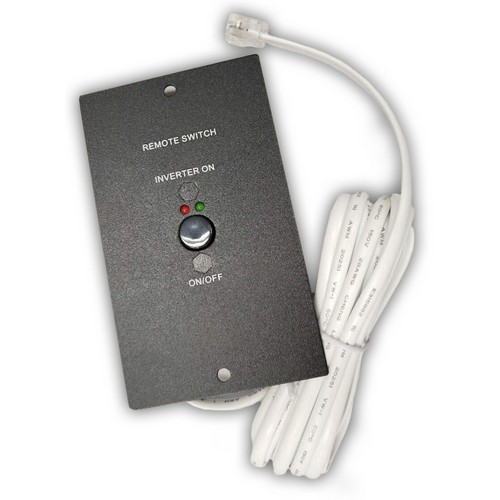

- Remote Control Feature: Yes, available separately
- PMX-1000W-PSW Full Specification | Download
- PMX Series - Information Sheet | Download
- PMX Series - Owners Manual | Download
