The images shown are for illustration purposes only and may not be an exact representation of the product

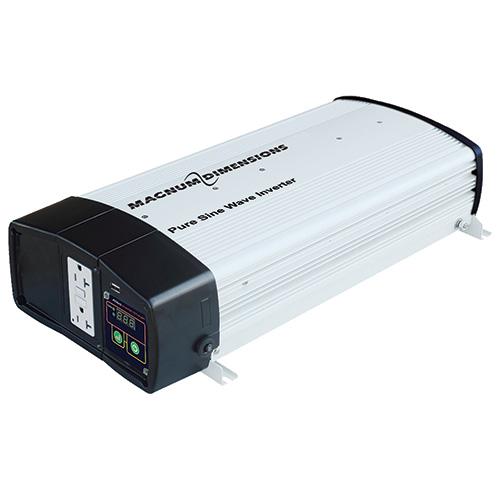

Magnum Energy, CSW2012-HX, 2000W 12VDC Pure Sine Inverter CSW-X Series

Model: CSW2012-HX
Manufactured by: Magnum Energy
Condition: New
Estimated Delivery: Oct 23rd - Oct 29th
In Stock
Out of Stock

Price:

$917.15 $705.50

Would you like to add these items to your order?

	Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable $368.44 $339.47	Add Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable to cart
	Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version $331.49 $254.99	Add Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version to cart
	Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt) $253.31 $194.85	Add Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt) to cart

Manufacturer Info

Other products

CSW2012-X (CSW2012-HX, CSW2012-HMWX)

The Magnum-Dimensions CSW Series inverter from Sensata Technologies is a pure sine wave inverter designed to be powerful, yet simple to operate. The CSW will provide you with reliable AC power for troublefree use.

Download Owners Manual | Download
Manual Addendum CSW2012-HX | Download

Output Power	2,000W
Peak Watts	4,000W
Warranty	1 Year
Output Voltage	120 VAC
Output Current	16.7 amps
Output Waveform	Pure Sine
Output Frequency	60 Hz
Input Voltage	12
Operating Temp	0°C to +40°C [32°F to 104°F]
Efficiency	> 90%
Weight	11.5 lb [5.2 kg] (2012-X: 13.0 lb [5.9 kg])
Dimensions	16.5” x 9.1” x 4.3” [41.9 cm x 23.1 cm x 10.9 cm]
UL Certified	Yes
Phase	Single
Topology	High Frequency
Input Battery Voltage Range	10.5 - 15.5
