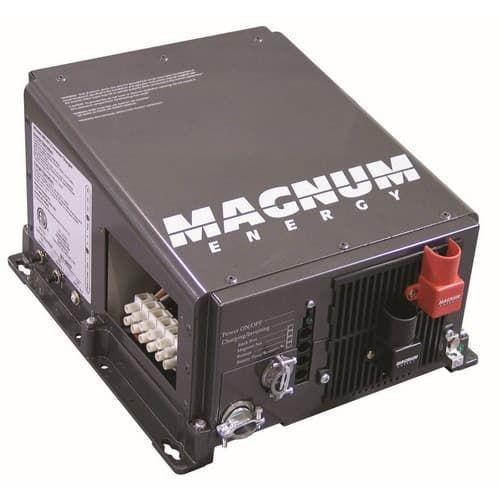

Magnum Energy, ME2012-20B-U, 2000 Watt, 12V Inverter/100 Amp PFC Charger/2-20A AC Breakers

Model: ME2012-20B-U
GTIN: 00892608001561
Manufactured by: Magnum Energy
Condition: New
Estimated Delivery: Oct 23rd - Oct 29th
This product is currently on backorder.
Expected Ship Date: Saturday 01 November, 2025
In Stock
Out of Stock

Price:

$2,006.21 $1,543.24

Would you like to add these items to your order?

	Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt) $253.31 $194.85	Add Magnum Energy, ME-BMK-R-L, Battery Monitoring Kit - Battery State of Charge Meter (Includes 500A/50mV DC Shunt) to cart
	Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable $368.44 $339.47	Add Magnum Energy, ME-ARC50-L, Advanced Remote Digital LCD Display Remote Panel with 50' Cable to cart
	Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version $331.49 $254.99	Add Magnum Energy, ME-AGS-N, Automatic Generator Start Module 3-relay with Voltage and Temp Start/Network Version to cart

Manufacturer Info

Other products

2000W 12VDC Modified Sine Inverter Charger ME Series
ME2012 (ME2012-U, ME2012-F, ME2012-20B-U)

The ME Series Inverter / Charger from Magnum Energy is a modified sine wave inverter designed specifically for rugged mobile applications. The ME Series is powerful, easy-to-use, and best of all, cost effective.

Safe and reliable: The ME Series is ETL Listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01, ensuring that the inverter is safe and reliable.

Download Owners Manual | Download
Download Spec Sheet | Download
3D Images | Download

Remote Panel

ME-ARC, ME-RC, MM-RC

Input Current

15 Amps AC

Output Current

100 ADC

Output Power	2,000W
Peak Watts	3,700W
Warranty	3 Years
Output Voltage	120 VAC
Output Current	16.7 amps
Output Waveform	Modified Sine
Output Frequency	60 Hz
Input Voltage	12
Operating Temp	-20° C to +60° C (-4° F to 140° F)
Efficiency	95%
Weight	37 lb (16.8 kg)
Dimensions	13.75” x 12.65” x 8.0” (34.9 cm x 32.1 cm x 20.3 cm)
UL Certified	Yes
Phase	Single
Topology	Low Frequency
Input Battery Voltage Range	9-16
