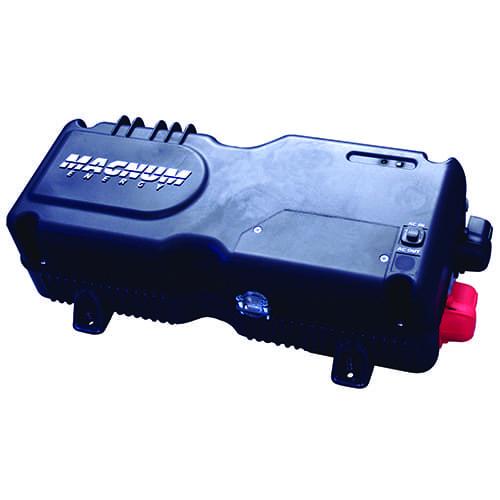

Magnum Energy now offers the MM-E Series Inverter/Charger for 230 VAC / 50 Hz installations. The MM-E Series comes with all of the features youve come to expect from a Magnum product, including:
Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter chargers.It uses less energy from a generator than a standard charger using 25-30% less AC current than standard chargers.
Battery temp sensor: The standard battery temp sensor monitors temperatures from 0 50C.
Convenient switches: All models come with an on/off inverter-mounted switch with an easy-to-read LED indicator.
Features - Attractive styling
- Fan cooled
- Versatile mounting
- Battery and inverter protection
- Product Manual | Download
- Product Specifications | Download
Available For - Renewable Energy Systems
- Off-grid Power
- Back-up Power
| Output Power | 1,300W |
|---|
| Peak Watts | 2,600W |
|---|
| Warranty | 2 Years |
|---|
| Output Voltage | 220 VAC |
|---|
| Output Peak | 14amps |
|---|
| Output Current | 6amps |
|---|
| Output Waveform | Quasi Sine |
|---|
| Output Frequency | 50 Hz |
|---|
| Input Voltage | 24 |
|---|
| Continuous Output Amps | 6amps |
|---|
| Operating Temp | -20 C to +60 C (-4 F to 140 F) |
|---|
| Efficiency | 87% |
|---|
| Weight | 23 lb (10.4 kg) |
|---|
| Dimensions | 15.0" x 6.5" x 5.0" (38.1 cm x 16.5 cm x 12.7 cm) |
|---|
| UL Certified | No |
|---|
| Phase | Single |
|---|
| Topology | Low Frequency |
|---|
| Input Voltage Range | 18-32 |
|---|
