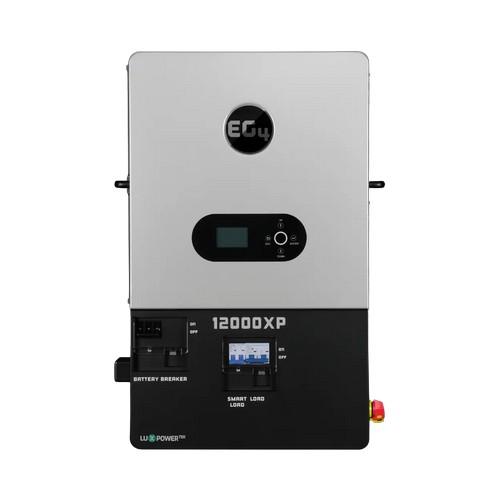

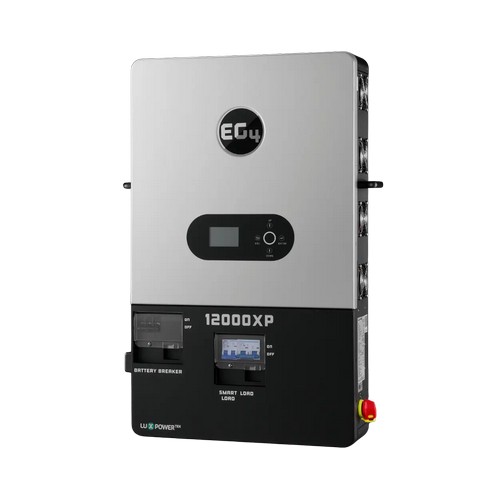

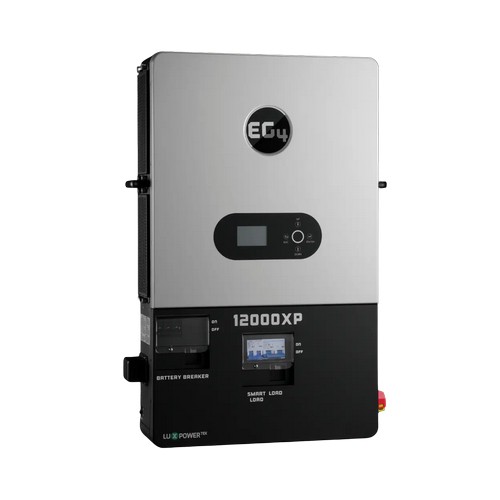

EG4 12000XPThe EG4 12000XP is a 12kW AC, split-phase, all-in-one off-grid inverter with grid charge capability, designed for residential and small commercial use. It supports 24kW of solar PV through two 35 Amp MPPTs, model #: IV-12000-XP-IN-1 generating up to 12kW of power @120/240 VAC and model #: IV-15000-XP-IN-1 generating up to 15kW of power @120/240 VAC while allowing 24kW (100 Amps) from the grid input or 90 Amps from a generator. With a 100 Amp bypass for seamless power transitions, the 12000XP ensures reliable operation off-grid or during outages.
Equipped with a generator port, the 12000XP features 2-wire start/stop auto-start and a programmable Smart Port for smart load control or AC coupling. Model #: IV-12000-XP-IN-1 can be paralleled with up to 16 units for 192 kWs. Model #: IV-15000-XP-IN-1 can be paralleled with up to 16 units for 240 kWs. It’s a cost-effective solution for those not requiring grid sellback and with EG4 batteries, provides true whole-home backup.
UL 9540 pending for model #: IV-15000-XP-IN-1
Features & BenefitsHigh Capacity Boasts one of the largest usable PV inputs on the market
Power Distribution Provides 24kW PV input, model #: IV-12000-XP-IN-1 12kW max power output and model #: IV-15000-XP-IN-1 15kW max power output with solar and battery power present
Robust Start Capability Can start a 5-ton AC without a soft start

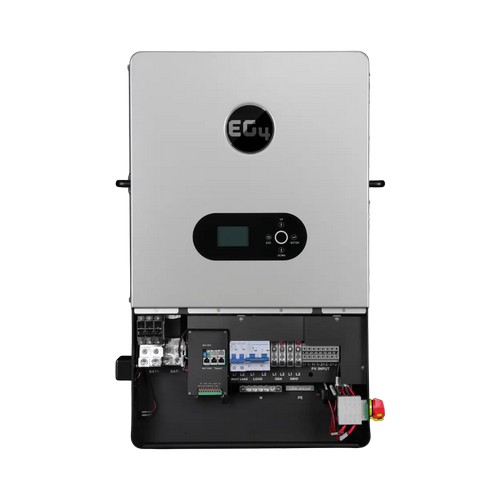

Programmable Port Flexibility Separate ports for generator, AC coupling, and smart loads
Key Specifications - Model #: IV-12000-XP-IN-1 Max output: 12kW
- Model #: IV-15000-XP-IN-1 Max output: 15kW with solar and battery present
- Number of MPPTs: 35A/35A, gives flexibility of 2 strings per input
- Max generator input: 63A
- Max grid passthrough: 100A (AC Grid output 50A @ 240VAC)
- Dimensions: 34.3×20.9×5.9 in.
- Weight: 104.7 lbs.
- Warranty: 5-years
- EG4 12000XP – Manual v1.1.9 | Download
- EG4 12000XP – Spec Sheet v1.2.6 | Download
