Go Power, GP-SW1500-TS, Pure Sine Wave Inverter & Transfer Switch

Model: GP-SW1500-TS
GTIN: 00839085007563
Manufactured by: Go Power
Condition: New
Estimated Delivery: May 3rd - May 9th
In Stock
Out of Stock

Price:

$960.56 $738.89

Manufacturer Info

Other products

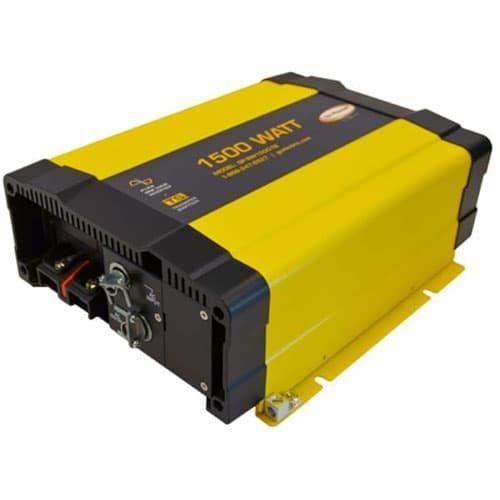

1500-watt Pure Sine Inverter & Transfer Switch
GP-SW1500-TS

1500-watt Pure Sine Wave Inverter and 20-amp Transfer Switch in one compact unit

MODEL: GP-SW1500-TS
Go Power!'s GP-SW1500-TS pure sine wave inverter with transfer switch provides robust cUL certified AC power with a built-in 20-amp transfer switch

Run more circuits: microwave, TV, outlets, etc.
Perfect replica of AC power
Built-in 20 amp Transfer Switch
Can use a solar controller to turn on and off (GP-PWM-30)
2-year warranty
Run 1500 watts of power from battery
Durable, low profile design
User Manual (GP-SW1500-TS) | Download
Spec Sheet (GP-SW1500-TS) | Download

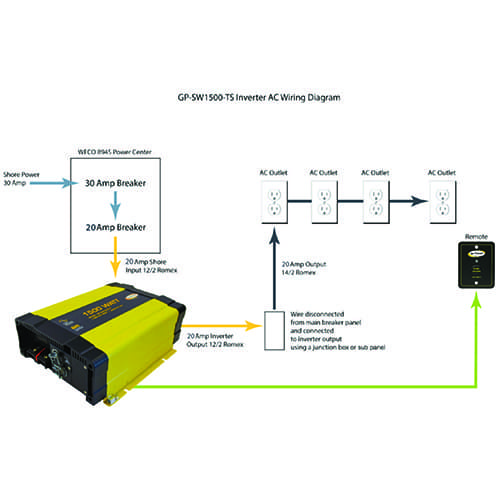

Wiring Diagram (GP-SW1500-TS) | Download

DC Voltage	12VDC
Voltage Range	10.0 ~ 16.0VDC
No Load Current	< 0.9A
Continuous Output Power	1500W (de-rating after 40 C, refer to de-rating curve)
Surge Power (<0.2Sec)	2400W
Peak Power (<3 Min)	1800-2400W
Output Power (<3 Min)	1500-1800W
Frequency	50 / 60 Hz 0.1%
Output Voltage	100 / 110 / 115 / 120VAC 3%
Efficiency Max.	88%
Output Waveform	Pure Sine Wave
Circuit Breaker	20A
Transfer Switch	Standard ATS : Inverter to utility AC: <5ms.; Utility AC to inverter. <10ms.
BAT.Low Alarm 3%	10.5VDC
BAT.Low Shut-down 3%	10.0VDC
Input Protection	Reverse Polarity (Fuse) / Under Voltage / Over Voltage Protection / AC over current (Breaker)
Output Protection	Short Circuit / Overload / Over Temperature / Over Voltage
Operating Temp.	-20 C~40 C refer to GP-SW1500TS power de-rating curve
Storage Temp.	-40 C~70 C
Relative Humidity	Max. 90%, non-condensing
Regulations and Safety	Certified UL 458 (6th Edition), Certified FCC class B
Dimensions (L x W x H)	283x128x351 mm / 11.14x5.04x13.82 inch
