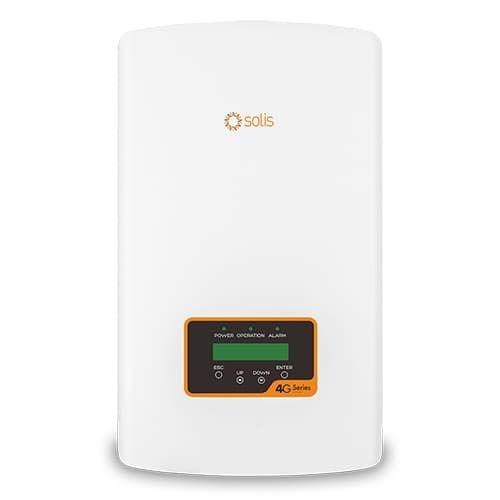

Solis-1P(2.5-6)K-4G 2.5K/3K/3.6K/4K/4.6K/5K/6K Solis-(2.5-6)kW-4G Single phase series string inverter's efficiency of has improved dramatically, which could increasethe amount of electricity generated and recover investment returns more quickly.Solis-(2.5-6)kW-4G series are suitable for the installation of single-phase input pv system of different types, residential,commercial and industrial and adopt ultra-high switching frequency, ultra-thin single four-layer board design can greatly reduce the risk caused by the connector. The EPM can be equipped with built-in counter-current controller, which supports multiple communication modes such as RS485, WIFI, GPRS, Ethernet and so on. Real-time monitoring and information control can be realized.
2.5-6kW 4G Single Phase Inverter Leading Features - Intergrated Export Power Manager(EPM)
- Over 98.1% Max.efficiency
- Dual MPPT design with precise MPPT algorithm
- High Frequency Switching -Smaller,smarter
- RS485,WIFI/LAN/GPRS (optional)interface
- Datasheet_Solis-1P(2.5-6)K-4G | Download
- Solis_Manual_(2.5-6)K_4G_ENX_V2.7 | Download
| Input DC | Recommended max. PV power | 4.2 kW | Max. input voltage | 600 V |
| Rated voltage | 330 V | Start-up voltage | 120 V |
| MPPT voltage range | 90-520 V | Max. input current | 11 A / 11 A |
| Max. short circuit current | 17.2 A / 17.2 A | MPPT number | 2 |
| Max. input strings number | 2 | | |
| Output AC | Rated output power | 3.6 kW | Max. apparent output power | 4 kVA |
| Max. output power | 4 kW | Rated grid voltage | 1/N/PE, 220 V / 230 V |
| Rated grid frequency | 50 Hz / 60 Hz | Rated grid output current | 16.0 A / 15.7 A |
| Max. output current | 16.0 A | Power Factor | >0.99 (0.8 leading - 0.8 lagging) |
| THDi | <3% | | |
| Efficiency | Max. efficiency | 97.8% | EU efficiency | 97.1% |
| Protection | DC reverse-polarity protection | Yes | Short circuit protection | Yes |
| Output over current protection | Yes | Surge protection | Yes |
| Grid monitoring | Yes | Anti-islanding protection | Yes |
| Temperature protection | Yes | Integrated DC switch | Optional |
| Integrated AFCI (DC arc-fault circuit protection) | Yes (activation required) | | |
| General Data | Dimensions (W*H*D) | 310*543*160 mm | Weight | 11.5 kg |
| Topology | Transformerless | Self consumption (night) | <1 W |
| Operating ambient temperature range | -25 ~ +60C | Relative humidity | 0-100% |
| Ingress protection | IP65 | Cooling concept | Natural convection |
| Max. operation altitude | 4000 m | Grid connection standard | VDE-AR-N 4105, VDE V 0124, VDE V 0126-1-1, UTE C15-712-1, NRS 097-1-2, G98, G99, EN 50549-1/-2, RD 1699, UNE 206006, UNE 206007-1, IEC 61727 |
| Safety/EMC standard | IEC 62109-1/-2, IEC 62116, EN 61000-6-2/-3 | | |
| Features | DC connection | MC4 connector | AC connection | Quick connection plug |
| Display | LCD | Communication | RS485, Optional |
