Kisae Technology, SCD1230, 30A Charge Controller with Digital Display

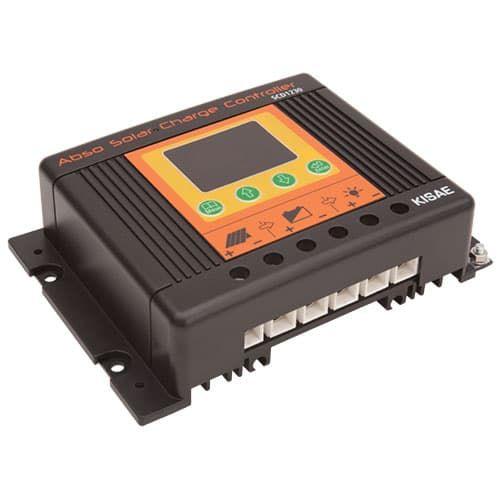

The images shown are for illustration purposes only and may not be an exact representation of the product

Kisae Technology, SCD1230, 30A Charge Controller with Digital Display

  • Model: SCD1230
  • Manufactured by: Kisae Technology
  • Condition: New
  • Estimated Delivery: May 3rd - May 9th
  • In Stock
Price:

$81.90 $63.00

Manufacturer Info

(image for) Kisae Technology
SCD-1230 Solar Charge Controller

KISAE SCD-1230 Solar Charge Controllers provide
  • Maintenance-free protection for your batteries and solar panels in off-grid applications.
  • A regulated output to prevent batteries from overcharging.
  • Batteries protection from being over-discharged with Load Disconnect.
  • Quick reference to Charger, Battery and Load status with LED status indicators.
  • Manual | Download
  • System Diagram | Download
  • SCD-1230LD | Download
Features and Benefits
  • PWM Controller models capable up to 30 Amps of Array Current or up to 720 Watts of solar power.
  • Maintains batteries in a fully charged state.
  • Protects battery life from overcharging and discharging.
  • LED Digital Display shows charging and load currents and battery voltage.
  • 2-Year Warranty
PWM Solar Charge Controller SC1230LD
PV Input
PV Input Voltage Range 14.5 - 48V
Max. PV Input Current 30A
PV Solar Panel Rating (reference) 12V: 360W, 24V: 720W
Solar Controller Output (Battery)
Battery Rating 12V / 24V (Auto Detect)
Battery Type Gel, AGM, Flooded, Lithium, Program
Max. Charge Current 30A
Charge Voltage Range 13.9 - 14.6V / 27.8 - 29.2V
Float Voltage Range 13.4 - 13.8V / 26.6 - 27.6V
Parasitic Current <25mA
DC Output to Load
Load Current (Maximum) 30A
Protection and Features
PV Reverse Polarity Protected
Battery Overcharge Yes
Load Over-discharge Voltage < 11.5V / 23.0V
Load Reconnected Voltage 12.6V / 25.2V
Built-in Temperature Sensor Yes, temperature compensation on charging voltage
Indicator (SC Series) / Digital Display (SCD Series)
Battery Charging Status Voltage / Current / Stage
DC Load Status Load Current
DC Load Timer Built-in clock for load ON/OFF
Enclosure
Weight 1.0 lbs
Dimension 4.7 x 6.7 x 1.8"
