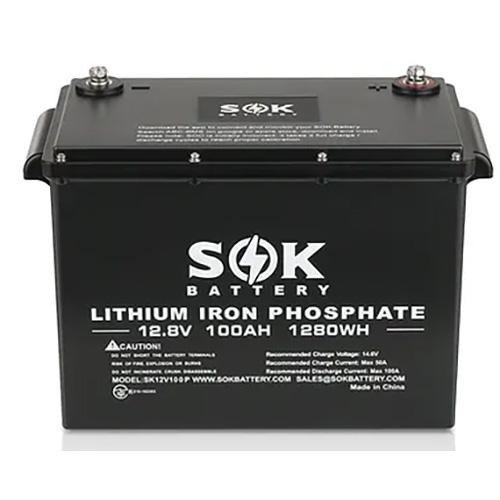

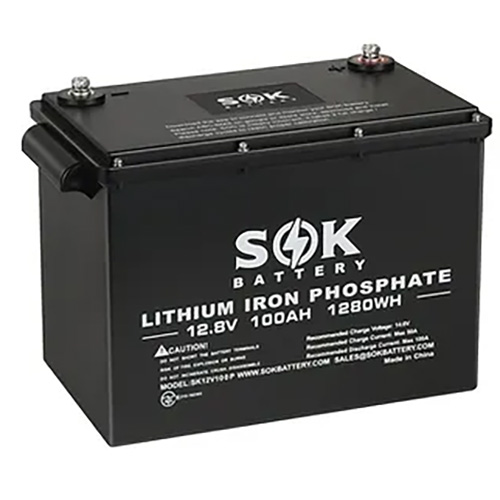

SOK Lithium Iron Phosphate 12V 100Ah Battery,Marine Grade- SOK Lithium Iron Phosphate 12V 100Ah Battery,Marine Grade
- Latest V8 version Bluetooth BMS, top battery cells balance function.
- Support connect in series and in parallel.
7 Years Warranty,4000~8000 Cycles Life Span,Free Maintenance.
Detachable Cover,Replaceable BMS or Cells.
Connect in series for 24V or 36V or 48V Battery Bank, or Connect in Parallel for Larger Capacity.
Built-in Smart Battery Management System.
Low Temperature Charging Cut-off.
High Temperature Charging or Discharging Cut-off.
Over Charging or Discharging Protection.
Over Current & Short Circuit Protection.
Battery Cells Auto Balance.
Notice for connect in series: If you need connect batteries in series, they should be at the same state-of-charge (SOC)before they are connected.
Charge information- Recommended Charge Current 20 A
- Maximum Charge Current 50 A
- Recommended Charge Voltage 14.6 V
- SK12V100P.pdf | Download
- SOK BATTERY MANUAL 2(1).pdf | Download
- SK12V100P Size information.pdf | Download
Discharge information- Maximum Continuous Discharge Current 100 A
- Peak Discharge Current 200 A (3 s)
- Recommended Low Voltage Disconnect 10.4V
Size Information- Terminal Type: M8, 5/16 lugs
- Weight: 27 lbs.
Temperature Information- Discharge Temperature -4 to 140 F
- Charge Temperature -4 to 113 F
- Storage Temperature 23 to 95 F
Certifications Information- UL1973&IEC62619 for Battery cells.
