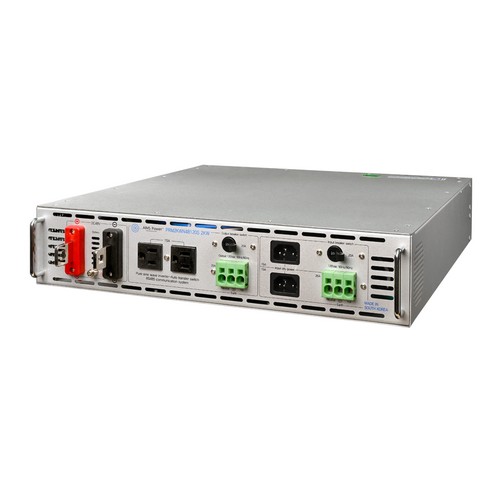

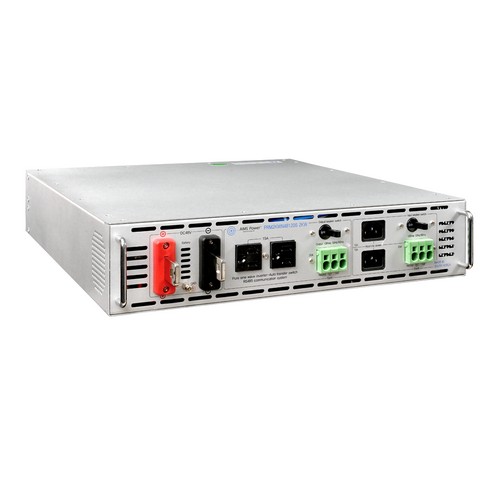

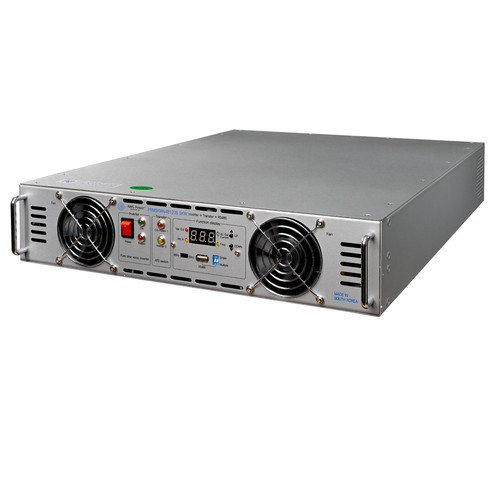

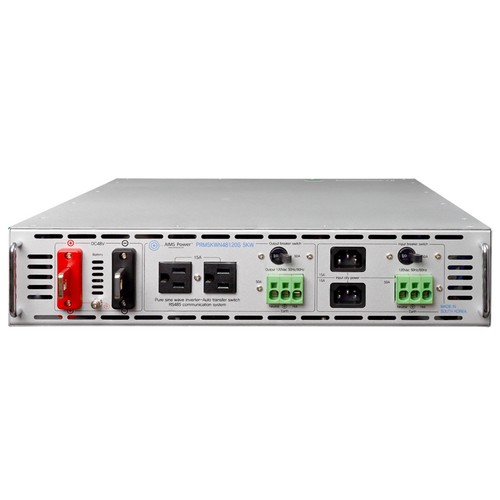

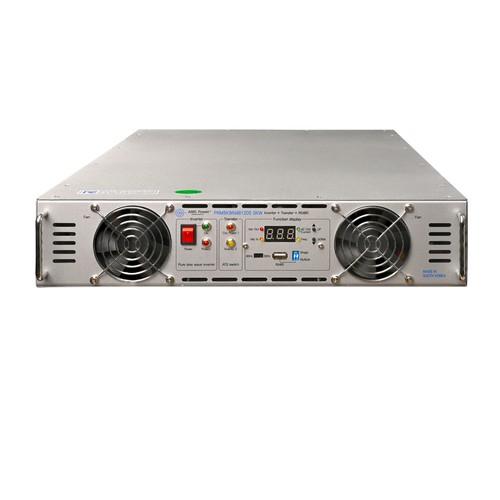

5000 Watt NEGATIVE 48 Volt Rack Mount Inverter To 120 Volt AC ????? 2U (-48V) -48 Volt Rack Mount Power InverterEnsure uninterrupted power with our advanced NEGATIVE 48V, 2U rackmount inverter, designed for telecom and data centers. Ideal for providing backup power to your essential equipment, this inverter generates 5000W of high-quality pure sine power at a stable 120Vac output. Thanks to the built-in 70 Amp transfer switch with a typical transfer time of less than 20ms, power is maintained seamlessly to your equipment. When city/utility power is available, it bypasses to provide consistent power. During outages, the inverter automatically switches to the backup DC power source, supplying power as long as the DC power supply provides enough voltage.
Monitoring is a breeze with the RS485 communication port, which offers real-time insights into DC input voltage, AC output voltage, frequency, and amps. Unmatched reliability, effortless integration, and consistent power supply ensure our rackmount inverter is the perfect solution for any setting where uninterrupted power is essential.
Features - 5000W continuous power, NEGATIVE 48 volt to 120 volt
- Pure sine wave
- 2U Rackmount
- FCC Class B

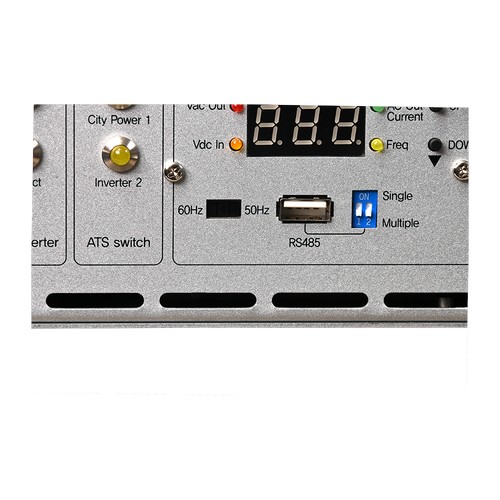

- RS485 Communication Port ????? Monitored from a PC
- Input dc voltage
- Output ac voltage
- Frequency
- AC Current

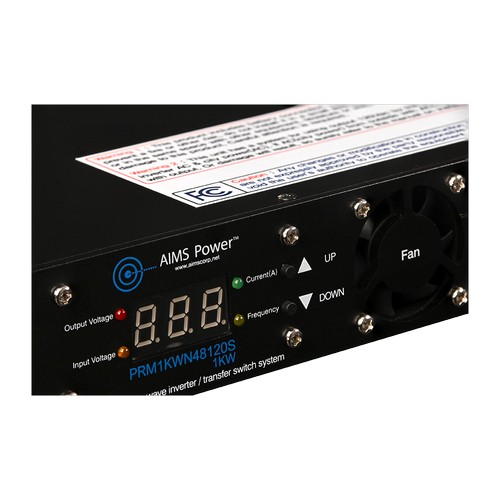

- Digital status display ????? Toggle
- Input dc voltage
- Output ac voltage
- Frequency
- AC Current

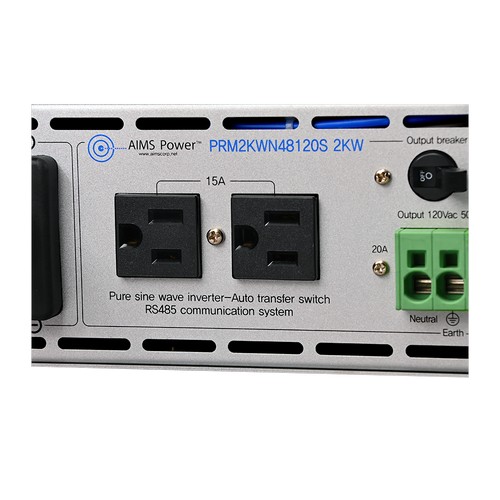

- Dual AC receptacle
- On/off switch
- Utility power bypass
- Automatic transfer switch
- Over temperature indicator
- Overload protection
- Low battery voltage warning/shutdown
- High input voltage protection with automatic shutdown
- Overload indicator
- Short circuit protection
- Thermal and load based fan
- AC output short circuit protection

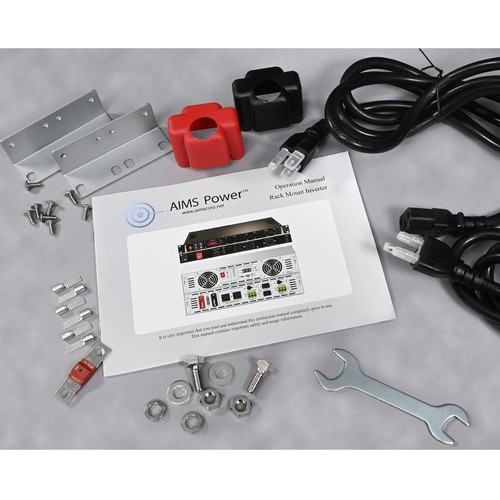

- Instruction manual
- Free lifetime tech support
- 1 Year Warranty parts and labor
Specifications - Continuous output power: 5000 Watts
- Surge power capability (peak power): 10,000 Watts
- DC input / operating voltage: Negative 41-60 Volts
- Output voltage: 120 Volts ac
- Output wave form: pure sine wave
- Output frequency: 60 Hz
- Low battery voltage shutdown: 40.6 Volts
- Low battery voltage recovery: 42.7 Volts
- Low battery voltage warning/shutdown
- No load power consumption: Fan Off 0.7 A dc ????? Fan On 1.2 A dc
- Frequency: 60/50Hz
- Efficiency: 93%
- Over temperature protection low: -4 F ?? 5 F
- Over temperature protection high: 172 F ?? 5 F
- Operating temperature recovery: 136 F (automatic shutdown) ?? 5 F
- AC output socket type: dual Type 2 -3 prong
- RS485 Communication Port
- AC output and bypass protected: 50A Breaker
- FCC Class B ????? F690501/RF-EMC000377(H)
- Unit Weight: 31.5 lbs shipped 39 lbs

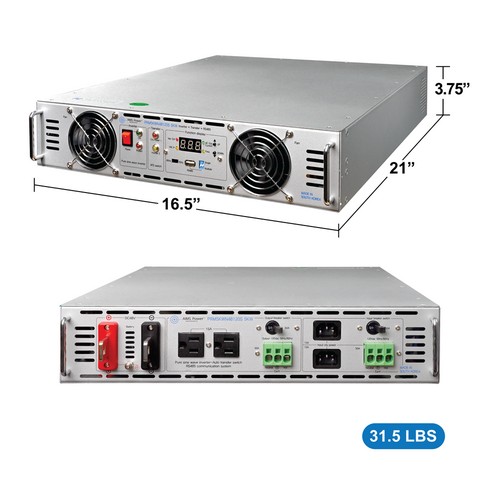

- Unit Size W x D x H: 16.5 x 21 x 3.75 inches

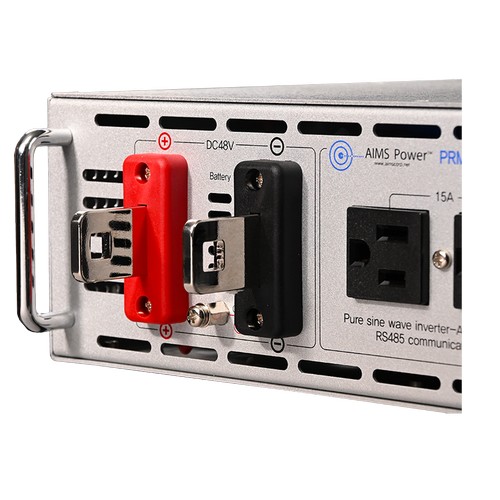

- Battery terminal size: Blade style .25? diameter
