Solar Kit 480 W Solar | 2500 W Inverter 24V | 200 A Batteries480 Watt Solar with 2500 Watt Inverter Off Grid Solar KitAIMS Power introduces the new all-in-one solar kit for all of your off grid power needs. Whether you?re supplying power to appliances in an RV or a small cabin/mobile business, this solar kit includes all necessary products required and bundled for your convenience. This 480 watt solar kit is most effective when used to power medium size devices. The 2500 watt 24 VDC inverter runs more efficiently and able to use more solar panels with the 30 amp charger at 24VDC. This inverter is ideal for medium size non-sensitive electronics such as pumps, small motors, tools, freezers, refrigerators and heaters (not meant for microwaves). The panels are covered in tempered glass to protect from hazardous weather. The PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. Each system comes with a wiring diagram upon purchase.
Features- Easy to connect and use
- Works with medium size devices up to 2500 watts/ 20.8 AC amps
- Ideal for medium size appliances, tools, pumps or small compressors (not recommend for microwaves or anything with a circuit board)
- Expandable - up to 720 watts of solar and endless amount of batteries
- Total panel dimensions are 16ft x 2ft which fits perfect on top of a RV, bus or work truck

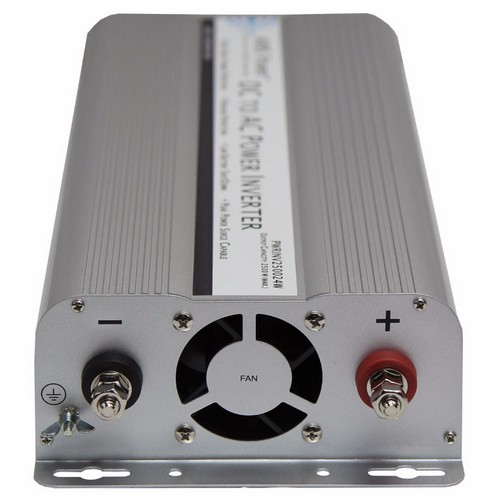

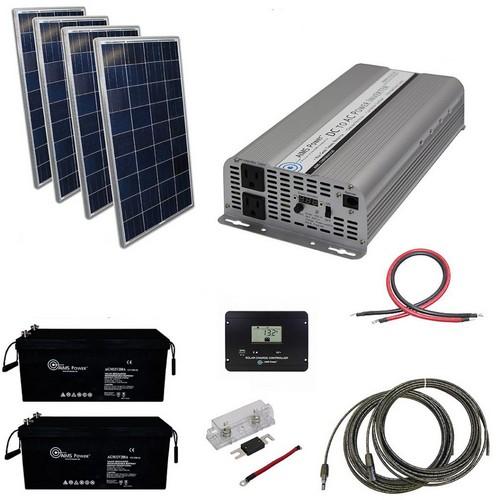

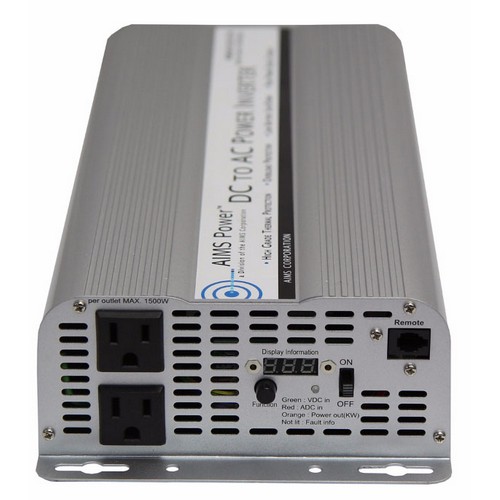

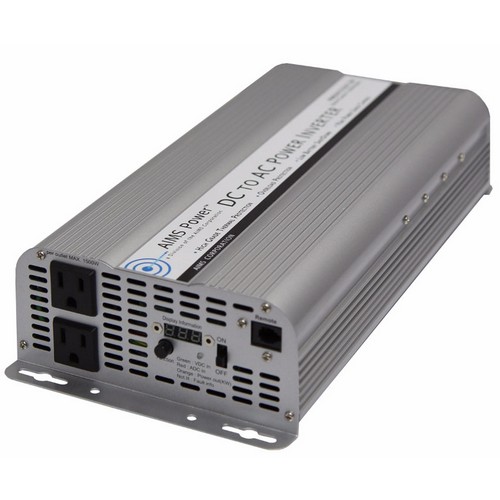

The solar panel will recharge a 50% depleted 200 amp battery in 5 hours with full sunlight.This solar kit includes- PWRINV250024W - 2500 watt inverter 24VDC
- PV120MONO - qty 4 - 120 watt mono solar panel @48 SQ FT

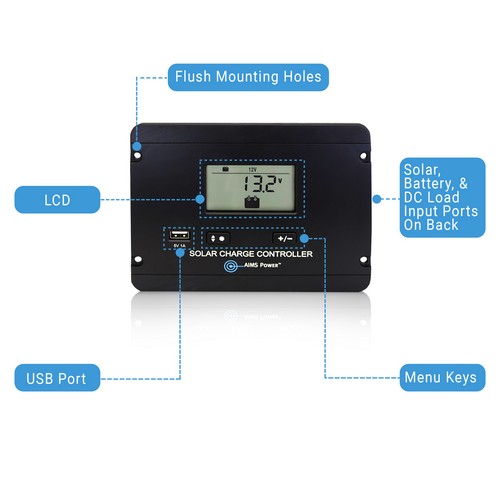

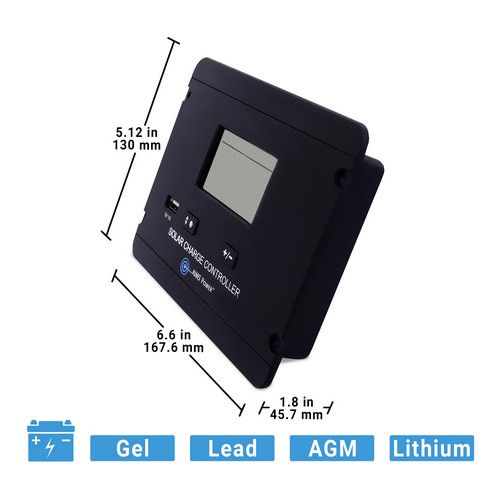

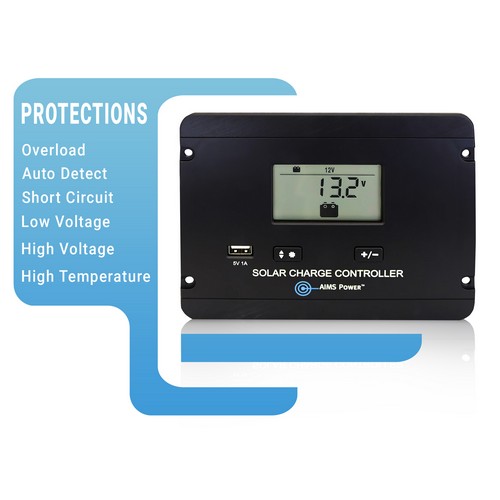

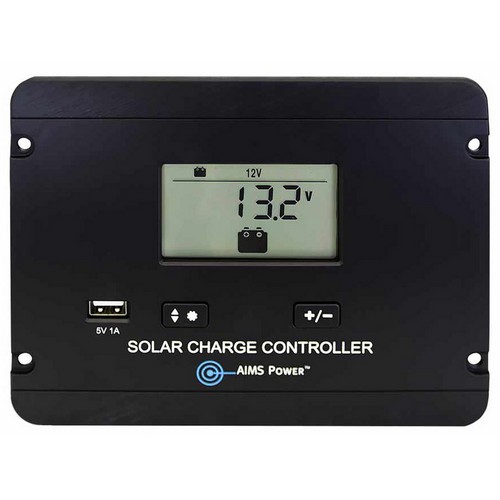

- SCC30AFM - 30 amp solar charge controller

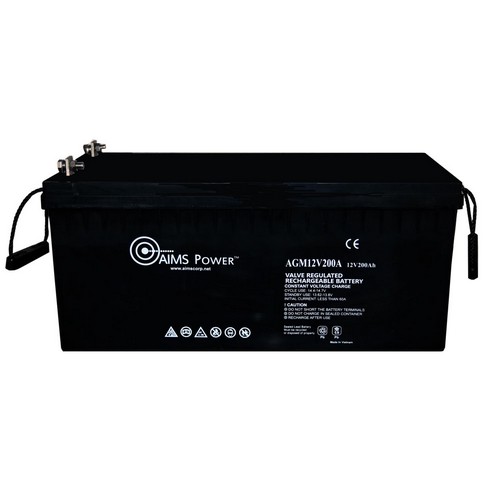

- AGM12V200A - qty 2 - 200 ah AGM deep cycle batteries
- PV100FTSET - 100 foot 10AWG PV wires for solar panels to charge controller male & female
- PVF100FT10AWG - 100 foot PV wire for combiner box to disconnect switch (female)
- PVM100FT10AWG - 100 foot PV wire for combiner box to disconnect switch (male)
- PVSCC06FTSET - 6 ft set charge controller to battery wires
- CBL08FT4AWG - 8 ft set of 4 AWG cable set battery bank to inverter
- CBL01FT4AWGRED - qty 2 - 1 ft jumper for fuse kit and batteries
- ANL150KIT - 150 amp inline fuse batteries to inverter
- PVMC4.A-2F1M - MC4 Branch 2F to M
- PVMC4.A-2M1F - MC4 Branch 2M to F
- PV-F15 - Solar inline fuse 15amp
