Solar Kit 720 W Solar | 4000 W Pure Sine Inverter Charger 120/240VAC 48VDC | 200 A Batteries 720 Watt Solar with 4000 Watt Pure Sine Inverter Charged Off Grid Solar KitAIMS Power introduces the new all-in-one solar kit for all of your off grid power needs. Whether you???re supplying power to an off-grid home/cabin or looking for a back-up power source for a small business , this solar kit includes all necessary products required bundled for your convenience. The 720 watt solar kit includes an pure sine inverter charger that has a built in battery charger to recharge the batteries when 240 VAC city or generator power is available. The 4000 watt pure sine inverter charger can power 110/120 and 220/230/240 Volt appliances, electronics, tools and pumps. The panels are covered in tempered glass to protect from hazardous weather. The PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. The 12 Volt 200 amp AGM deep cycle batteries connected in series for 48VDC will provide quality, efficient power. Each system comes with a wiring diagram upon purchase.
Features- Easy to connect and use
- Everything included except mounting/racks for solar panels
- Works with devices up to 4000 watts/ 33 AC amps 120 VAC / 16.6 AC amps 240 VAC
- Ideal for any equipment that needs standby back up or off grid power
- Perfect for a small home, cabin or business
- Need @75 sq ft available for solar panels

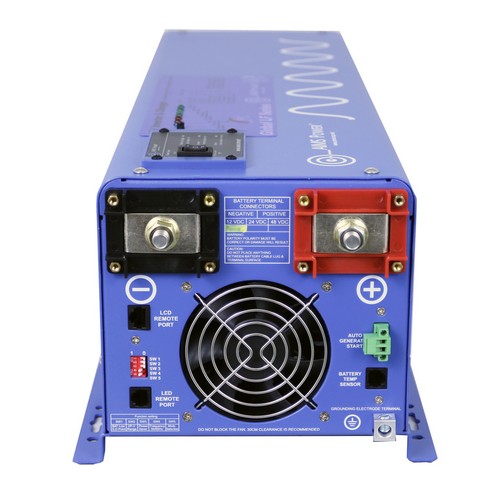

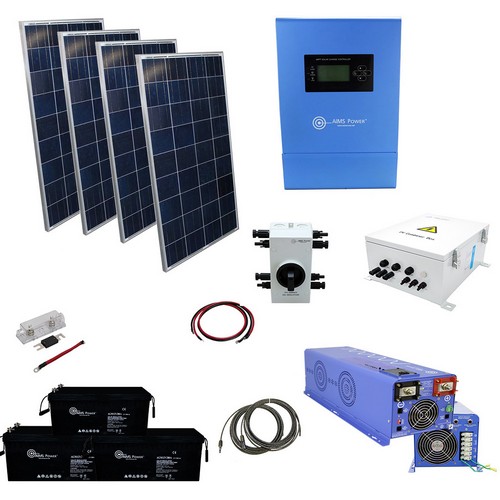

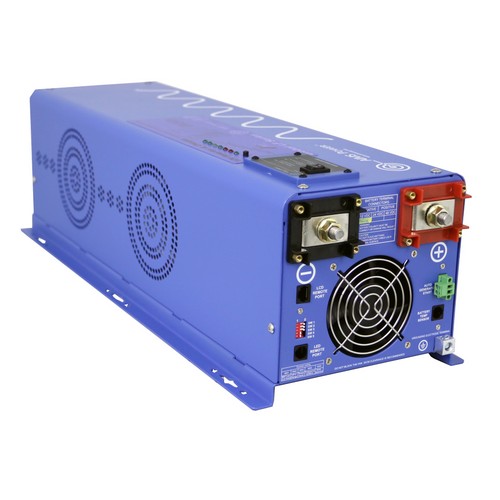

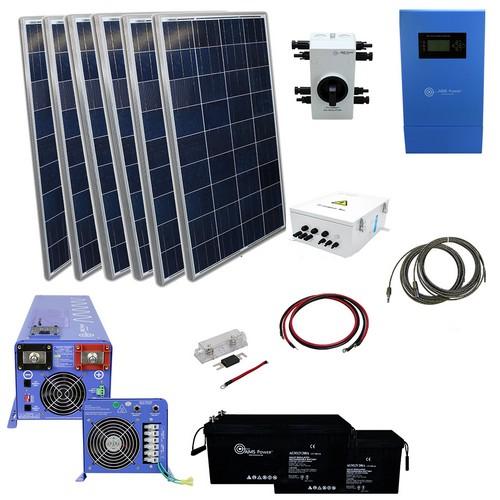

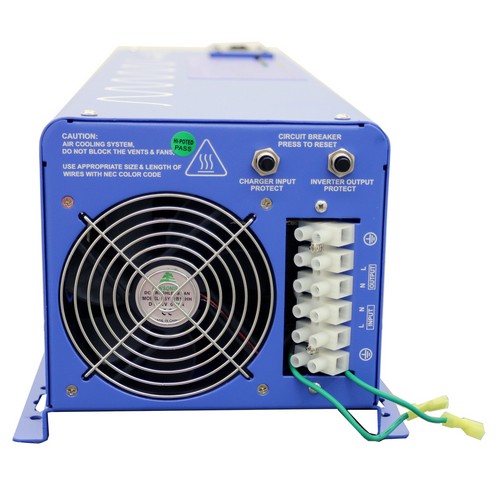

The solar panel array will recharge a 50% depleted 200 amp battery bank in under 7 hours with full sunlightThis Solar Kit Includes- PICOGLF40W48V240VS - 4000 watt pure sine inverter charger 33 amps @120VAC and 15 @240VAC
- PV120MONO - qty 6 - 120 watt mono solar panel @75 SQ FT

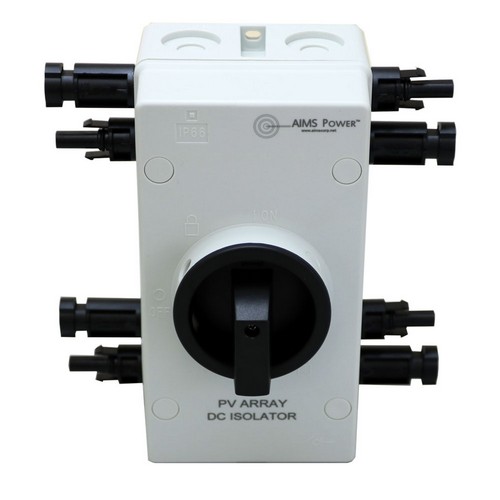

- Quick disconnect - DC1600V32A2IO

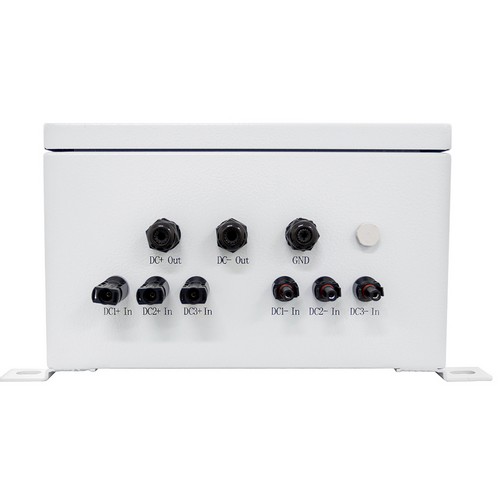

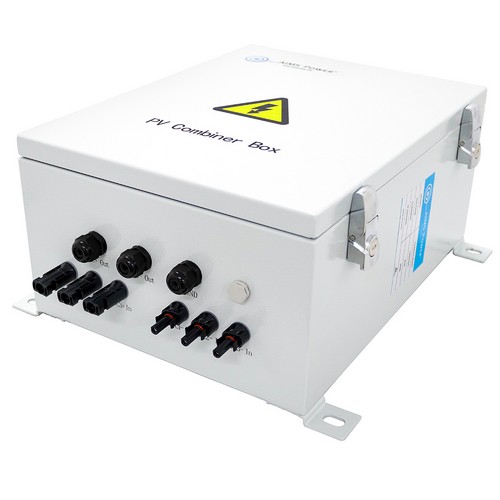

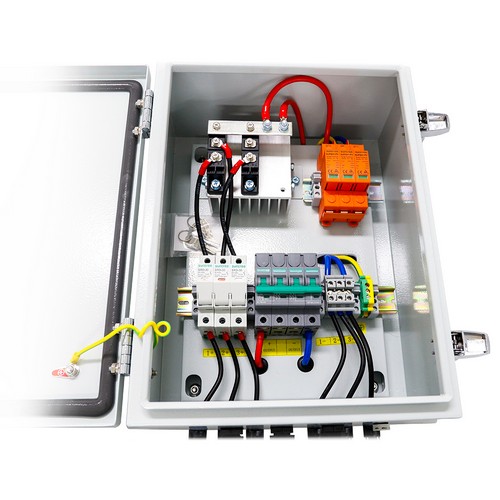

- Pre wired solar array combiner box 3 string

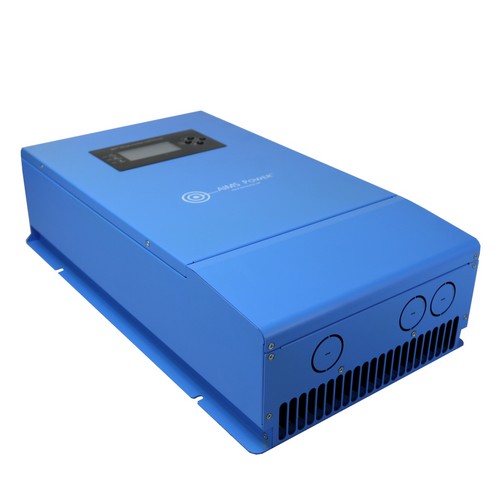

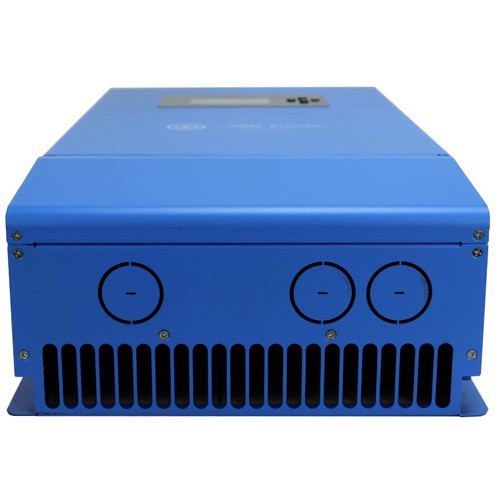

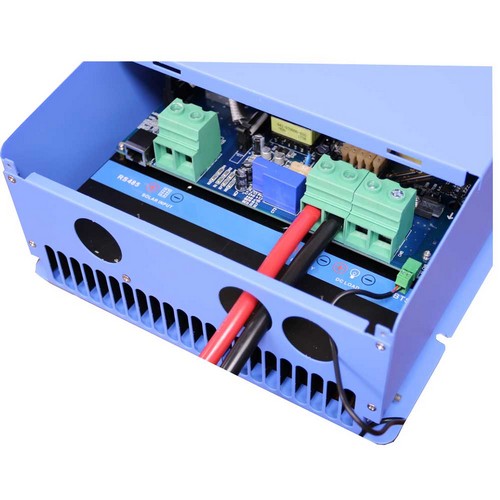

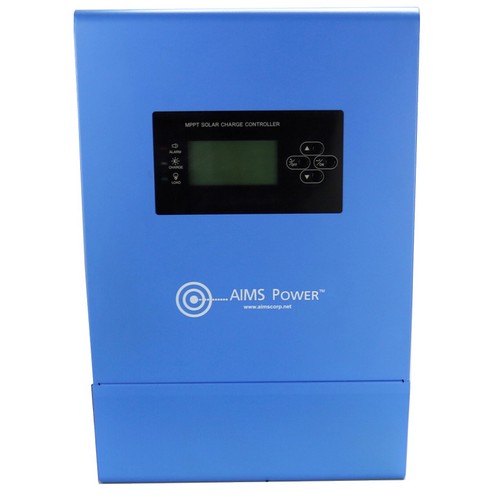

- SCC40AFM - 40 amp MPPT solar charge controller
- PV-F15 - Solar inline fuse 15 amp

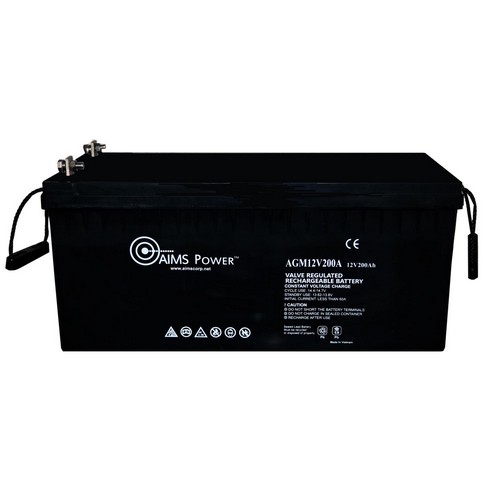

- AGM12V200A - qty 4 - 200 ah AGM deep cycle batteries
- PV100FTSET - 100 foot 10AWG PV wires for solar panels to charge controller male & female
- PVF100FT10AWG - 100 foot PV wire for combiner box to disconnect switch (female)
- PVM100FT10AWG - 100 foot PV wire for combiner box to disconnect switch (male)
- PVF20FT10AWG - male and female extender wire for panels to combiner box, combiner box to disconnect and disconnect switch to charge controller
- PICGLFBATS - Battery temperature sensor
- CBL06FT8AWGC- 8 ft set of 6 AWG cable to connect charge controller to battery bank
- ANL50KITJ - 50 amp fuse kit for charge controller to battery bank
- CBL08FT4AWG - 8 ft set of 4 AWG cable set battery bank to inverter
- Red jumpers - qty 3 - 1 ft 4 AWG cable (battery cables for series connection)
- ANL150KITWJUMP - 150 amp inline fuse kit with jumper for batteries to inverter
