Solar Kit 720 W Solar | 1000 W Pure Sine Inverter Charger | 400 A Batteries 720 Watt Solar With 1000 Watt Pure Sine Inverter Charger Off Grid Solar KitAIMS Power introduces the new all-in-one solar kit for all of your off grid power needs. Whether you???re supplying power to an off-grid home/cabin or looking for a back-up power source for a small business , this solar kit includes all necessary products required bundled for your convenience. this kit is ideal for powering up to 8 amps for longer periods of time. The 720 watt solar kit includes an pure sine inverter charger that has a built in battery charger to recharge the batteries when 120 VAC city or generator power is available. The 1000 watt pure sine inverter charger can power 110/120 Volt appliances, electronics, tools and pumps up to 8amps. The panels are covered in tempered glass to protect from hazardous weather and will keep up with your load during optimal sunlight. The PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. The 12 Volt 200 amp AGM deep cycle batteries will provide quality, efficient power. Each system comes with a wiring diagram upon purchase.
Features- Easy to connect and use
- Everything included except mounting/racks for solar panels
- Works with devices up to 1000 watts/8 AC amps
- Ideal for any equipment that needs standby back up or off grid power
- Includes 400 amps of battery power
- Perfect for a small home, cabin or business
- Need @75 sq ft available for solar panels

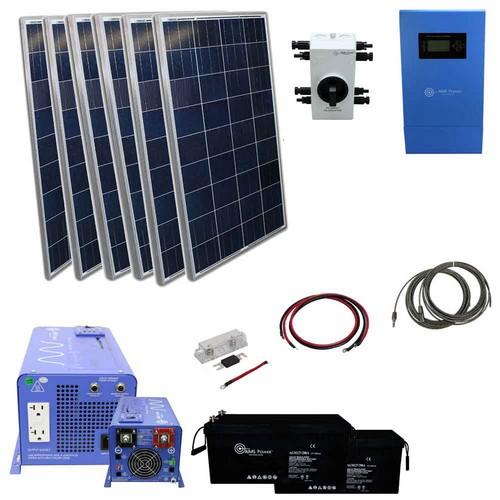

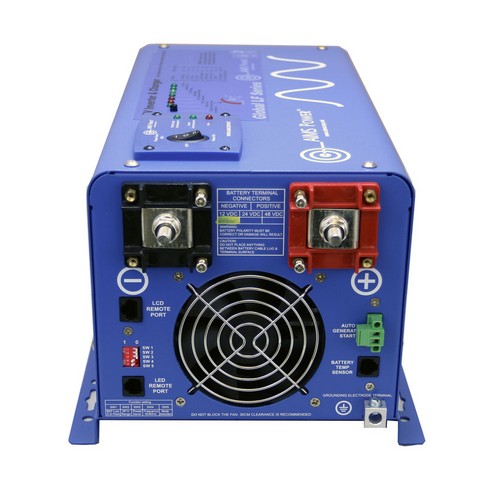

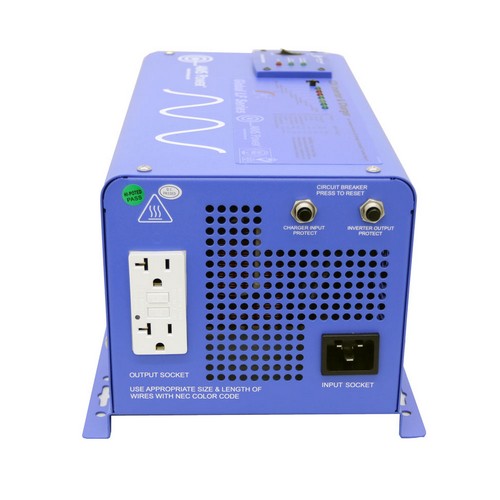

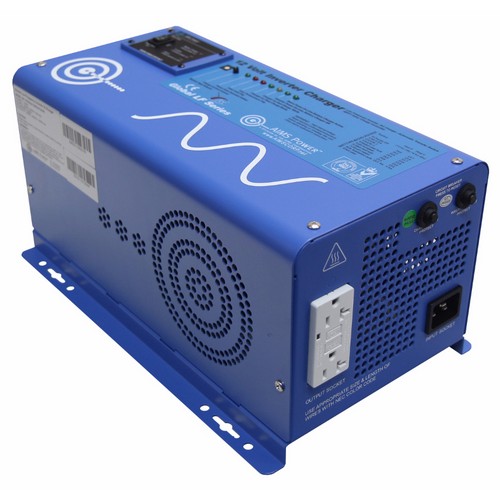

The solar panel array will recharge a 50% depleted 400 amp battery bank in under 4 hours with full sunlight.This Solar Kit Includes- PICOGLF10W12V120VR- 1000 watt pure sine inverter charger 8 amps @120VAC
- PV120MONO - qty 6 - 120 watt mono solar panel @75 SQ FT

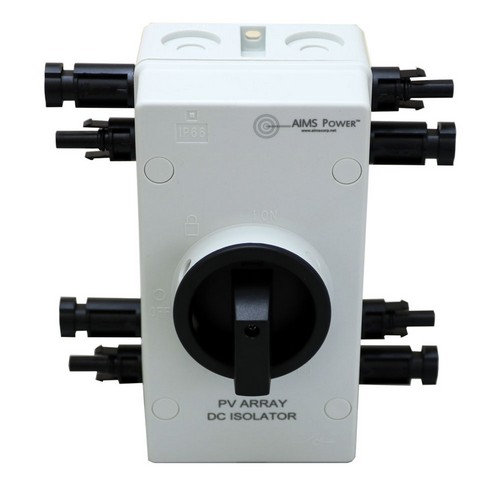

- Quick disconnect - DC1600V32A2IO
- Pre wired solar array combiner box 3 string

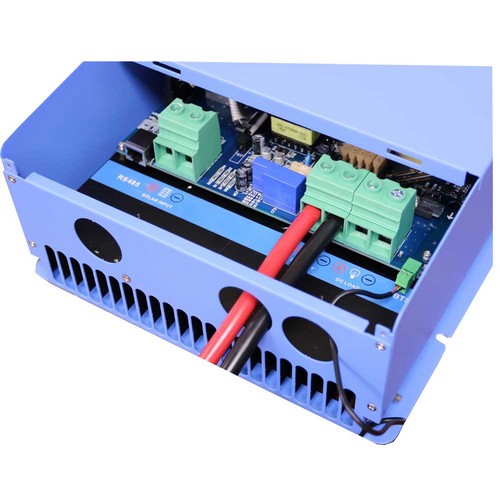

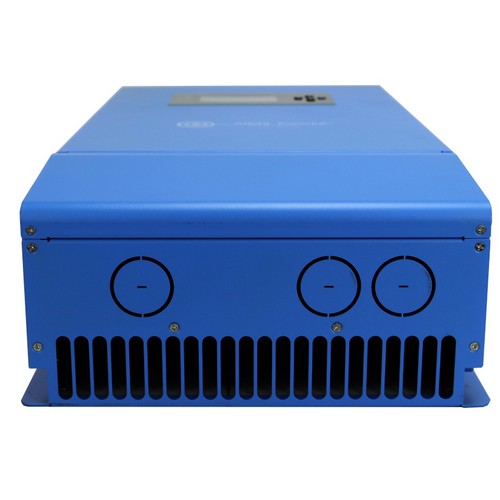

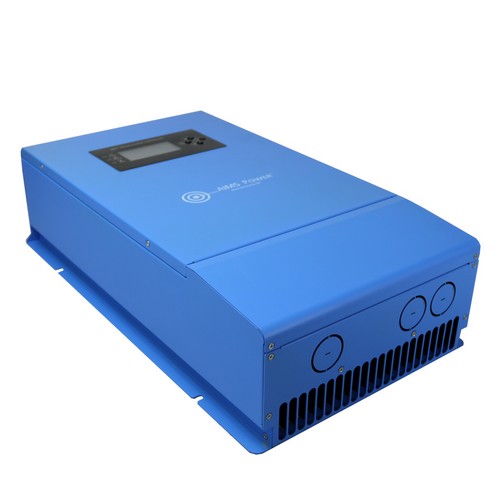

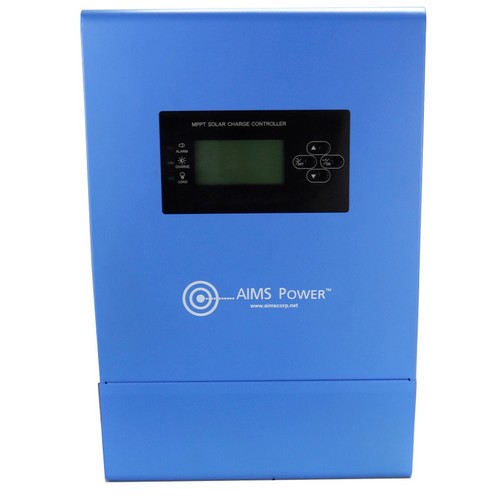

- SCC60AFM - 60 amp MPPT solar charge controller
- PV-F15 - Solar inline fuse 15 amp

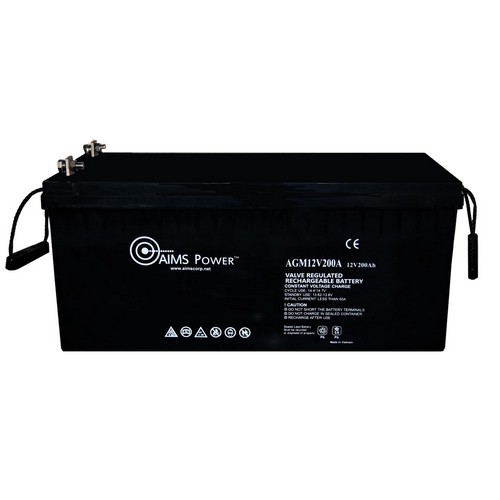

- AGM12V200A - qty 2 - 200 ah AGM deep cycle batteries
- PV100FTSET - 100 foot 10AWG PV wires for solar panels to charge controller male & female
- PVF100FT10AWG - 100 foot PV wire for combiner box to disconnect switch (female)
- PVM100FT10AWG - 100 foot PV wire for combiner box to disconnect switch (male)
- PVF20FT10AWG - male and female extender wire for panels to combiner box, combiner box to disconnect and disconnect switch to charge controller
- PICGLFBATS - Battery temperature sensor
- CBL08FT6AWGC- 8 ft set of 6 AWG cable to connect charge controller to battery bank
- ANL80KITJ - 50 amp fuse kit for charge controller to battery bank
- CBL08FT4AWG - 8 ft set of 4 AWG cable set battery bank to inverter
- CBL02FT4AWG - 1 set of 2 ft cable (battery cables)
- FV-F15 solar inline fuse
- ANL150KITWJUMP - 150 amp inline fuse kit with jumper for batteries to inverter
