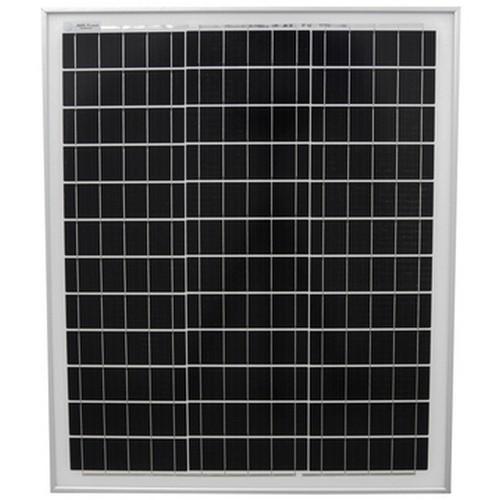

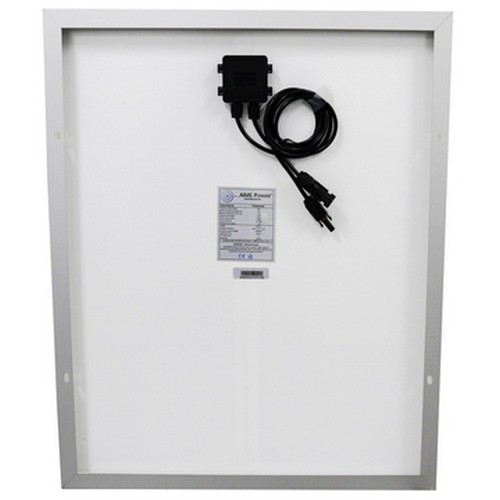

50 WATT SOLAR PANEL MONO ALUMINUM FRAME GROUND / ROOF MOUNT

The 50 Watt Monocrystalline Solar Panel from AIMS Power is a versatile performer constructed with high quality tempered glass and a stronger surface to protect from harsh weather conditions. The solar cells used in the panel are high transmission and the textured glass allows for more efficient solar power harvesting. The panel also includes a bypass diode that minimizes the power drop caused by shade. Easy to install using the pre-drilled holes on the aluminum outer frame. Perfect for home, vehicle and RV installations and smaller applications.

Features

• Monocrystalline efficient solar harvesting
• Strong surface for harsh environment
• Panels capable of 0 to +3 Watts over rated capacity
• Pre-drilled aluminum frame
• Tempered glass
• 25 Year limited warranty
• AIMS Power 50 Watt Solar Panel - PV50MONO | Download

Specifications

• Maximum Power (Watt): 50 watts
• Optimum Power Voltage (Vmp): 18 volts
• Optimum Operating Current (Imp): 2.78 amps
• Open Circuit Voltage (Voc): 21.6 volts
• Short Circuit Current (Isc): 2.99 amps
• Solar Cell: 156 * 106 mm mono
• Number of Cells (pcs): 12*3
• Front Glass Thickness (mm): 3.2 mm
• Temperature Coefficients of Isc (%) ??C: -0.048
• Temperature Coefficients of Voc (%) ??C: -0.29
• Temperature Coefficients of Pm (%) ??C: -0.37
• Temperature Range: -40??C to +80??C
• Tolerance Wattage: 0-3 watts
• Surface Maximum Load Capacity: 6000Pa
• Allowable Hail Load: 45mm at 30.7m/s
• Bypass Diode Rating (A): 10
• Cell Efficiency (%): 17.12%
• Module Efficiency (%): 14.42%
• Backing (brand Type): TPT
• Warranty: 90% of 10 years, 80% of 25 years
• Standard Test Conditions: AM1.5 1000W/ 25 +/-2??C
• FF (%): 70-76%
• Weight Per Panel (lbs): 9 lbs
• Dimensions (inches): 26.75 x 21.25 x 1.37
• MC4 cable length: 35?
