AIMS Power, PV130SLIM, 130 Watt Flexible Bendable Slim Solar Panel Monocrystalline AIMS Power, PV130SLIM, 130 Watt Flexible Bendable Slim Solar Panel Monocrystalline AIMS Power, PV130SLIM, 130 Watt Flexible Bendable Slim Solar Panel Monocrystalline AIMS Power, PV130SLIM, 130 Watt Flexible Bendable Slim Solar Panel Monocrystalline
AIMS Power, PV130SLIM, 130 Watt Flexible Bendable Slim Solar Panel Monocrystalline
The images shown are for illustration purposes only and may not be an exact representation of the product

AIMS Power, PV130SLIM, 130 Watt Flexible Bendable Slim Solar Panel Monocrystalline

  • Model: PV130SLIM
  • GTIN: 00840271005201
  • Manufactured by: AIMS Power
  • Condition: New
  • Estimated Delivery: May 3rd - May 9th
  • In Stock
Price:

$128.70 $99.00

Manufacturer Info

(image for) AIMS Power
Specifications
  • High performance: light transmittance up to 93%
  • Cell Efficiency: 22.3% (one of the highest)
  • Module Efficiency: 19.2% (one of the highest)
  • Maximum Power: 130W
  • Tolerance Wattage (e.g. +/- 5%): +/- 5%
  • Maximum System Voltage: 600V DC (UL)
  • Optimum Operating Voltage (Vmp): 22 V
  • Optimum Operating Current (Imp): 5.5 A
  • Open-Circuit Voltage (Voc): 26.4 V
  • Short-Circuit Current (Isc): 6.35 A
  • Power Tolerance: 0=+3W
  • Maximum Fuse Rating: 10 A
  • Fire Safety Class: Class A
  • Junction Box: IP 67 rated
  • Temperature Range: -40?F to 185?F
  • Bendable degree 3? to 90?
  • Number of cells: 4 x 10

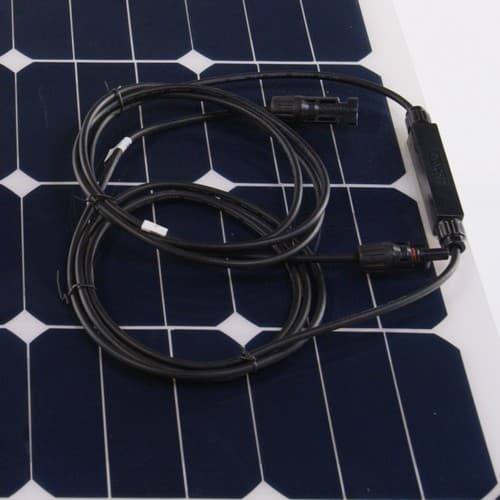

  • PV Wire: 10 AWG with MC 4 male and female connectors 76" length
Temperature Coefficients C
  • ISC(%): +2.6
  • Voc(%): -50.6
  • Prm(%): -.38
  • Im(%): +2.2
  • Vm(%): -60.8
  • Dimensions: 53.1 X 21.25 X 0.12 inches
  • Weight: 3.96 lbs
  • Certifications: CE, ETL, TUV and RoHS
