AIMS Power, PICOGLF10W12V120V, 1000 Watt Pure Sine Inverter Charger - UL AIMS Power, PICOGLF10W12V120V, 1000 Watt Pure Sine Inverter Charger - UL AIMS Power, PICOGLF10W12V120V, 1000 Watt Pure Sine Inverter Charger - UL

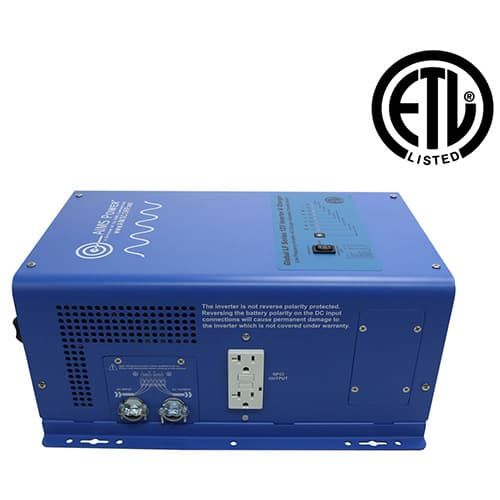

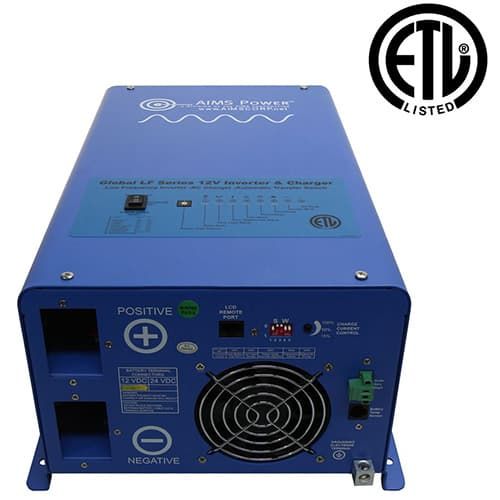

AIMS Power, PICOGLF10W12V120V, 1000 Watt Pure Sine Inverter Charger - UL
The images shown are for illustration purposes only and may not be an exact representation of the product

AIMS Power, PICOGLF10W12V120V, 1000 Watt Pure Sine Inverter Charger - UL

  • Model: PICOGLF10W12V120V
  • GTIN: 00840271003108
  • Manufactured by: AIMS Power
  • Condition: New
  • Estimated Delivery: May 3rd - May 9th
  • In Stock
Price:

$1,055.34 $811.80

Would you like to add these items to your order?
AIMS Power, REMOTELF, LCD Remote Panel  $263.12 $202.40

Manufacturer Info

(image for) AIMS Power
Features
  • Listed to UL 458 Standards
  • 1000 watt low frequency inverter
  • 3000 watt surge for 20 seconds -3x surge capability
  • Battery Priority Selector
  • Terminal Block
  • GFCI
  • Marine Coated and Protected
  • Multi Stage Smart charger 35 Amp
  • remote panel available
  • auto gen start
  • auto frequency
  • 10msec typical transfer time
  • 7 battery type settings for charger
  • Product Manual | Download
Inverter Output Specifications
  • Listed to UL 458 Standards
  • Continuous Output Power: 1000 Watts
  • Surge Rating: 3000 Watts (20 Seconds)
  • Output Waveform: Pure Sine/Same as input (Bypass Mode)
  • Output Voltage: 100-110-120Vac
  • Nominal Efficiency: >92% (Peak)
  • Line Mode Efficiency: >95%
  • Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
  • Typical Transfer Time: 10ms (Max)
  • THD: < 10% DC
Input Specifications
  • Nominal Input Voltage: 12.0Vdc
  • Minimum Start Voltage: 10.0Vdc
  • Low Battery Alarm: 10.5Vdc-11.0Vdc
  • Low battery Trip: 10.0Vdc-10.5Vdc
  • High Voltage Alarm: 16.0Vdc
  • Low battery Voltage Restart: 13.0Vdc
  • Idle Consumption: 12.5 watts
  • Power Saver Mode Idle Consumption: 7.5 watts
Charger Specifications
  • Output voltage: Depends on battery Type
  • Charger Rate: 35A
Dimensions
  • Unit Weight: 36.5 lbs.
  • Unit Size L x W x H: 15.35 x 11 x 7 inches
  • Shipping Weight: 44 lbs.
  • Shipping L x W x H: 20.5 X 13.8 X 12.2 inches
