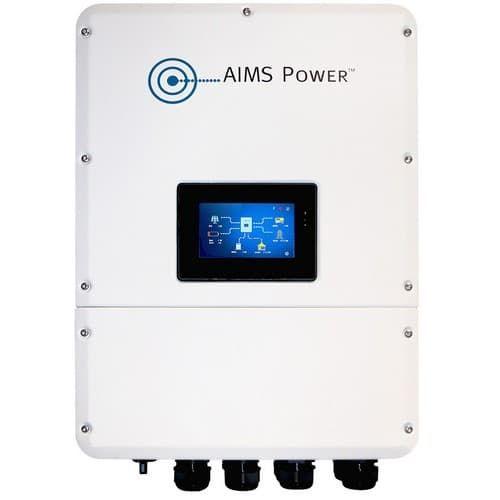

The NEW AIMS Power hybrid inverter charger is designed to provide grid tie and off grid solar power management in one product. Its simple but comprehensive design eliminates the need for extra equipment, providing an efficient solution for users interested in off grid battery backup, net metering, and load sharing all in one product. Easy to install and monitor remotely. Loaded with safety features and listed to UL and CSA standards.

Features

• Listed to UL 1741-SA I CSA 22.2 No.107-01 I UL1998 I UL1699B
• Stackable (Max 6)
• Direct 3 string PV input
• IP65 NEMA4X rated for outdoor installation
• 10 year warranty
• Customizable DC input voltage for various battery types including lithium and lead
• Free USA based tech support
• Wide programmable voltage input range
• Generator input for backup 240VAC
• Wide PV input voltage range
• Load sharing
• Isolated emergency backup output for defined loads
• Configurable charge and load times based on local utility recommendations
• Loaded with safety features

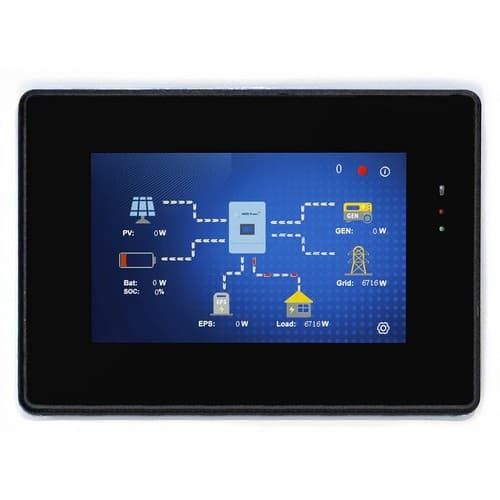

• Large 5-inch color LCD
• RS485, CAN, Wi-Fi, 4G
• Extremely efficient
• FCC Part 15 Class B

PV INPUT	PIHY9600 9600 WATT (9.6kW)
Max Input Power (kW)	15
Max PV Voltage (V)	660
MPPT Range (V)	80-550
Normal Voltage	360
Startup Voltage	100
Max Input Current (A)	15.5 x 3
Max Short Current (A)	26 x 3
BATTERY PORT
Max Charge/Discharge Power (kW)	11.5 | 10.3
Max Charge/Discharge Current(A)	50
Battery Common Voltage (V)	230
Battery Voltage Range(V)	80- 495
Battery Type	Lithium | Lead
AC GRID
Max Continuous Power(kVA)	9.6
Max Continuous Current(A)	40 | 46.5
Nominal Grid Voltage (V)	211 to 264 @ 240 | 183 to 229 @ 208 (not 3 phase, split phase)
Nominal Grid Frequency (Hz)	60
Output Power Factor	.99 adjustable
Current THD(%)	<3
AC BACK-UP & GENERATOR
Max Continuous Power(kVA)	9.6
Max Continuous Current(A)	41 | 46.5
Max Peak Currenty (A)(10 min)	47.9 | 49.5
Max Peak Power(kVA)(10 min)	11.5 | 10.3
Nominal AC Voltage L-L(V)	240 | 208 (not 3 phase)
Nominal AC Voltage L-N(V)	120 | 120
Nominal AC Frequency(Hz)	60
Switching Time(ms)	<10
Voltage THD(%)	<3
EFFICIENCY
CED Efficiency(%)	97
Max Efficiency(%)	97.6
PV to Battery Efficiency(%)	98.1
Battery between AC Efficiency(%)	96.8
PROTECTION
PV Reverse Polarity Protection	YES
Battery Reverse Polarity Protection	YES
Over Current/Voltage Protection	YES
Anti-Islanding Protection	YES
AC Short Circuit Protection	YES
Residual Current Detection	YES
Ground Fault Monitoring	YES
Insulation Resister Detection	YES
PV Arc Detection	YES
Rapid Shut Down	YES
Enclosure Protect Level	IP65 | NEMA4X
GENERAL DATA
Cooling	Thermal Fan
Relative Humidity	0-100%
Operating Temerature Range	-25 to 60C | -77 to 140F
Operating Altitude	< 4000 m | <13123 ft without derating
Noise Emission (dB)	<40
Stanby Consumption (W)	<10
Mounting	Wall Bracket
Communication with RSD	SUNSPEC
Display & Communication Interfaces	Full Color LED, RS485, CAN, Wi-Fi
Certification & Approvals	UL 1741 SA | CSA 2202 No. 107-01 |UL 1998 | Rules21 | HECO Rule 14 | IP65 | CEC
EMC	FCC Part 15 Class B

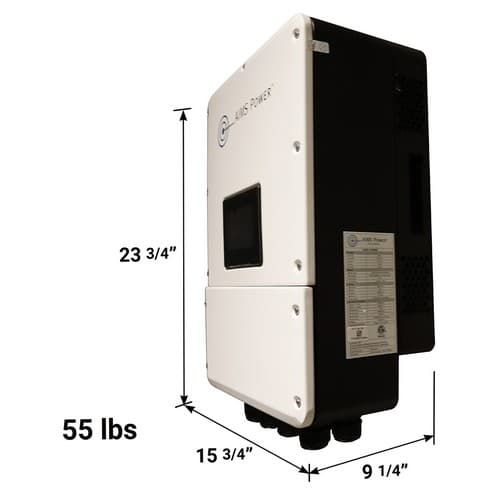

Dimensions: 23 3/4" x 15 3/4" x 9 1/4" 55 lbs
