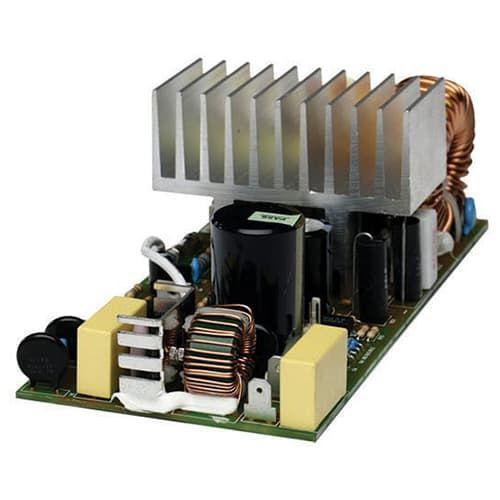

20 Amp Open Frame SMPS Modular Power Supply (230V) SEC-2012MPSB-230 Open frame SMPS modular power supply. Used as modules in BRM series or can be used independently. Can be operated in parallel. Provides a highly regulated output DC voltage of 14.2 Volts at 20 Amps with an AC input of 230 Volts, 50 Hz (120 Volts, 60 Hz model also available).
For use with SEC-40BRM-230 & SEC-100BRM-230 (230VAC)
2 Year Limited Warranty Features - Provides N+1 redundancy (2 or more running in parallel)
- Expand output power by adding power modules
- Operation status LED
- Remote indication of operation status
- Open frame construction
Specifications - Input: 108-132 VAC
- Output: 14.2 VDC
- Amps: 20 Amps
- Weight: 0.73 (kg)
- Weight: 1.6 (lbs)
- Dimensions: 7.2 x 3.4 x 2.5 (in)
- Dimensions: 18.3 x 8.6 x 6.4 (cm)
- Samlex Specifications (EN) | Download
Applications - Any critical power supply application
- Telecommunications systems
- Mobile sound/audio displays
- GPS receivers
- Security systems
- CCTV systems
