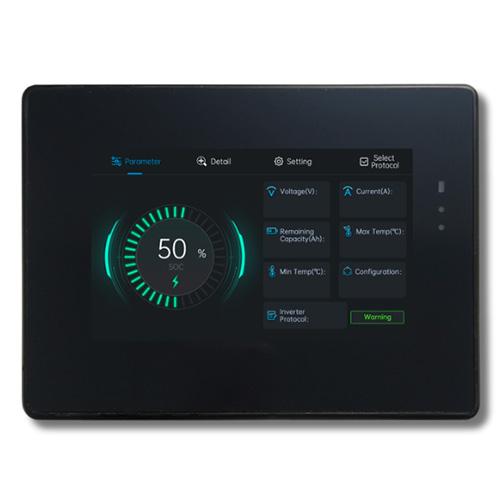

Deka Duration T-Monitor Battery Display InterfaceThe Deka Duration T-Monitor is an advanced display interface designed for use with Deka Duration LiFePO4 monobloc batteries. It provides real-time system visibility, allowing users to monitor critical battery performance data through an intuitive touchscreen display.
Using RS485 communication, the T-Monitor delivers accurate system information including voltage, current, remaining capacity, temperature, and system configuration. It can be connected directly to the battery or integrated through the Deka Duration T-BOX for expanded system communication.
Key Features - 5.0-inch IPS LCD touchscreen with 800×480 resolution
- Displays voltage, current, state of charge (SOC), and temperature
- RS485 communication for reliable data transmission
- Compatible with direct battery connection or T-BOX integration
- 262K color display for clear system visualization
- Durable, UV-resistant protective outer shell
- Built-in speaker, LED indicator, and ambient light sensor
- Duration Drop-in Brochure | Download
- T-Monitor Manual | Download
Smart Monitoring & AlertsThe T-Monitor enhances system awareness with audible alarms and visual indicators. Alerts are triggered during fault conditions, protection events, or low state-of-charge (SOC), helping users respond quickly to system changes.
Specifications - Display: 5.0-inch IPS LCD touchscreen
- Resolution: 800 × 480
- Color Depth: 262K colors
- Communication: RS485
- Compatibility: Deka Duration LiFePO4 batteries
- Connection Options: Direct or via T-BOX
- Enclosure: UV-resistant housing
Alert Features - Audible Alarm: Yes (fault, protection, low SOC)
- Visual Indicators: LED and display alerts
- Sensors: Ambient light (photosensitive) sensor
