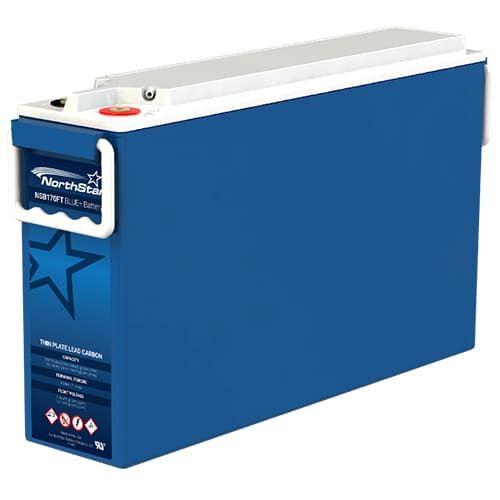

NorthStar, NSB170FT BLUE+, BLUE+ VRLA-AGM Pure Lead Carbon 170Ah, 12V Front Terminal, kWh Storage Per Battery: 2.04 kWh Nameplate / 1.02 kWh Effective NorthStar, NSB170FT BLUE+, BLUE+ VRLA-AGM Pure Lead Carbon 170Ah, 12V Front Terminal, kWh Storage Per Battery: 2.04 kWh Nameplate / 1.02 kWh Effective
NorthStar, NSB170FT BLUE+, BLUE+ VRLA-AGM Pure Lead Carbon 170Ah, 12V Front Terminal, kWh Storage Per Battery: 2.04 kWh Nameplate / 1.02 kWh Effective
The images shown are for illustration purposes only and may not be an exact representation of the product

NorthStar, NSB170FT BLUE+, BLUE+ VRLA-AGM Pure Lead Carbon 170Ah, 12V Front Terminal, kWh Storage Per Battery: 2.04 kWh Nameplate / 1.02 kWh Effective

  • Model: NSB170FT BLUE+
  • Manufactured by: Northstar
  • Condition: New
  • Estimated Delivery: May 3rd - May 9th
  • In Stock
Price:

$690.87 $531.44

Product Has a Minimum Order Quantity: 12

Manufacturer Info

(image for) Northstar
The NSB BLUE+ Battery delivers ultra fast recharge and exceptional PSoC cycling performance.
  • Exceptional PSoC cyclic performance 2050 cycles @50% DoD
  • Design life 12+ years at 20C (68F)
  • EUROBAT design life definition: Very Long Life (12+ years)
  • Ultra fast recharge
  • Shelf life of up to 24 months
  • High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation
  • Flame retardant (UL 94 VO) and LOI of at least 28%
  • Lead carbon added to negative electrodes increases power and reduces sulfation
  • High potential fuel savings when used with hybrid genset applications
  • Operating temperature range -40C to +65C (-40F to 149F)
  • State-of-the-art automated manufacturing ensures consistency and reliability
  • Advanced 3 stage terminal design to ensure leak-free operation - brass terminals provide maximum performance
  • Non-halogenated thermally sealed plastic casing
  • Approved as non-hazardous cargo for ground sea and air transport DOT 49CFR173.159(d), (i) and (ii)
  • Product Datasheet | Download
Terminal Female M8 x 1.25
Terminal torque 8.0 Nm (71 in-lbs)
10 hr capacity to 1.80VPC @ 25C (77F) 170 Ah
8 hr capacity to 1.75VPC @ 25C (77F) 168 Ah
Float voltage @ 20/25C (68/77F) 2.28 / 2.27 VPC
Impedance (1Khz) 2.8 m? @ 25C (77F)
Conductance 2380 S
Short circuit current 6000 A
Maximum charge current (A) No Limit
Operation temperature range -40C to +65C
Nominal voltage 12 V

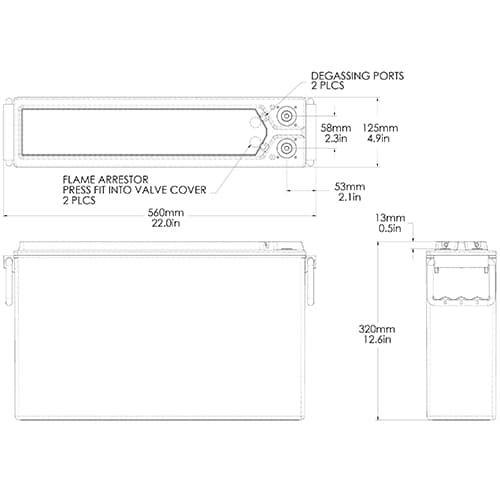

Height 12.6 in
Width 4.9 in
Length 22 in
Weight 132 lbs
