SnapNrack, 242-10005, TopSpeed Mount
The images shown are for illustration purposes only and may not be an exact representation of the product

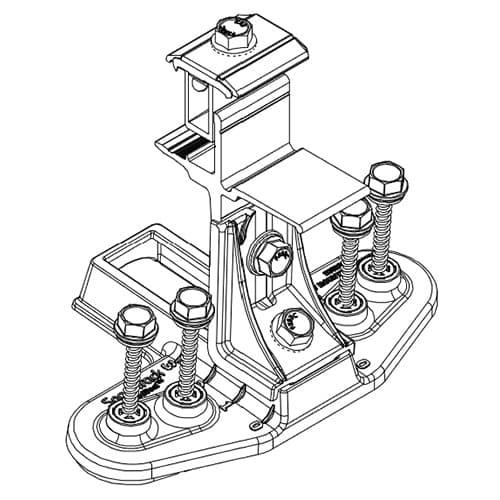

SnapNrack, 242-10005, TopSpeed Mount

  • Model: 242-10005
  • Manufactured by: SnapNrack
  • Condition: New
  • Estimated Delivery: 5 to 7 Days
  • Express shipping is not available for this product
Price:

$22.13 $17.03

Product Has a Minimum Order Quantity: 16 Must Be Ordered in Multiples of: 16

Manufacturer Info

(image for) SnapNrack
Description
  • Bolt, Flange, Serrated, 3/8In-16 X 2-3/4In, 1/2In Trim Head, 1.2In Thread, Black, SS x 1
  • Snapnrack, Rl Universal, Bonding Clip x 1
  • Snapnrack, Rl Universal, Mount Top, Black x 1
  • Snapnrack, Rl Universal, Mount Spring, SS x 1
  • Snapnrack, Module Clamp, Tower, Rock-In x 1
  • 5-16In x 3-4In Ss Flat Washer x 1
  • Bolt, Flange, 5-16In-18 X 3-4In, Clear, SS x 1
  • Snapnrack, Angle Brkt, 90 Deg, 1In Slot, 25 Deg Fastener x 1
  • Snapnrack, Base, Comp Roof, Deck Mount, Speedseal x 1
  • Bolt, Flanged Hex, 5-16In-18 X 1-1-4In, SS x 1
  • Snapnrack, Channel Nut, 5-16In-18, 25 Deg Fastener x 1
  • Snapnrack, Sealing Washer Wood Screw, #14 X 2-1-4In, 1-2 In Hex Head, SS x 4
  • Product Specifications | Download
Other Information
  • Materials: Aluminium, Stainless Steel
  • Design Load (Lbs): 210 Lbf Up, 320 Lbf Down, 162 Lbf Side
  • Ultimate Load (Lbs): 630 Lbf Up, 960 Lbf Down, 486 Lbf Side
  • Torque Specification: See Installation Manual Ft-Lbs
  • Certification: Ul2703
  • Weight (Lbs): 1.1
