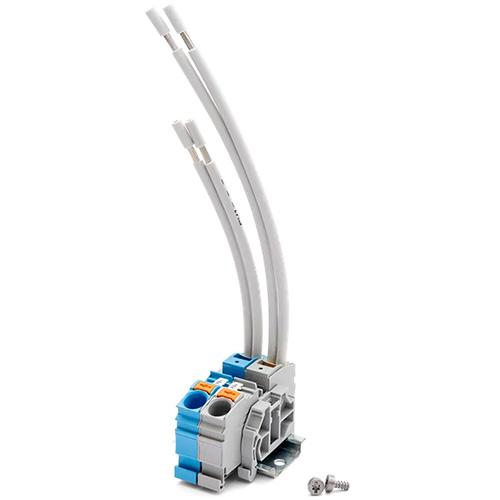

DC Connector Kit GEN24Connecting MPP trackers When MPP trackers are combined, the currents are added together, which makes it possible to connect strings with higher amperages and cables with a cross section of up to 16 mm². The Connector Kit therefore provides complete flexibility when selecting solar modules.
The DC Connector Kit GEN24 has been specially developed for use with the Fronius Primo and Symo GEN24. The terminals used are safe to touch and no ferrules are needed.
- Quick Guide DC Connector Kit GEN24 | Download
- Terms and Conditions Terms and Conditions Reference Promotion BENELUX 2024 NL | Download
| Dimension / width | 55 mm |
|---|
| Dimension / height | 90 mm |
|---|
| Dimension / depth | 90 mm |
|---|
| Weight | 0,13 kg |
|---|
| Connection cross section | 4 mm² bis 16 mm² |
|---|
| Cable type | copper cables - strand or wire, sector or circular (PV cables must be used) |
|---|
| Clamping area of the screw joint | 2,5 mm² - 16 mm² |
|---|
| Standards | IEC 60079, EN 60947, CSA C22.2 No. 158 |
|---|
| Max. voltage | 1000 V |
|---|
| Max. current (Isc_pv) with Symo GEN24 6.0-10.0 | 56,26 A |
|---|
Max. current (Isc_pv) with Primo GEN24 3.0-6.0 | 51 A |
|---|
