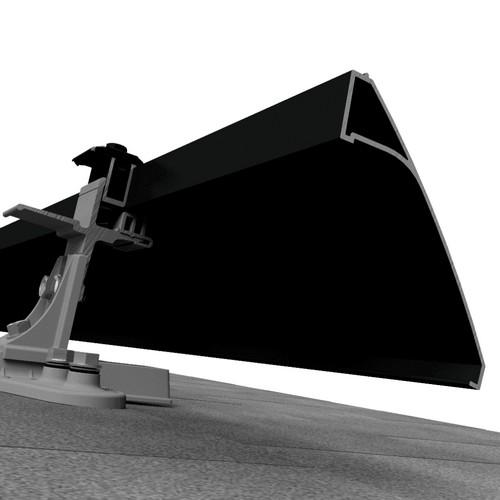

SnapNrack, 232-02493, Universal Double Portrait SkirtRail, 83", Black

Model: 232-02493
Manufactured by: SnapNrack
Condition: New
Estimated Delivery: Sep 18th - Sep 24th
Estimated Delivery: 5 to 7 Days
In Stock
Out of Stock
Express shipping is not available for this product

Price:

$61.11 $47.01

Product Has a Minimum Order Quantity: 72 Must Be Ordered in Multiples of: 72

Manufacturer Info

Other products

UR-45 Rail and Components

The SnapNrack Ultra Rail 45 System is a sleek, durable rail-based mounting solution designed for residential solar installations. With lighter-weight rails optimized for projects in average load conditions, Ultra Rail 45 offers streamlined installation, excellent structural integrity, and versatile compatibility across various roof types.

Ultra Rail Sales Brochure | Download
Ultra Rail System Standard Drawing | Download
Ultra Rail System Drawing – 3 Rail | Download
Ultra Rail UR-45 Engineering Report | Download
Multi System Cover Letter - CA | Download
Universal SkirtRail (USA) Datasheet | Download

The Ultra Rail 45 product family includes

Rails in 172", 186", and 94" lengths, available in both Mill and Black finishes.
Rail Splices in Mill and Black for easy, secure connections between rail sections.
Mid Clamps and End Clamps in Mill and Black for module attachment and row-to-row bonding.

Key Features

Fast, Snap-In Installation: Rails quickly drop into mounts and splice securely with a simple snap-together design, minimizing tools and installation time.
Superior Leveling: Spring-loaded L Feet allow full adjustability, ensuring perfectly leveled arrays across uneven roof surfaces.
Integrated Wire Management: Large top rail channels accommodate conductors, with a range of wire clamps, wire retention clips, and conduit supports for clean, protected wiring.
Flexible Compatibility: Supports all SnapNrack Series 100 roof attachments and accessory components, including MLPE mounting kits for microinverters and optimizers.
Strong & Reliable: Pre-assembled hardware and innovative designs like the Umbrella Lag Screw with flashing ensure long-term system durability and watertight protection.

Installation Overview

Secure roof attachments using SnapNrack’s Umbrella Lag and L Foot system with flashing for waterproofing.
Snap rails into attachments and connect sections with Ultra Rail Splices, maintaining proper gaps for thermal expansion.
Level rails using string lines or spare rails to ensure consistent pitch and alignment.
Attach modules with Mid Clamps and End Clamps, tightening hardware to specified torque values.
Complete wire management within the rail channels for a clean, professional finish.

The Ultra Rail 45 System is engineered for fast installs, long-term durability, and adaptability to evolving residential solar needs.
