Yaskawa Solectria Solar, PVI-36TL-480-20A, 3-Ph Grid tied inverter, 36kW, 480VAC, 60Hz, 1000VDC, AC/DC Discon, Two dual 5x15A Fused Inputs, 2 MPPT, 10 Yr Warr, Ungrounded, RS485, NEMA4

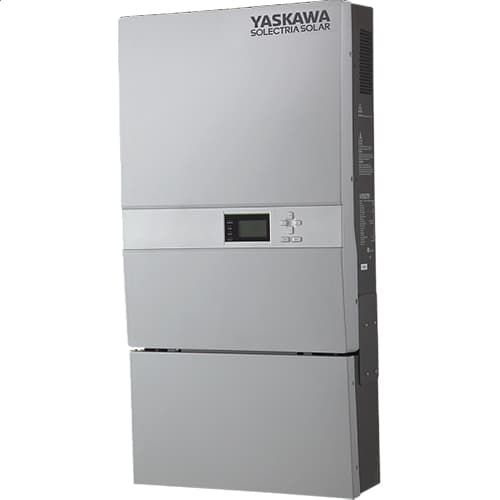

The images shown are for illustration purposes only and may not be an exact representation of the product

Yaskawa Solectria Solar, PVI-36TL-480-20A, 3-Ph Grid tied inverter, 36kW, 480VAC, 60Hz, 1000VDC, AC/DC Discon, Two dual 5x15A Fused Inputs, 2 MPPT, 10 Yr Warr, Ungrounded, RS485, NEMA4

Model: PVI-36TL-480-20A

Manufactured by: Yaskawa Solectria Solar

Condition: New

Estimated Delivery:

In Stock

Price: $8,567.32 $6,590.25

23kW, 28kW, and 36kW, 1000VDC Transformerless String Inverters

Yaskawa - Solectria Solar's PVI 23TL, PVI 28TL, and PVI 36TL are compact, transformerless three-phase PV inverters with a dual MPP tracker. These PV inverters come standard with AC and DC disconnects, user-interactive LCD, and an 8-position string combiner. Its small, lightweight design makes for quick and easy installation and maintenance. These PV inverters include an enhanced DSP control, comprehensive protection functions, and advanced thermal design enabling highest reliability and uptime. They also come with a standard 10 year warranty with options for 15 and 20 years. Options include web-based monitoring, shade cover, DC/AC disconnect covers, DC combiners bypass, and roof mount array bracket.

PVI 23TL/28TL/36TL Features

1000 VDC
Best-in-class efficiency
Touch-safe fuses
Dual & wideMPP tracking zones
Modbus communications
User-interactive LCD
Integrated DC fused string combiner
DC arc-fault protection
PVI 36TL - HECO and Rule 21 compliant

PVI 23TL/28TL/36TL Options

DC combiners bypass
DC/AC disconnect covers
Roof mount array bracket
Shade cover
Web-based monitoring

Safety Listings & Certification

CSA C22.2#107.1
FCC part 15 B
UL 1741/IEEE 1547

Product Datasheet & Specifications

PVI 14TL, PVI 20TL, PVI 23TL, PVI 28TL, and PVI 36TL Transformerless 3-Ph String Inverters Datasheet
