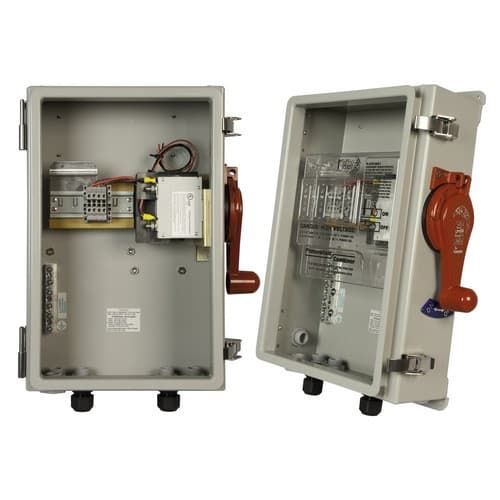

MNSOB4X-2P is a Disconnect switch. It has a 2 channel switch that breaks both the positive and negative of a PV string to a Transformer-less inverter. It has a combined rating of 600v and 20 amps as shipped. The switch is good for 100amps but the wire and terminal blocks limit it to 20 amps.
The MNSOB4X-2Ps red handled is LOCKABLE IN THE OFF POSITION!
Features - Disconnect has built in shunt trip with positive feedback
- Birdhouse compatible
- Optional PV connected power supply
- See thru deadfront
- Type 4X aluminum enclosure (no rust, wont turn to dust)
- Load Break Rated
- Customer connections are #10 wire max on the regular version and #4 wire max on the 75 amp version
- 90 C connections
- Meets NEC 2011 and 2014 NEC 690.12
- Warranty - 5 yrs.
- Listed by ETL for US & Canada
- Made in the USA
- Rapid Shutdown Brochure | Download
- ATM SOBs | Download
- MNPSB Instructions | Download
- SOB Manual | Download
- MNBirdhouse | Download
- Shut Off Box - 2 Channel | Download
- Shut Off Box - 2 Channel with Ground | Download
Hardware Included - Two - 1/2" strain reliefs (MNSR-1000)
- Eight - 1/2" LOCKNUTS
- Seven - HOLE PLUGS with Gaskets (MNHOLE PLUG 1/2)
- One - BLUE WRENCH (MNWRENCH)
