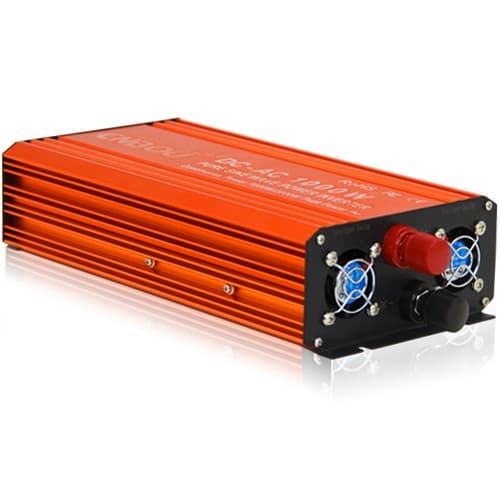

The images shown are for illustration purposes only and may not be an exact representation of the product
Widely used for solar and wind power generation system, vehicle (RV) system, outdoor working electric, household appliances, medical equipment emergency electricity, ship yacht electric etc.- Full 1000W Power , 2 Times Peak Power
- Five Protection
- High Transfer Efficiency
- Excellent Appearance Design
- Product Specifications | Download
- Product Manual | Download
CNBOU Pure Sine Wave Inverter Support 5 Type Protection - Low / Over Voltage
- Overload
- Over Temperature
- Short Circuit
- Input Oppose
Product Character- GB Copper Wire, reducing the line losses
- High quality silicone thermal pad, thermal faster,insulation better.
- Oxidation treatment radiator, heat dissipation more better, more safe.
- Stainless steel screws, insulation covering played shell and radiator insulation ,more safe.
- Insulating paper ,make the heat sink and PCB circuit board insulation ,avoid leakage, safety protection
- The former driver control panel ,PWM signal, the perfect protection, precision patch.Capacitive touch button
- The after driver control panel, Four-layer board sided precision chiptechnology, improve the protection of the sine wave signal modulation
| Model | B12P1000-1 | B24P1000-1 | B48P1000-1 | B12P1000-2 | B24P1000-2 | B48P1000-2 |
| Continuous Power | 1000W |
| Surge Power | 2000W |
| DC Voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| AC Voltage | 100VAC or 110VAC or 120VAC +5% | 220VAC or 230VAC or 240VAC +5% |
| No Load Current Draw | 0.8A | 0.4A | 0.2A | 0.8A | 0.4A | 0.2A |
| Frequency | 50HZ+0.5HZ or 60HZ+0.5HZ |
| Wave Form | Pure Sine Wave |
| USB Outlet | 5V 500MA |
| AC Regulation | THD 3%(Linear load) |
| Output efficiency | Highest94% |
| DC Voltage Range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
| Low Voltage Alarm | 10.5+0.5V | 21+0.5V | 42+1V | 10.5+0.5V | 21+0.5V | 42+1V |
| Low Voltage Shut Down | 10+0.5V | 20+0.5V | 40+1V | 10+0.5V | 20+0.5V | 40+1V |
| Over Voltage Shut Down | 15.5+0.5V | 31+0.5V | 61+1V | 15.5+0.5V | 31+0.5V | 61+1V |
| Low Voltage Recovery | 13+0.5V | 24+0.5V | 48+1V | 13+0.5V | 24+0.5V | 48+0.5V |
| Over Voltage Recovery | 14.8V+0.5V | 29.5V+0.5V | 59V+1V | 14.8V+0.5V | 29.5V+0.5V | 59V+0.5V |
| Protection | Low Voltage/Over Voltage | LED Alarm and Automatic Recovery |
| Overload | LED Alarm and Automatic Recovery |
| Over Temperature | LED Alarm and Automatic Recovery |
| Short Circuit | LED Alarm and Automatic Recovery |
| Input Oppose | Diode or Mos FET |
| Working Temperature | -10C- +50C | Quantity/Carton | 10pcs |
| Storage Temperature | -30C- +70C | Carton Size | 640*410*385 (mm) |
| Production Size | 10.2*5.7*2.7(in) | Carton Weight | 28(kg) |
| Packing Size | 14.2*7.8*4.5(in) | Warranty | 2 Years |
| N.W/G.W(KG) | 5.29/6.17(lb) | Start | Bipolar soft-start |
| Certification | CE&ROSH | Cooling Way | Intelligent Cooling Fan |
