Warranty: Five (5) years

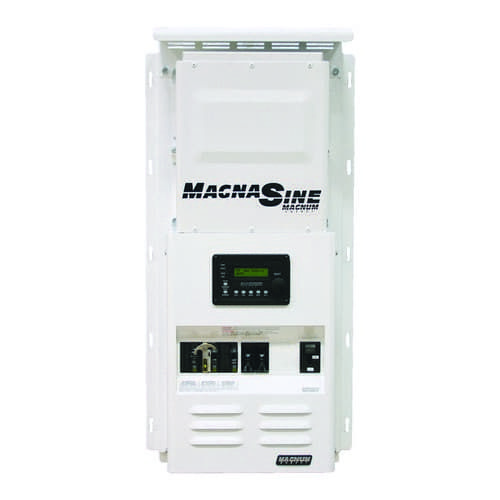

The Magnum Energy brand MMP-E - Mini Magnum Panel is an inclusive, easy-to-install panel designed to work with one Magnum Energy brand MS-E, MS-PE, RD-E or other non-Sensata inverter/charger.
***inverter/chargers sold separately***
Features Small Footprint Only (h x w x d) 56 cm x 38 cm x 33 cm
Money-saving Design Not only is the MMP-E less expensive, but it is pre-wired for fast installation, saving labor costs
Easy Access Front-mounted breakers and remote (optional)
Inclusive Want to use the MMP-E with a non-Magnum Energy brand inverter/ charger? Sensata offers an optional addition to the MMP-E allowing it to work with other inverter/chargers.
Listed CE listed
DC Load Breakers Fits either din rail or back-mount DC load breakers.
Includes - One DC breaker - 175A or 250A
- One 30A AC bypass breaker
- One 30A AC input breaker
- 500A/50mv DC shunt
- DC buss bars for battery positive and negative
- Din rail or back mount for optional DC mini breakers - will hold up to eight breakers
- Inverter hood
- Owners Manual | Download
Model Number | MMP250-30S-E | MMP175-30S-E |
DC Breaker | 250A | 175A |
AC Bypass | 30A Dual | 30A Dual |
Number of Inverter/Chargers | 1 | 1 |
Continuous Watts Accommodated | 4300watts | 4300watts |
Output Frequency | 50 Hz | 50 Hz |
Dimensions | 55.9 cm x 38.1 cm x 33 cm | 55.9 cm x 38.1 cm x 33 cm |
