The images shown are for illustration purposes only and may not be an exact representation of the product

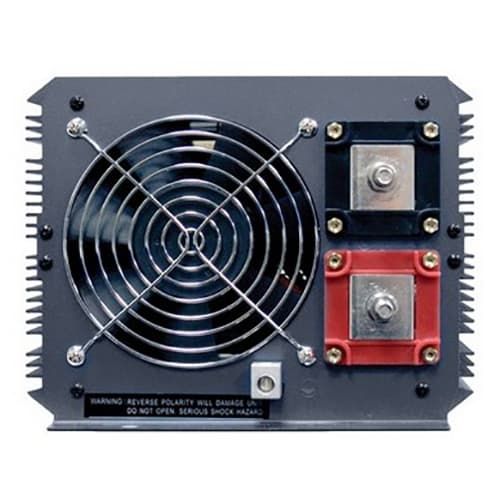

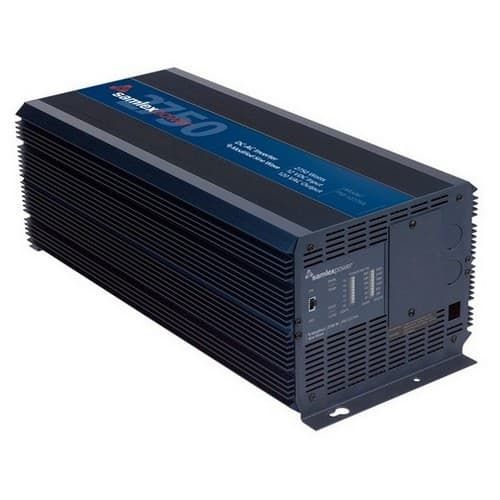

This high efficiency modified sine-wave DC-AC inverter converts 12 Volts DC (Nominal) to 2750 watts of AC power at 120 Volts 60 Hz. The unit comes with a set of battery cable lugs. Output AC power is available by means of hardwire connection (NEMA 5-15R receptacles with 15 Amp breaker optional accessory). Features include overload over-temperature low input and high input voltage protection. The front-end LED display indicates battery voltage and output power levels.
Design Features- Switching mode design
- High efficiency
- Modified sine wave output voltage
- 12 VDC input and 120 VAC output
- Overload protection
- High output current surge
- Low battery alarm / shut down
- Low idle power draw of less than 0.05 Amps
- Compact and light weight
- One output receptacle
- Configuration also enables hardwiring to multi-outlets
- Product Specifications | Download
- Product Manual | Download
Applications- Service vehicles
- Mobile Offices
- Boats
- Recreation Vehicles Camping
- Telecommunication
- Field work / Construction sites
- Solar power systems
- Emergency backup power
- Home electronics: TV VCR video games
- Computers printers monitors fax machines
- Tools and appliances
| Input | 12 VDC |
| Output | 120 VAC |
| Watts | 2750 Watts |
| Surge | 4500 Watts |
| Outlets | 1 |
| Fuse | 30Ax12 |
| Remote Control | RC-15 |
| Weight | 24 (lbs) |
| Weight | 10.88 (kg) |
| Dimensions | 17 x 8 x 6 (in) |
| Dimensions | 43.2 x 20.3 x 15.2 (cm) |
| Warranty | 2 Years (Canada/US) |
