AIMS Power, LFP230V96A-S, Lithium Battery Cabinet 230VDC 96AMPS 22,114 Watt Hours! Slave

  • Model: LFP230V96A-S
  • GTIN: 00840271007885
  • Manufactured by: AIMS Power
  • Condition: New
  • Estimated Delivery: May 23rd - May 29th
  • In Stock
Price:

$18,564.00 $14,280.00

Manufacturer Info

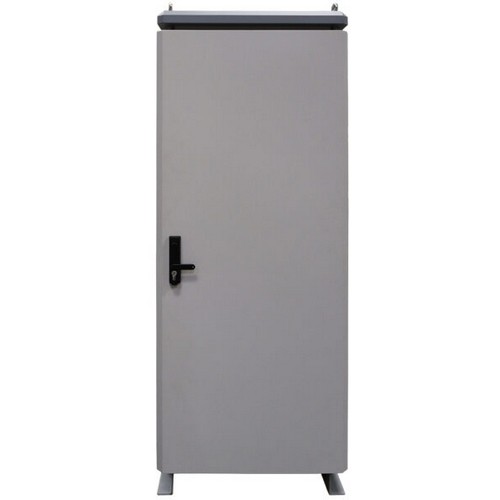

Lithium Battery Cabinet 230VDC 96AMPS 22,114 Watt Hours! Slave

THIS CAN ONLY BE USED WITH THE MASTER LITHIUM BATTERY PACK.

The AIMS Power lithium battery cabinet is designed to work with the AIMS Power hybrid inverters. The powerful lithium batteries installed in the pre-wired cabinet provide power for critical loads, load sharing during night hours, or when grid power is at peak rates. The battery cabinet is charged using solar or when grid power is available. When the battery cabinet is used with an AIMS hybrid inverter, the cabinet can be set to charge when grid rates are low or charged using solar first, then grid if needed. You can also program the hybrid/battery to power loads during peak grid hours. This helps offset your power bill!

The pre-programmed BMS ON THE MASTER CABINET works seamlessly with the hybrid inverter and the pre-wired design allows for easy set up (ONLY ON THE MASTER LITHIUM PACK). The battery cabinet can be used with a second cabinet to add even more power to your system. Max 3 cabinets per hybrid inverter. 1 master cabinet and 2 slaves.

The master lithium battery cabinet is part # LFP230V96A-M. (must be used with the master because the master has the BMS)

Features
  • Pre-programmed to work seamlessly with AIMS hybrid inverter
  • Pre-wired for easy installation and set up
  • Five year limited warranty
  • Requires only 3 simple wires to connect to the MASTER LITHIUM BATTERY CABINET. The slave cabinet is parallel wired to the master cabinet for extra stored power
  • Superior BMS for optimal performance (WHEN USED WITH THE MASTER)
  • Expandable - max 3 per inverter (1 master and 2 slaves)
  • Cell balancing
  • More efficient during high watt usage
  • Natural cooling
  • Eye bolts for lifting included
Specifications
  • Voltage DC: 230.4V
  • Amp hours: 96
  • kWh 22.1 (22,114 watt hours)

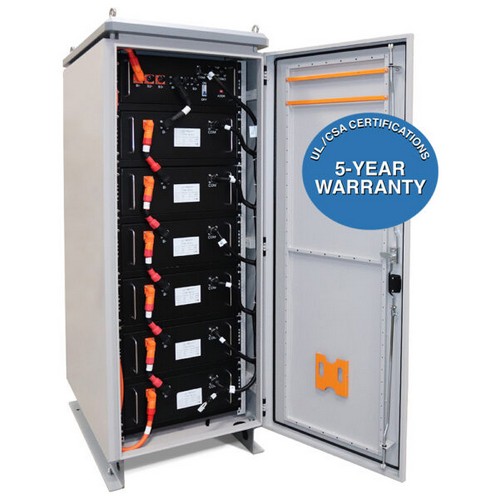

  • Cabinet includes qty 6 38.4V lithium packs wired in series.
  • Max charge/discharge current 50amps
  • Cycle life >3500
  • Cut off discharge voltage - 180V
  • Max charge voltage- 262.8
  • Efficiency >97%
  • IP grade - IP54
  • Weight - 650 lbs

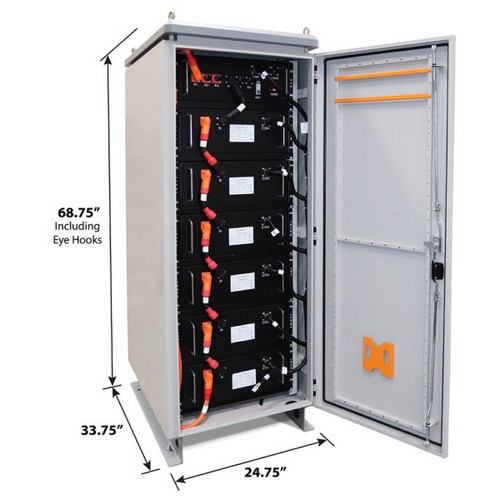

  • Dimensions (inches) - 68.75H x 33.75D x 24.75W
