Reliability Safety CapacitySolis-(25-40)K-US- LSW-SPRT = Sunspec Transmitter
- LSW-RSS = Tigo transmitter
- SW = No Transmitter
Ordering guidelines: Determine the basic model and add your desired features as described from above. Ex: Solis-40K-US-F-LSW-SPRT, (inverter with Fan andinternal Sunspec transmitter)Solis-(25-40)K three phase series string inverters utilize a 4 MPPT design to give PV system designers and installers more flexibility to optimize their PV string-sizing configuration for increased energy production and a reduced environmental impact. These NEMA 4X inverters come standard with a separable wiring box which results in increased installation safety and fast, efficient maintenance operations.
- Solis_datasheet_Solis-(25-40)K-US_USA.pdf | Download
- Compatible_MLRSD_Receiver_List_Solis-(25-40)K-US.pdf | Download
- Solis_Manual_(25-40)K_USA.pdf | Download
- Solis_Manual_(25-40)K_SW_USA.pdf | Download
- Solis_certificate_UL1741_UL1741SA_IEEE1547_UL1699B_(25-40)K-US-SW_(25-40)K-US-LSW_US_V01 (1).pdf | Download
- Solis_certificate_Function2_3(SA17_SA18)_1P(2.5-6)K-4G_1P(6-10)K-4G_(25-40)K_(50-66)K_Phase 3_US (1).pdf | Download
- Solis_certificate_Function1_8(E5000_E_5036)_1P(2.5-6)K-4G_1P(6-10)K-4G_(25-40)K_(50-66)K_Phase 3_US (1).pdf | Download
- Solis_certificate_IEEE1547_UL1741_UL1699B_(25-40)K-US-SW_(25-40)K-US-F-SW_(25-40)K-US-LSW_US_V01.pdf | Download

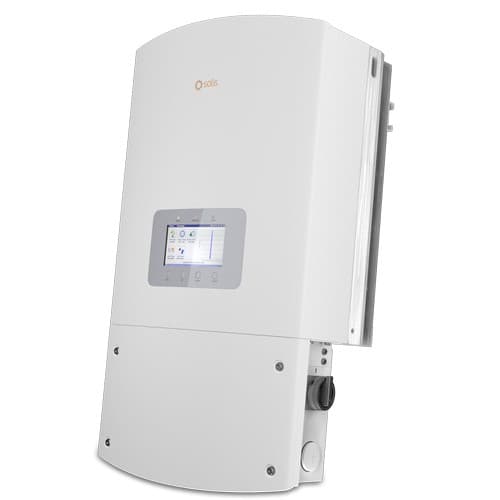

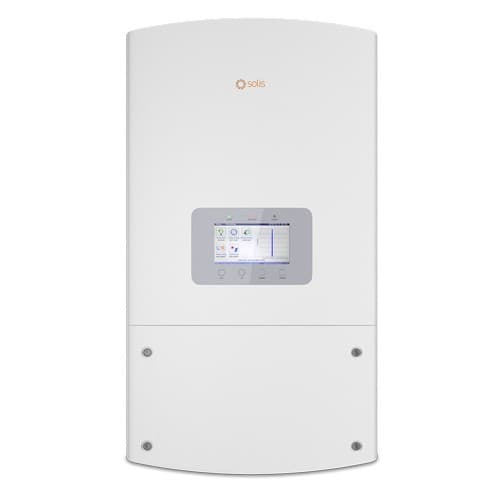

25-40kW Three Phase Inverter
Leading Features - LCD color display
- Wide voltage range and low startup voltage
- 10 Year Standard Warranty with extension options
- Transformer-less three phase design with 480Vac output
- RS-485 Modbus communication protocol with Wi-Fi interface
- Web-based data monitoring with downloadable Solis Mobile App
- Max. efficiency 98.6% (CEC efficiency 98.3%) with ultra-low start-up voltage
- Designed for all commercial, industrial and utility scale applications
- Industry-leading 4 MPPT designs with fast (<5 sec) MPPT response times
- AFCI protection, proactively reduces fire risk
- Compact and lightweight design inside a corrosion-resistant NEMA 4X enclosure
