Reliability Safety CapacitySolis-(50-66)K-US-F- LSW-SPRT = Sunspec Transmitter
- LSW-RSS = Tigo transmitter
- SW = No Transmitter
Ordering guidelines: Determine the basic model from above and add your desired features as described Ex: Solis-50K-US-F-LSW-SPRT, (inverter internal Sunspec transmitter)The Solis-(50-66)K three phase series string inverters are suitable for commercial and light industrial PV plants. These units have a compact and lightweight design making them an easy two-person installation. The ultra-low THDi of ?2% and filter features add multiple layers of protection for the grid. Solis 50-66K inverters can be parallel-connected up to 6 MW. For easy installation and O&M, these units have a separable wiring box allowing the EPC to install the wiring box ahead of time and add the inverter at a later time. To finish it off these units have multiple options of communications with free Solis APPs and PC monitoring on SolisCloud.
- Datasheet_Solis-(50-66)K-US-F_V1.2_2022_06.pdf | Download
- Compatible_MLRSD_Receiver_List_Solis-(50-66)K-US.pdf | Download
- Solis_Manual_(50-66)K_USA.pdf | Download
- Solis_Manual_(50-66)K_SW_USA.pdf | Download
- Solis_certificate_IEEE1547_UL1741(SA)_UL1699B_50K-US-SW_50K-US-LSW_(50-66)K-US-F-SW_(50-66)K-US-F-LSW_US_V02.pdf | Download
- Solis_certificate_Function2_3(SA17_SA18)_1P(2.5-6)K-4G_1P(6-10)K-4G_(25-40)K_(50-66)K_Phase 3_US.pdf | Download
- Solis_certificate_Function1_8(E5000_E_5036)_1P(2.5-6)K-4G_1P(6-10)K-4G_(25-40)K_(50-66)K_Phase 3_US.pdf | Download
- IEEE 1547&UL 1741&UL 1699B_(50-66)K_US.pdf | Download
- Solis_50K-US-SW&50K-US-LSW&(50-66)K-US-F-SW&(50-66)K-US-F-LSW_US_V01.pdf | Download

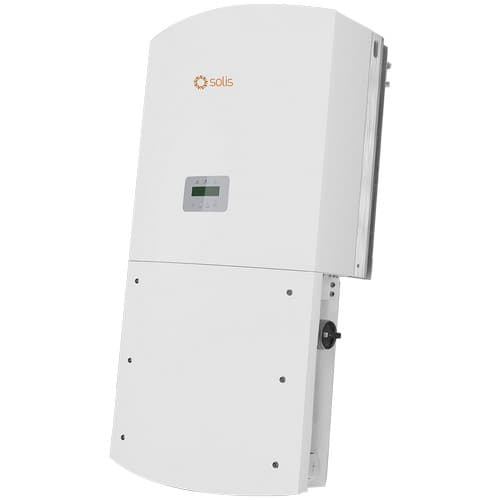

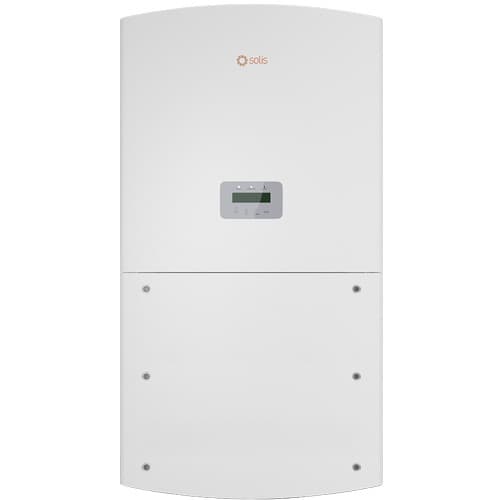

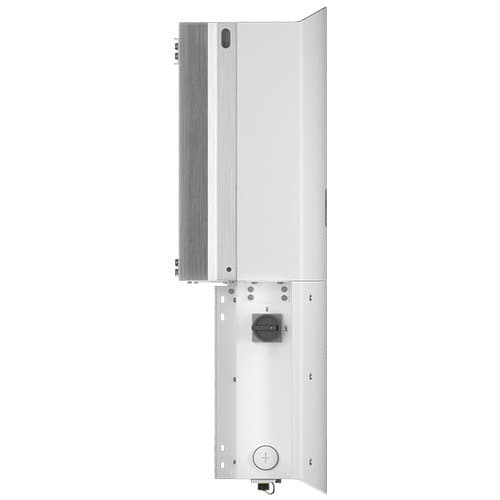

50-66kW Three Phase Inverter
Leading Features- Wide voltage range and low startup voltage
- Transformer-less three phase design with 480Vac output
- Max. efficiency 98.8% (CEC efficiency 98.4%) with ultra-low start up voltage
- Designed for all commercial, industrial, and utility-scale applications
- RS-485 Modbus communication protocol with Wi-Fi interface
- 10 years standard warranty with extension options
- Web-based data monitoring with downloadable Solis Mobile App
- Compact and lightweight design inside a corrosion-resistant NEMA 4X enclosure
- Industry-leading 4 MPPT designs with fast (5 sec.) MPPT response times
