Reliability Safety Capacity Solis-(125-255)K-EHV-5G-US 600V: 125K-PLUS / 185K / 185K-PLUS; 800V: 255K / 255K-PLUS 125-255kW three-phase utility-scale 1500 Vdc PV string inverters have 9 MPPT (125K) or 12 independent MPPTs (185 & 255K) with high-rated dc inputs that support "Y" type connection in DC side, up to 30A per DC input . Maximum string input current 15A, support bifacial modules access. Supports anti-PID function to improve system efficiency. High-precision intelligent PV string monitoring reduces fault location time.
- Datasheet_Solis-(125-255)K-EHV-5G-US_USA_V1.0_2023_02-5.pdf | Download
- Solis_Manual_3P(125-255)K_5G_USA_V1.5(20220803)-2.pdf | Download
- Solis_certificate_C22.2&UL 1741SA(SB)&UL 1699B&Rule 21&IEEE 1547(-2003)(-2018)&SA8-SA18&UL 1998_(125-255)K-EHV-5G-US (-PLUS)_US_V01-2.pdf | Download
- Solis_certificate_UL_1741_PLC_CCO_1500V_PLC_CCO_US_V01.pdf | Download
- Solis_certificate_UL 1741&UL 1699B&Rule 21&IEEE 1547&SA8-SA18&Phase 3_(185-255)K-EHV-5G-US&(185-255)K-EHV-5G-US-PLUS_US_V01-1.pdf | Download

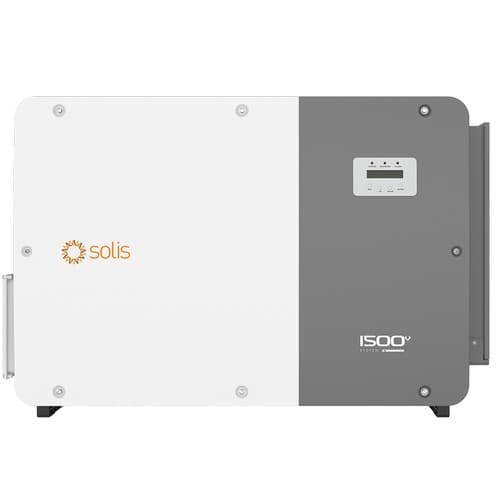

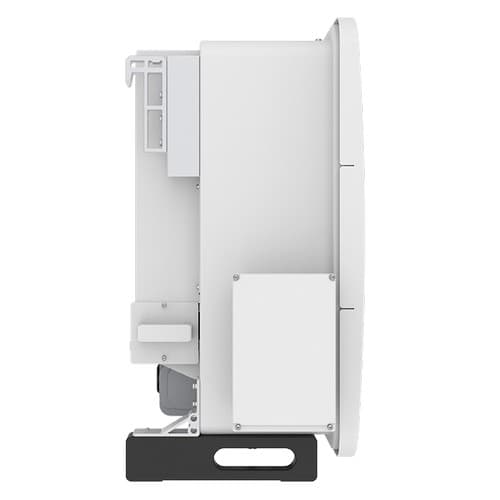

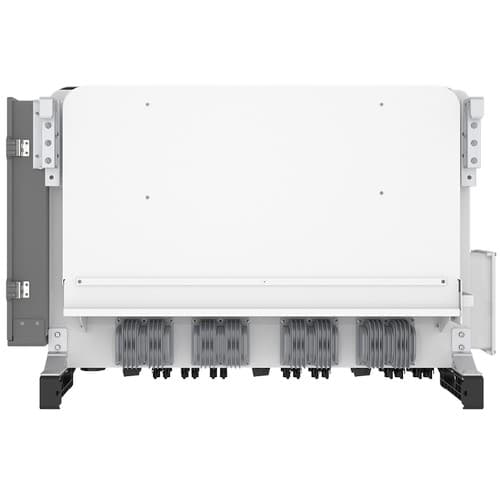

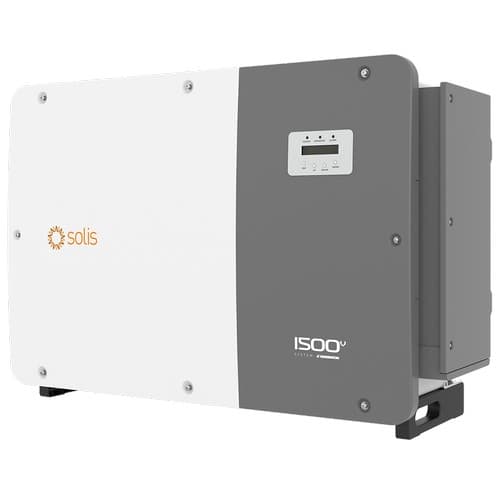

125-255kW Three Phase Inverter
Leading Features - 1.5 DC/AC ratio
- UL 1741 SA and SB
- Type 4X, C5 Anti-Corrosion Level

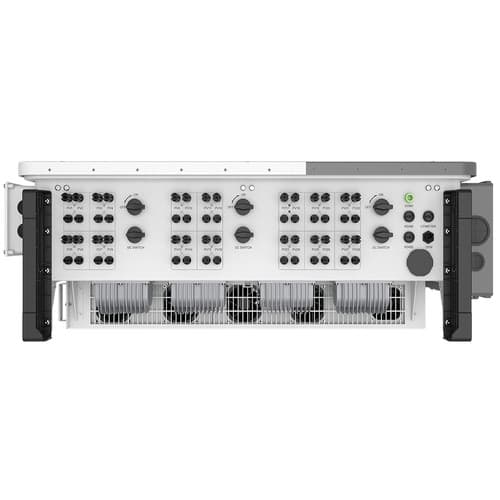

- DC side supports "Y" connector
- Reserve DC energy storage access
- High power tracking density 75MPPT/MW
- Compatible with 500W+ bifacial modules
- Support aluminium wire to reduce cost
- Fuse free design, safe and maintenance free
- Power line communication (PLC) (optional)
- AFCI protection, proactively reduces fire risk
- Intelligent string monitoring, smart I-V curve scan
- 9/12/14 MPPTs, max. efficiency 99.0% (CEC efficiency 98.3%)
- High quality components from globally recognized suppliers
- Integrated nighttime PID recovery for optimal module performance
- Remote firmware upgrade with simple operation (Requires the user to use Solis monitoring)
