Features

• IP66 rated, can be used in wet location (IP67 option available)
• Power Factor Corrected AC Input
• Fast and accurate charging
• Can function as a power supply
• Visual indicators for operation and errors
• Three year parts and labour warranty
• Product Manual | Download

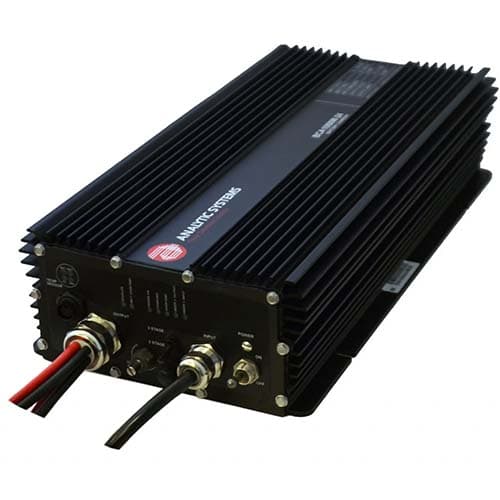

The BCA1050W Series battery charger provides up to 1000 watts of charging power to a one or two bank battery system at 12, 24, 32, 36, 48 or 72 (Rail) VDC from an 85 264 VAC source. The 1050 Series provides up to 1000 watts of precision power, while the 1550 Series provides up to 1550 watts. The 1050 and 1550 Series are identical to their previous models (1005 and 1505, respectively) in form, fit, and function as a direct drop in replacement.

The 1050W and 1550W Series feature extruded aluminum chassis and billet machined front and rear covers, designed to be dust proof and water resistant to IP66 ingress protection rating. An optional upgrade to full IP67 certified (1 meter submersion for 30 minutes) is available.

Internally, the recently updated design incorporates a Power Factor Corrected (PFC) input stage allowing the power supply to run continuously from 85 264 VAC at 50 or 60 Hz with a Power Factor of 0.99 or better from 10-100% load. Additionally, heavy input and output filtering reduce EMI to extremely low levels to prevent radio interference. Extra features include visual indicators for low input voltage, charging and over temperature.

Specialization	Water Resistant / Waterproof
Function	Battery Charger
Conversion	AC to DC
Power Level	1000
Input Volts	85 - 264 VAC
Power Factor Corrected (PFC)	Yes
Output Volts	32 VDC
Output Amps Continuous	30
Input/Output Isolation	Yes
Technology	Analog
Charging Stages	3
Temperature Compensation	Yes
Equalize	Yes
Battery Banks	2
Product Series on website	BCA1050
Option Codes	'Z' No Conformal Coating (Any Model), 'Y' IP67 Certified, 'V' Digital Volt/Ammeter, 'U' Safety Special Inspection (CSA/UL), 'P' Portable (Handle & Feet), 'M' Military Rugged, 'E' European ROHS compliant
