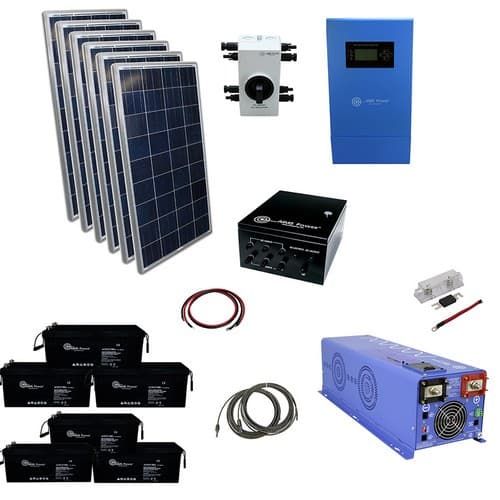

Kit Includes330W Solar Panel (each 6)Solar Panels Mono
PV Male to Female Extension (each 4)20 Foot Cable 10 AWG
Extension cables from Panel Array to Combiner Box
Combiner Box 3 String (each 1)Solar Array feeds into Combiner Box
PV Male and Female Cable (each 2)Home Run Cables from Combiner Box
To Disconnect Switch
Quick Disconnect Switch (each 1)Used to quickly cut power
PV Female Cable (each 1)20 Foot Cable 10 AWG
Used to connect Disconnect Switch to
Solar Charge Controller
PV Male Cable (each 1)20 Foot Cable 10 AWG
Used to connect Disconnect Switch to
Solar Charge Controller
Solar Charge Controller MPPT (each 1)80A, 12/24/36/48V
Charges battery with solar power
Charge Controller Cable 8 Foot (each 1)6 AWG Red + Black Pair Lug-Cut
Connects Solar Charge controller to battery
ANL 80 Amp Fuse + Holder Kit + 6AWG Jumper (each 1)Fuse goes between solar charge controller and
Battery as a safety feature
Sealed AGM Battery 200Ahr 12Vdc (each 6)Stores DC Power
Battery Bank Cable 1 foot, (each 4)1/0 Red Only
3 = Series connection for battery bank
1 = fuse kit jumper cable
Battery Bank Cable 2 feet, (each 2)1/0 AWG Red + Black Pair
Parallel connections for battery bank
ANL 300 Amp Fuse + Holder Kit (each 1)Fuse goes between inverter and
Battery as a safety feature
Power Inverter Cable 8 feet (each 1)1/0 AWG Red + Black Pair
Battery bank to Inverter
Low Frequency Battery Sensor (each 1)Tape to negative side of battery
near post. Plug into inverter
Pure Sine Power Inverter Charger W/transfer switch (each 1)6000W, 24Vdc, 120/240Vac
Split Phase
