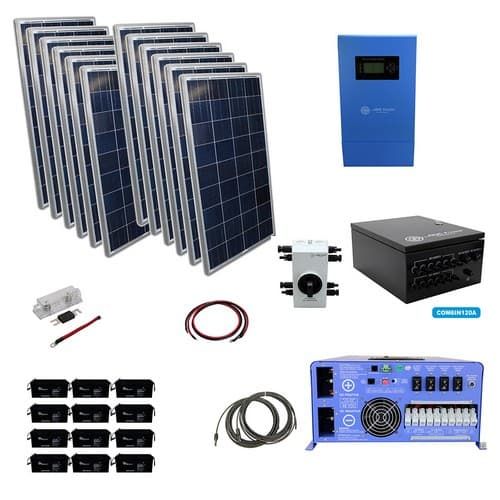

Kit Includes

320W Solar Panel (each 12)
Solar Panels Mono

PV Male to Female Extension (each 8)
20 Foot Cable 10 AWG
Extension cables from Panel Array to Combiner Box

Combiner Box 6 String (each 1)
Solar Array feeds into Combiner Box

PV Male and Female Cable (each 2)
Home Run Cables from Combiner Box
To Disconnect Switch

Quick Disconnect Switch (each 1)
Used to quickly cut power

PV Female Cable (each 1)
20 Foot Cable 10 AWGv Used to connect Disconnect Switch to
Solar Charge Controller

PV Male Cable (each 1)
20 Foot Cable 10 AWG
Used to connect Disconnect Switch to
Solar Charge Controller

Solar Charge Controller MPPT (each 1)
80A, 12/24/36/48V
Charges battery with solar power

Charge Controller Cable 8 Foot (set 1)
6 AWG Red + Black Set Lug-Cut
Connects Solar Charge controller to battery

ANL 100 Amp Fuse + Holder Kit + 6AWG Jumper (kit 1)
Fuse goes between solar charge controller and
Battery as a safety feature

Sealed AGM Battery 200Ahr 12Vdc (each 12)
Stores DC Power

Battery Bank Cable 1 foot, (each 10)
1/0 Red Only
9 = Series connection for battery bank
1 = fuse kit jumper cable

Battery Bank Cable 2 feet, (set 2)
1/0 AWG Red + Black Set
Parallel connections for battery bank

ANL 500 Amp Fuse + Holder Kit (kit 1)
Fuse goes between inverter and
Battery as a safety feature

Power Inverter Cable 8 feet (set 1)
1/0 AWG Red + Black Set
Battery bank to Inverter

Low Frequency Battery Sensor (each 1)
Tape to negative side of battery
near post. Plug into inverter

Power Inverter Charger W/transfer switch Low Freq. (each 1)
12000W, 24Vdc, 240Vac
Split Phase ETL/CSA Listed
