Enphase, BRK-20A-2P-240V-B, Circuit Breaker BR220B For Enpower, 2P, 20A, 120/240V Enphase, BRK-20A-2P-240V-B, Circuit Breaker BR220B For Enpower, 2P, 20A, 120/240V Enphase, BRK-20A-2P-240V-B, Circuit Breaker BR220B For Enpower, 2P, 20A, 120/240V Enphase, BRK-20A-2P-240V-B, Circuit Breaker BR220B For Enpower, 2P, 20A, 120/240V
Enphase, BRK-20A-2P-240V-B, Circuit Breaker BR220B For Enpower, 2P, 20A, 120/240V
The images shown are for illustration purposes only and may not be an exact representation of the product

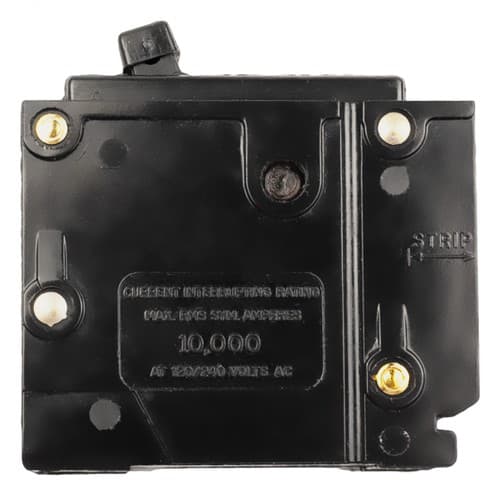

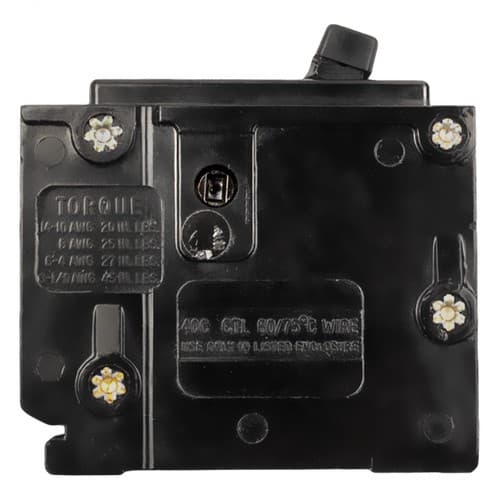

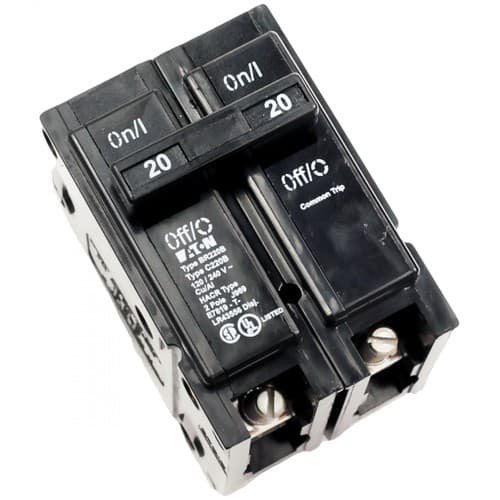

Enphase, BRK-20A-2P-240V-B, Circuit Breaker BR220B For Enpower, 2P, 20A, 120/240V

  • Model: BRK-20A-2P-240V-B
  • Manufactured by: Enphase
  • Condition: New
    • Estimated Delivery: Dec 7th - Dec 13th
  • In Stock
    • Price: $36.39  $27.99
    Circuit Breaker, 2 pole for Enpower
    • Features an individual trip as well as a rejection tab
    • Designed to create 1 circuit and allows 240 VAC
    • Protects load center
    • Quick Install Guide Circuit Breakers | Download
    *Note: *This product requires installation by a certified installer. At checkout, you can request matching to an installer in your area. Compatibility
    • IQTM-Series & M-Series Microinverter system
    • Q-CableTM system
    • EnpowerTM
    • EnchargeTM
    • EngageTM Cables
    Circuit breakers protect the wires in your home from overheating (referred to as an overload) and fault currents (referred to as short circuits). The Eaton Circuit Breaker is designed to create 1 circuit with 2 poles. This allows for 240-Volt circuits. This breaker has an independent trip as well as a rejection tab feature. These breakers are in load centers and should be installed only in panel positions that have notched bus stabs that accommodate the rejection clip. Also, these circuit breakers are UL approved genuine replacement breakers for load centers.
    Breaker Breaker Breaker Breaker Breaker Breaker Breaker Breaker Breaker Breaker Breaker
    20A 30A 40A 50A 60A 80A 100A 125A 150A 175A 200A
    Amperage 20 Amp 30 Amp 40 Amp 50 Amp 60 Amp 80 Amp 100 Amp 125 Amp 150 Amp 175 Amp 200 Amp
    No of Poles 2 2 2 2 2 2 2 2 2 2 2
    Trip type Independent Independent Independent Independent Independent Independent Independent Independent Independent Independent Independent
    Interrupt rating 10 kAIC 10 kAIC 10 kAIC 10 kAIC 10 kAIC 10 kAIC 25 kAIC 25 kAIC 25 kAIC 25 kAIC 25 kAIC
    Voltage rating 120/240V 120/240V 120/240V 120/240V 120/240V 120/240V 120/240V 120/240V 120/240V 120/240V 120/240V
    Wire size 14-4 AWG Cu/Al 14-4 AWG Cu/Al 14-4 AWG Cu/Al 14-4 AWG Cu/Al 14-4 AWG Cu/Al 14-4 AWG Cu/Al 14-4 AWG Cu/Al 14-4 AWG Cu/Al 14-4 AWG Cu/Al 14-4 AWG Cu/Al 14-4 AWG Cu/Al
    Additional feature Rejection tab feature Rejection tab feature Rejection tab feature Rejection tab feature Rejection tab feature Rejection tab feature Rejection tab feature Rejection tab feature Rejection tab feature Rejection tab feature Rejection tab feature
