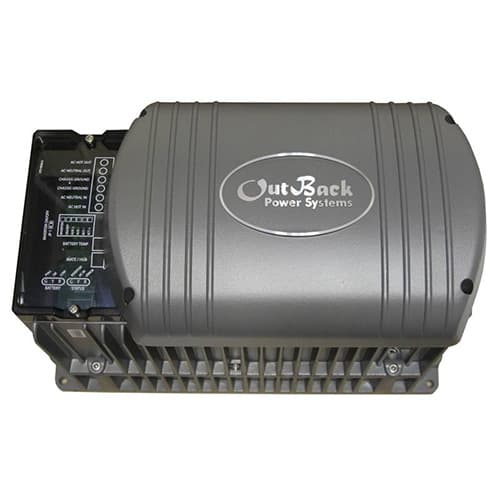

Outback Power, GFX1312, Grid-interactive sealed inverter/charger, 1.3 kW, 12 VDC, 120 VAC, 60 Hz, 70 Amp charger, 60 Amp AC input (DC Cover and RTS included)

  • Model: GFX1312
  • Manufactured by: Outback Power
  • Condition: New
  • Estimated Delivery: Jul 18th - Jul 24th
  • In Stock
Price:

$1,446.12 $1,112.40

Would you like to add these items to your order?
Outback Power, HUB10.3, Ten Port with Sub-Phase Master Stacking, up to 10 devices and one MATE  $498.28 $383.29

Outback Power, MATE3s, Universal version required by (V)FXR and GS inverters, Dark gray square housing with Ethernet port  $684.45 $526.50

Outback Power, HUB4, Four Port, up to 4 devices and one MATE  $266.48 $204.98

Manufacturer Info

The OutBack true sine wave GFX International SeriesInverter/Charger is a competitive power solution designed forapplications with lower power demands. Incorporating a DC to ACsine wave inverter, battery charger and AC transfer relay housed withina die-cast aluminum chassis, the International Series GFXInverter/Chargers give you the ability to sell solar, wind or hydropower back to the utility grid while providing instantaneous backuppower in the event of a utility outage.

The GFX International Series built-in transfer relay automaticallydisconnects your loads from the utility grid and powers them from theinverter in the event of an outage, allowing you to continue using yoursolar and battery backup power, unlike traditional grid-tie systems. Forareas that frequently experience power instability such as surges,spikes or brownouts, or where standard inverters have trouble syncing tothe utility grid, the GFX International Series grid reconnect timershave been shortened to reduce overall sell-back downtime and improvesystem functionality.

Intelligent multi-stage battery charging prolongs the life of yourbatteries and built-in networked communications allow for simultaneouscommunications of up to ten OutBack Power components within the system.The exclusive modular system architecture means that increased poweroutput is just an additional inverter/charger away. Our GFXInternational Series uses a sealed chassis that can operate in theharshest environmental conditions such as high humidity and corrosivesalt air. OutBack Power inverter/chargers are the only choice when youneed a true sine wave, powerful, modular and reliable power solution foryour home, business or extreme application.

Product Highlights
  • Grid-tie, backup or standalone power
  • Sine wave output
  • Intelligent battery charging with generator support
  • High surge and charger ratings
  • Sealed chassis for harsh environments
  • Field serviceable
  • Product Specifications | Download
  • Product Manual | Download
 230Vac 50Hz Sealed Models120Vac 60Hz Sealed Models
GFX1312EGFX1424EGFX1448EGFX1312GFX1424GFX1548
Nominal DC Input Voltage12 Vdc24 Vdc48 Vdc12 Vdc24 Vdc48 Vdc
Continuous Power Rating at 25C1300 VA1400 VA1400 VA1300 VA1400 VA1500 VA
AC Voltage/Frequency230 Vac 50 Hz230 Vac 50 Hz230 Vac 50 Hz120 Vac 60 Hz120 Vac 60 Hz120 Vac 60 Hz
Continuous AC RMS Output at 25C5.65 Aac6.09 Aac6.09 Aac10.83 Aac11.66 Aac12.5 Aac
Full Idle Power18 Watts18 Watts18 Watts18 Watts18 Watts18 Watts
Search6 Watts6 Watts6 Watts6 Watts6 Watts6 Watts
Typical Efficiency90%92%93%90%92%93%
Typical Total Harmonic Distortion2%2%2%2%2%2%
Maximum5%5%5%5%5%5%
Output Voltage Regulation2%2%2%2%2%2%
Peak Maximum Output Current28 Aac28 Aac28 Aac56 Aac56 Aac56 Aac
RMS20 Aac20 Aac20 Aac40 Aac40 Aac40 Aac
Surge AC Overload Capability4600 VA4600 VA4600 VA4600 VA4600 VA4600 VA
5 Second2900 VA2900 VA2900 VA2900 VA2900 VA2900 VA
30 Minutes1800 VA2000 VA2000 VA1800 VA2000 VA2000 VA
AC Input Current Maximum30 Aac30 Aac30 Aac60 Aac60 Aac60 Aac
AC Input Voltage Range (Adjustable)140 to 280 Vac140 to 280 Vac140 to 280 Vac70 to 140 Vac70 to 140 Vac70 to 140 Vac
AC Input Frequency Range45 to 55 Hz45 to 55 Hz45 to 55 Hz54 to 66 Hz54 to 66 Hz54 to 66 Hz
DC Input Voltage Range10.5 to 17.0 Vdc21.0 to 34.0 Vdc42.0 to 68.0 Vdc10.5 to 17.0 Vdc21.0 to 34.0 Vdc42.0 to 68.0 Vdc
Continuous Battery Charger Output70 Adc40 Adc20 Adc70 Adc40 Adc20 Adc
Max DC Current at Rated Power130 Adc70 Adc35 Adc130 Adc70 Adc37.5 Adc
Warranty 5 year 5 year
Unit Weight 49.6 lbs (22.5 kg) 49.6 lbs (22.5 kg)
Shipping 56.4 lbs (25.6 kg) 56.4 lbs (25.6 kg)
Unit Dimensions (H x W x L) 13 x 8.25 x 16.25" (33 x 21 x 41 cm) 12 x 8.25 x 16.25" (30 x 21 x 41 cm)
Shipping 21.75 x 13 x 22" (55 x 33 x 56 cm) 21.75 x 13 x 22" (55 x 33 x 56 cm)
