Home Analytic Systems Analytic Charge Controllers Analytic Systems, SMP-100, 100A, 24 - 72V Out, 30 - 230V IN, NON-ISO MPPT Solar Charger

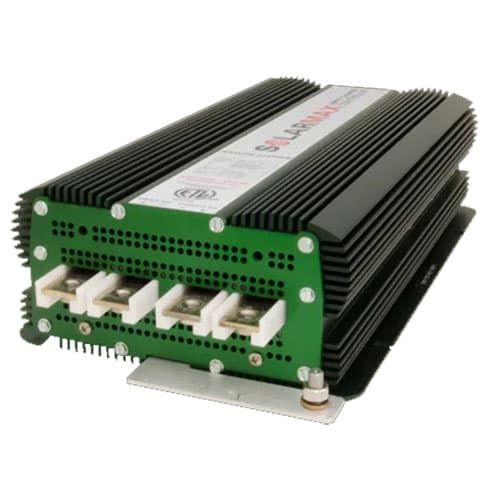

Analytic Systems, SMP-100, 100A, 24 - 72V Out, 30 - 230V IN, NON-ISO MPPT Solar Charger

Analytic Systems, SMP-100, 100A, 24 - 72V Out, 30 - 230V IN, NON-ISO MPPT Solar Charger

  • Model: SMP-100
  • Manufactured by: Analytic Systems
  • Condition: New
  • Estimated Delivery: 2 to 3 Weeks
  • Estimated Delivery: May 18th - May 24th
  • In Stock
  • Out of Stock
  • Lead Time To Ship May Vary
  • Price: $1,577.75  $1,213.65
    SMP-100 SolarMax

    100A, 24 - 48V Out, 30 - 230 V In, MPPT Solar Charger

    Features
    • Efficient and Reliable
    • MPPT charging for maximum solar panel efficiency
    • More flexibility in choice of solar array voltage
    • Three stage charging and temperature compensation for optimal battery charging effectiveness and increased battery life
    • Patented MPPT Design (Maximum Power Point Tracking)
    • Adjustable 3-Stage Charging Algorithm
    • 230 Volt Open Circuit Input Capable
    • Up to 100A Output Current
    • 97% Efficiency at 100A Out
    • Input and Output Current Sensors
    • Low Noise, EMC Tested
    • Battery Temperature Sensor included
    • 24-72VDC nominal battery voltages (programmable through PC interface)
    • UL1741 and CSA107 and CE Certification pending
    • Optional Digital Display
    • Three year parts and labour warranty
    • SMP100 Datasheet | Download
    • SMP100 Manual | Download
    The SMP100 SolarMax Charge Controller provides up to 100 amps of charging power into battery banks between 24 to 72 Volts from solar panel arrays up to 230 Volts Open Circuit. Our patented MPPT (Maximum Power Point Tracking) algorithm maximizes the power output of the solar array.

    Solarmax allows you to use a higher voltage PV array than the batteries you are charging as it is designed to step down the array voltage, allowing greater flexibility in the choice of array for your system.

    A PC communications port and software allow viewing and programming Solarmax parameters as well as data logging. A battery temperature sensor (supplied) allows programmable temperature compensation of charging voltage.
    Function Solar Charge Controller
    Conversion DC to DC
    Power Level 6000
    Input Volts 30 - 230 VDC
    Output Volts 24 - 48 VDC
    Output Amps Continuous 100
    Input/Output Isolation No
    Technology Digital
    Charging Stages 3
    Temperature Compensation Yes
    Equalize No
    Battery Banks 1
    Product Series on website SMP-100
